DN100 (4" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 228.6mm

• Hub diameter at base (C): 23.8mm

• Outside diameter (O): 228.6mm

• Hub diameter at base (C): 23.8mm

• Length through hub (X): 134.8mm

• Pitch circle diameter (K): 190.5mm

• Raised face diameter (Y): 33.3mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 157.2mm

• Bore length (B): 139.3mm

• Bore diameter (D): 25.4mm

• Number of bolt holes: 8

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

DN15 (1/2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 88.9mm

• Hub diameter at base (C): 11.1mm

• Outside diameter (O): 88.9mm

• Hub diameter at base (C): 11.1mm

• Length through hub (X): 30.2mm

• Pitch circle diameter (K): 60.4mm

• Raised face diameter (Y): 15.7mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 35.0mm

• Bore length (B): 22.3mm

• Bore diameter (D): 9.6mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

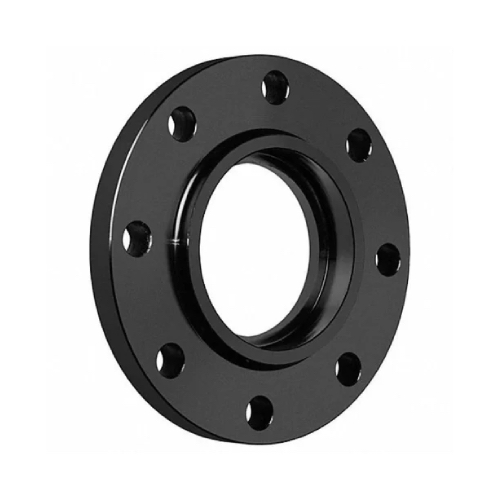

DN150 (6" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 279.4mm

• Hub diameter at base (C): 23.8mm

• Outside diameter (O): 279.4mm

• Hub diameter at base (C): 23.8mm

• Length through hub (X): 158.7mm

• Pitch circle diameter (K): 234.9mm

• Raised face diameter (Y): 36.5mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 215.9mm

• Bore length (B): 157.5mm

• Bore diameter (D): 28.6mm

• Number of bolt holes: 8

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

DN20 (3/4" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 98.5mm

• Hub diameter at base (C): 12.7mm

• Outside diameter (O): 98.5mm

• Hub diameter at base (C): 12.7mm

• Length through hub (X): 38.1mm

• Pitch circle diameter (K): 69.8mm

• Raised face diameter (Y): 15.7mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 42.9mm

• Bore length (B): 27.6mm

• Bore diameter (D): 11.1mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

DN25 (1" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 107.9mm

• Hub diameter at base (C): 14.2mm

• Outside diameter (O): 107.9mm

• Hub diameter at base (C): 14.2mm

• Length through hub (X): 49.2mm

• Pitch circle diameter (K): 79.2mm

• Raised face diameter (Y): 17.5mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 50.8mm

• Bore length (B): 34.5mm

• Bore diameter (D): 13.7mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

DN32 (1.1/4" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 117.3mm

• Hub diameter at base (C): 15.7mm

• Outside diameter (O): 117.3mm

• Hub diameter at base (C): 15.7mm

• Length through hub (X): 58.6mm

• Pitch circle diameter (K): 88.9mm

• Raised face diameter (Y): 20.5mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 63.5mm

• Bore length (B): 43.1mm

• Bore diameter (D): 14.2mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

DN40 (1.1/2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 127.0mm

• Hub diameter at base (C): 17.5mm

• Outside diameter (O): 127.0mm

• Hub diameter at base (C): 17.5mm

• Length through hub (X): 65.0mm

• Pitch circle diameter (K): 98.5mm

• Raised face diameter (Y): 22.3mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 73.1mm

• Bore length (B): 49.5mm

• Bore diameter (D): 15.7mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

DN50 (2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 152.4mm

• Hub diameter at base (C): 19.0mm

• Outside diameter (O): 152.4mm

• Hub diameter at base (C): 19.0mm

• Length through hub (X): 77.7mm

• Pitch circle diameter (K): 120.6mm

• Raised face diameter (Y): 25.4mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 91.9mm

• Bore length (B): 61.1mm

• Bore diameter (D): 17.5mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

£ 29.24 per item 29.24 GBP

Available to order Sign up for trade prices

DN65 (2.1/2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 177.8mm

• Hub diameter at base (C): 22.3mm

• Outside diameter (O): 177.8mm

• Hub diameter at base (C): 22.3mm

• Length through hub (X): 90.4mm

• Pitch circle diameter (K): 139.7mm

• Raised face diameter (Y): 28.4mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 104.6mm

• Bore length (B): 74.6mm

• Bore diameter (D): 19.0mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices

DN80 (3" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

• Outside diameter (O): 190.5mm

• Hub diameter at base (C): 23.8mm

• Outside diameter (O): 190.5mm

• Hub diameter at base (C): 23.8mm

• Length through hub (X): 107.9mm

• Pitch circle diameter (K): 152.4mm

• Raised face diameter (Y): 30.2mm

• Raised face height (RF): 1.5mm

• Hub diameter at top (R): 127.0mm

• Bore length (B): 90.6mm

• Bore diameter (D): 20.5mm

• Number of bolt holes: 4

• Material: A105N

• Rating: ASA 150

• Type: Socket weld flange (ASME B16.5)

• Standards: ASME B16.5

• Flange Face: Raised Face

• Certification Available: 3.1 BS EN 10204 Material Certification

• Alternative terminology:

• Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

• Part of our Flanges and Flanged Connections Range

See more

− +

Contact us for pricing 0.0 GBP

Available to order Sign up for trade prices
