Elbows 90°

List 600
Sort By: Name (A-Z)

Elbows 90°

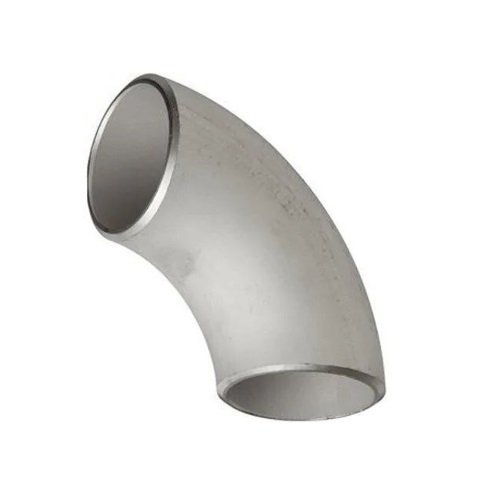

DN15 (½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 9.38 9.38 GBP
DN20 (¾" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 12.67 12.67 GBP
DN20 (¾" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 12.46 12.46 GBP
DN25 (1" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 14.42 14.42 GBP
DN25 (1" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 25.4mm
Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 12.46 12.46 GBP
DN25 (1" NB) SCHEDULE 40s WELDED ELBOW 90° SS 304
Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.91mm
Material: Stainless
Grade: 304
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
£ 33.60 33.6 GBP
DN32 (1¼" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 47.6mm
Schedule: A403 Welded
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 24.64 24.64 GBP
DN32 (1¼" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 36.40 36.4 GBP
DN40 (1½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 57.1mm
Schedule: A403 Welded
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 22.47 22.47 GBP
DN40 (1½" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 20.51 20.51 GBP
DN50 (2" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 33.39 33.39 GBP
DN50 (2" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 50.8mm
Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 57.54 57.54 GBP
DN65 (2½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 95.2mm
Schedule: A403 Welded
Weight: 1.46kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 76.02 76.02 GBP

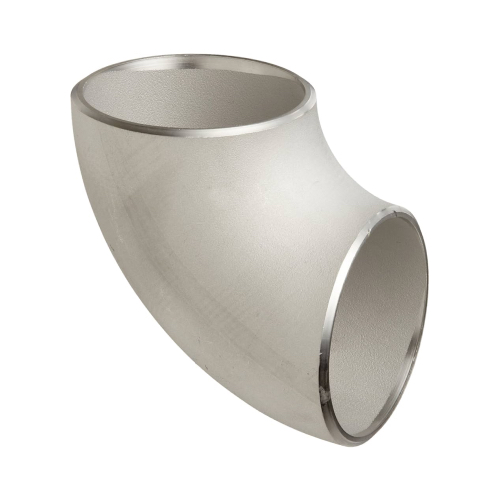

DN65 (2½" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 63.5mm
Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 59.92 59.92 GBP
DN80 (3" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 92.68 92.68 GBP
DN80 (3" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 71.54 71.54 GBP
DN100 (4" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 4.2kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 164.85 164.85 GBP
DN100 (4" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 101.6mm
Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 131.60 131.6 GBP
DN125 (5" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 190.0mm
Schedule: A403 Welded
Weight: 6.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 342.16 342.16 GBP
DN125 (5" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 127.0mm
Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 269.78 269.78 GBP
DN150 (6" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 494.76 494.76 GBP
DN150 (6" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 465.50 465.5 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 942.55 942.55 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 1,065.82 1065.82 GBP
DN250 (10" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 381.0mm
Schedule: A403 Welded
Weight: 36.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 2,789.50 2789.5 GBP
DN250 (10" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 254.0mm
Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 1,699.46 1699.46 GBP
