Mild Steel

Suits an outside diameter (OD) of: 42.4mm
Boss Connection: M10
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated

Suits Flange Size: DN32 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever (1” to 12”), Gearbox (14” to 24”)
Pressure Rating: PN16 (1” to 12”), PN10 (14” to 24”)
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved (2” to 16” sizes stocked; others available on request)
Flange Suitability:
1″ & 1¼″ – PN6/10/16 & ANSI 150
1½″ & 2″ – PN6/10/16, ANSI 150, Table D & Table E
2½″ – PN6/10/16 & ANSI 150
3″ to 14″ – PN6/10/16, ANSI 150, Table D & Table E
16″ – PN6/10/16 & ANSI 150
18″ to 24″ – PN10 or PN16 (must be specified at time of order)

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 42.4mm

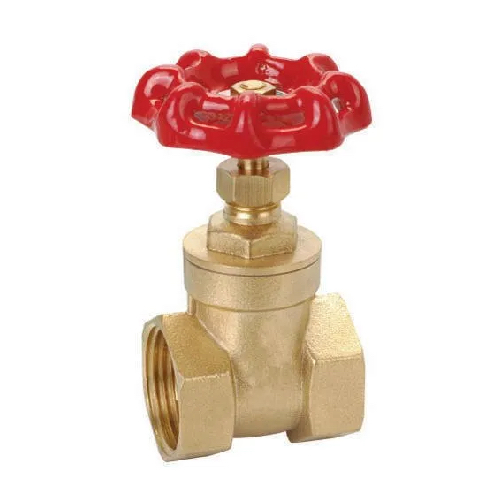

Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 42.4mm

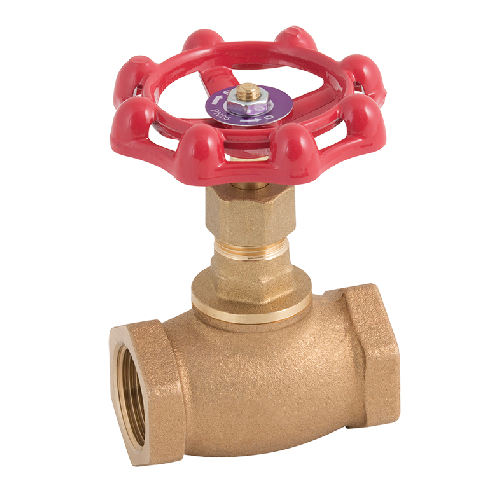

Valve Type: Globe Valve (Integral PTFE Seat)
Body Material: Bronze (BS:1400 LG2)
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +225°C
Pressure Rating: PN32

Alternative terminology: Threaded Globe Valve, NPT Valve, Globe Valve, Isolation Valve, Shut-Off Valve, Bronze Globe Valve

Part of our Isolation and Valves Range

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Tee, Equal Tee, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Half Socket, Half Coupling, Carbon Steel

Threaded: 1.1/4" NPT Male Male
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Male Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Male Male
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Male Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Female Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 1.1/4" NPT Male
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 1.1/4" NPT Male
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 1.1/4" NPT Male
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 1.1/4" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

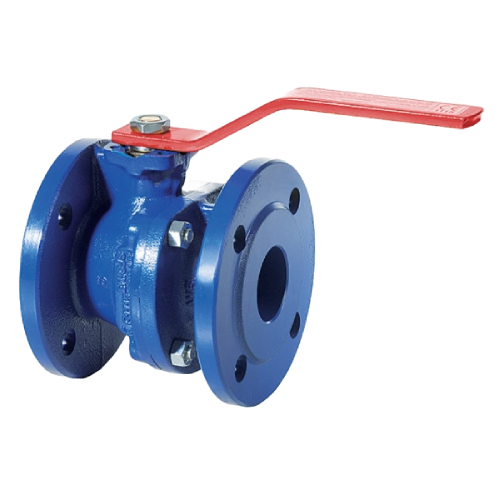

1.1/4" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 130mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

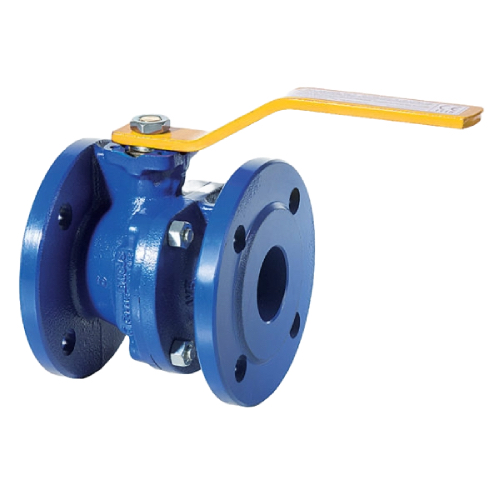

1.1/4" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16

Face to face: 130mm

Suitable for gas service.
EN331 approved design.

Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.

Part of our Isolation and Valves Range

Suits Flange Size: DN32 PN10 & PN16

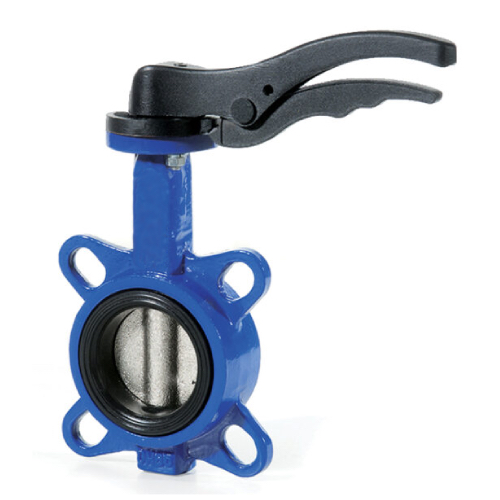

Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

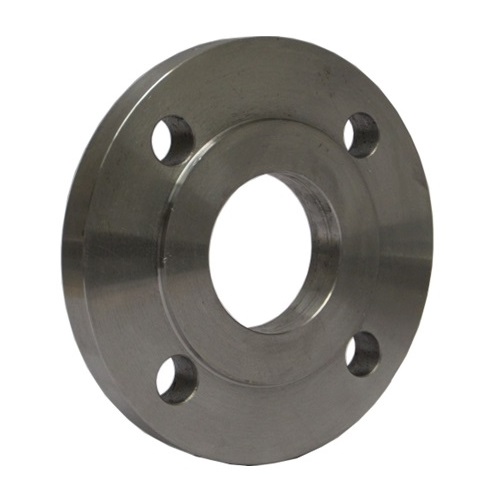

Suits an outside diameter (OD) of: 42.4mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 100mm
Flange Diameter: 140mm
Flange Thickness: 16mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Plate Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 70mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

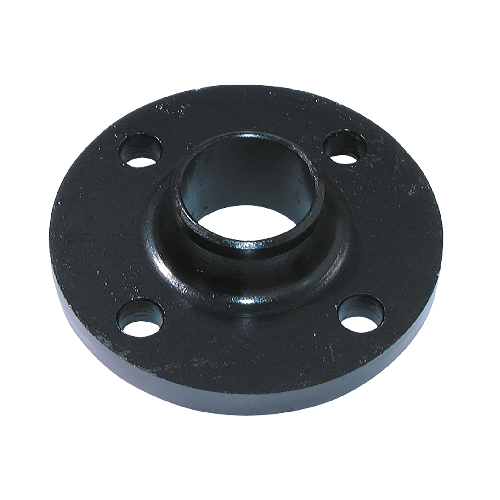

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub length (X): 58.6mm
Neck height (A): 43.1mm
Pitch circle diameter (K): 88.9mm
Hub base diameter (Y): 57.1mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 42.4mm
Wall Thickness (WT): 3.56mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 3.39 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.56mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Length: 47.6mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Cap end, End Cap, Blank Cap, Termincation Cap, Stop End

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub length (X): 58.6mm
Neck height (A): 43.1mm
Pitch circle diameter (K): 88.9mm
Hub base diameter (Y): 57.1mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 42.4mm
Wall Thickness (WT): 4.85mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 4.47 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 42.4mm
Wall Thickness (WT): 4.85mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 4.47 kg
Construction: Seamless
Finish: Hot Dip Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Connection: 1.1/4" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blanking Cap End, Carbon Steel

Connection: 1.1/4" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel
