Threaded: 1" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Tee, Equal Tee, Carbon Steel

Threaded: 1" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Threaded: 3/4" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Half Socket, Half Coupling, Carbon Steel

Threaded: 3/4" NPT Male Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Thread: 1" NPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Nipple, Straight, Connector, Carbon Steel

Threaded: ¾" NPT Male x Female Male x Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 3/4" NPT Female Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Side 1 Threaded: 1" NPT Female
Side 2 Threaded: 1" NPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Black / Self Colour
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, MXF, Carbon Steel

Threaded: 1" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Black / Self Colour
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Threaded Side One: 1" NPT Male x Female
Threaded Side Two: 1" NPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Finish: /
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, MXF, 90°, 90 Degree, Carbon Steel

Threaded: 3/4" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 3/4" NPT Female Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: ¾" NPT Female Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: ¾" NPT Female Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 3/4" NPT Female Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 3/4" NPT Male Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: ¾" NPT Male x Female Male x Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Threaded: 3/4" NPT Female Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Side 1 Threaded: 1" NPT Female
Side 2 Threaded: 1" NPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Finish: /
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, MXF, Carbon Steel

Threaded: 1" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Finish: /
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

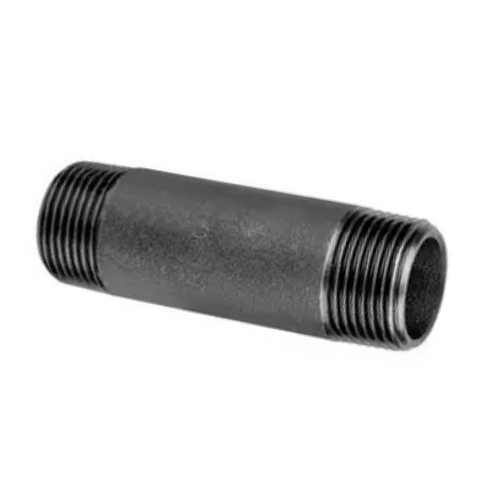

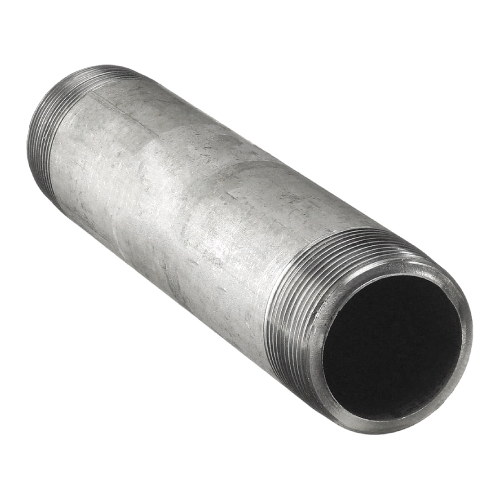

Threaded: 3/4" NPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 3/4" NPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 3/4" NPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 3/4" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 3/4" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Threaded: 3/4" NPT Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal TBE, Pipe Nipple, Carbon Steel

Flange outside diameter: 115mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 85mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 115mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 85mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

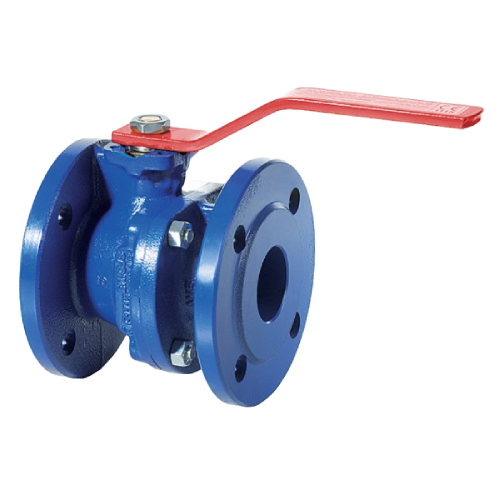

1" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 125mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

1" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16

Face to face: 125mm

Suitable for gas service.
EN331 approved design.

Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.

Part of our Isolation and Valves Range

Flanged to suit: DN25 (1" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 160mm
Temperature Range: -10°C to 300°C
Certification: Available on request

Suits Flange Size: DN25 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Flanged to suit: DN25 (1" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN40
Face to Face: 160mm
Temperature Range: -50°C to 400°C
Certification: Available on request

Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Flat Face (RF): 62mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 100mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 100mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 62mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 33.4mm
Material: CS
Grade: A105 N
Standards: ANSI / ASA300
Flange Face: Raised
Bolt Holes: 16 off 19mm Ø
PCD: 88.9mm
Flange Diameter: 123.9mm
Flange Thickness: 17.5mm
Certification Available: 3.1 Material Certification
Origin: European (EU)

Alternative terminology:
Raised Face, Weld Neck, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 160
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 4.24 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Length: 38.1mm
Schedule: STD
Weight: 0.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to End: 38.1mm
Schedule: STD
Weight: 0.35kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 22.2mm
Schedule: STD
Weight: 0.09kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 25.4mm
Schedule: STD
Weight: 0.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Hub length (X): 49.2mm
Neck height (A): 33.5mm
Pitch circle diameter (K): 79.2mm
Hub base diameter (Y): 55.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: STD
Weight: 0.15kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.38mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 2.5 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.38mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 2.5 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.38mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Length: 47.6mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Cap end, End Cap, Blank Cap, Termincation Cap, Stop End

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Length: 38.1mm
Schedule: XS
Weight: 0.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to End: 38.1mm
Schedule: XS
Weight: 0.42kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 22.2mm
Schedule: XS
Weight: 0.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 38.1mm
Schedule: XS
Weight: 0.19kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 25.4mm
Schedule: XS
Weight: 0.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Hub length (X): 49.2mm
Neck height (A): 33.5mm
Pitch circle diameter (K): 79.2mm
Hub base diameter (Y): 55.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 4.55mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 3.24 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 4.55mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 3.24 kg
Construction: Seamless
Finish: Hot Dip Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Socket Weld: 1" NB
Suits an outside diameter (OD) of: 33.4mm
Degree: 90°
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow 90, Socket Weld, SW, Carbon Steel

Connection: 3/4" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blanking Cap End, Carbon Steel

Connection: 1" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, 90°, 90 Degree, Carbon Steel

Connection: 1" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Connection: 3/4" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, Carbon Steel

Connection: 3/4" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

Connection: 3/4" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Half Socket, Half Coupling, Carbon Steel

Suits an outside diameter (OD) of: 33.4mm
Material: MS Zinc Plated (BZP)
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 33.4mm
Material: MS
Thread: M16
Thread Length: 30mm
Inside legs: 35mm
Depth: 60mm

Suits an outside diameter (OD) of: 33.4mm
Material: Mild Steel (Galvanised))
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 33.4mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated

Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 115mm (D)
Flange inside diameter: 34.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 85mm (K)
Hub height: 28mm (H1)
Neck diameter: 52mm (N2)
Raised Face Diameter: 68mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 100mm (D)
Flange inside diameter: 34.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 75mm (K)
Hub height: 24mm (H1)
Neck diameter: 50mm (N2)
Raised Face Diameter: 60mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 1" BSPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1" BSPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1" NPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1" BSPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 3/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Run threads: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm
Branch Thread: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 3/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Side 2 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm

Side 2 threaded: 3/8" BSPP Female
Side 2 suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Run threads: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm
Branch Thread: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 3/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Side 2 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm

Side 2 threaded: 3/8" BSPP Female
Side 2 suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm

Side 2 threaded: 3/8" BSPP Female
Side 2 suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Outside Diameter of Male (OD): 33.4mm
Outside Diameter of Female (OD): 17.15mm
Material: Forged Steel
Grade: A105 N
Standards: BS3799, ASME B16.11, MSS SP-97 & MSS SP-833
Ends: BSPT Threaded
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Bush, Reducing Bush, Reducer,

Side 1 threaded: 1" BSPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 3/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1" BSPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 3/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1" NPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 3/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 threaded: 1" BSPT Male
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Run threads: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255




Alternative terminology:
Reducing Heagon Nipple, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Side 1 Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm

Side 2 threaded: 1/2" BSPP Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Run threads: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.
