Nominal Bore Pipe, Fittings, Flanges & Valves

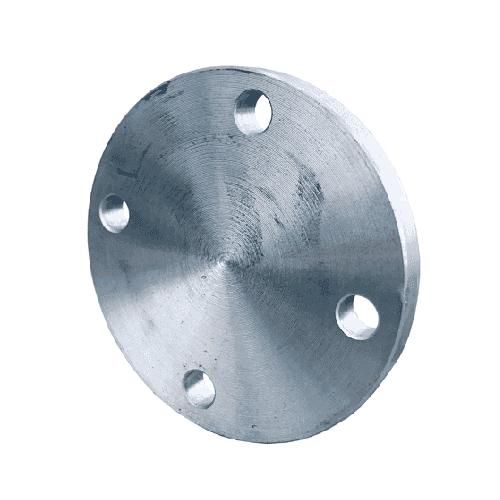

DN32 (1.1/4" NB) PN6 FF BLIND FLANGE CS S235 JR

Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 70mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing

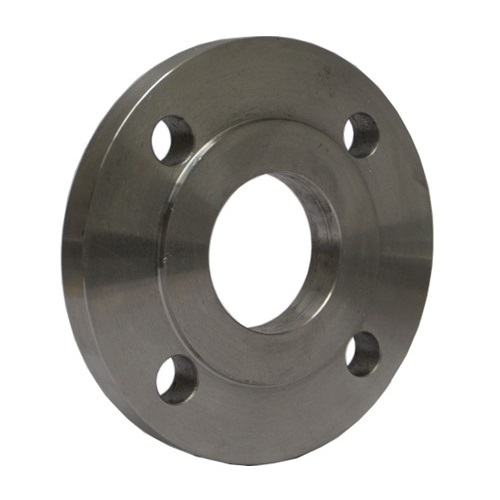

DN32 (1.1/4" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR

Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing

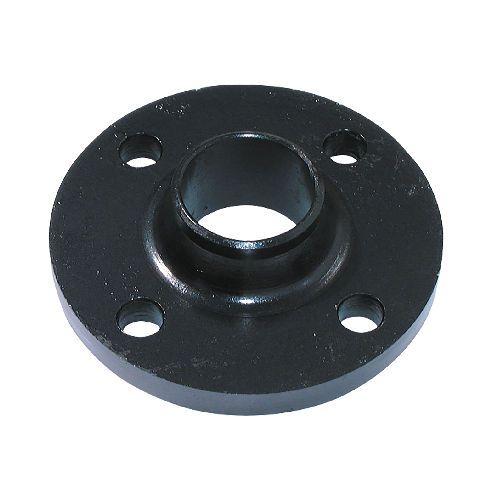

DN32 (1.1/4" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub length (X): 58.6mm
Neck height (A): 43.1mm
Pitch circle diameter (K): 88.9mm
Hub base diameter (Y): 57.1mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Contact us for pricing

Per Meter

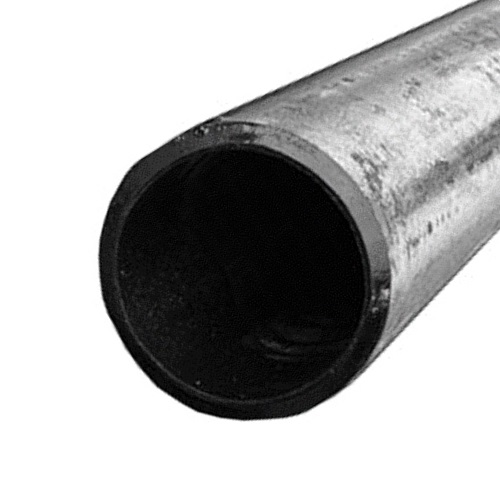

DN32 (1.1/4" NB) SCHEDULE 40/STD A106 GR.B SEAMLESS PIPE

Outside Diameter (OD): 42.4mm
Wall Thickness (WT): 3.56mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 3.39 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Carbon / Mild Steel Pipes and Tubes Range

Contact us for pricing

DN32 (1.1/4" NB) SCHEDULE 40/STD A234 WPB CAP END

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.56mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Length: 47.6mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Cap end, End Cap, Blank Cap, Termincation Cap, Stop End

Contact us for pricing

DN32 (1.1/4" NB) SCHEDULE 80 / XS ASA150 WELD NECK FLANGE CS A105N

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub length (X): 58.6mm
Neck height (A): 43.1mm
Pitch circle diameter (K): 88.9mm
Hub base diameter (Y): 57.1mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Contact us for pricing

Per Meter

DN32 (1.1/4" NB) SCHEDULE 80/XS A106 GR.B SEAMLESS PIPE

Outside Diameter (OD): 42.4mm
Wall Thickness (WT): 4.85mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 4.47 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Carbon / Mild Steel Pipes and Tubes Range

Contact us for pricing

Per Meter

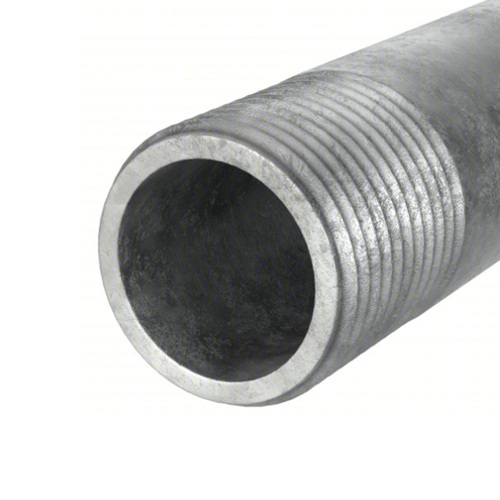

DN32 (1.1/4" NB) SCHEDULE 80/XS A106 GR.B SEAMLESS PIPE (NPT) HOT DIP GALVANISED

Outside Diameter (OD): 42.4mm
Wall Thickness (WT): 4.85mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 4.47 kg
Construction: Seamless
Finish: Hot Dip Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Carbon / Mild Steel Pipes and Tubes Range

£43.98 per metre

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) NPT 3000# FS GALVANISED ELBOW 90° A105N

Threaded: 1¼" NPT Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

£37.20 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) NPT GALVANISED 3000# FS FXF ELBOW 90° A105N

Threaded: 1¼" NPT Female Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Carbon Steel

£37.20 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 40 / STD A234 WPB EQUAL TEE

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to End: 47.6mm
Schedule: STD
Weight: 0.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£7.59 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 25.4mm
Schedule: STD
Weight: 0.14kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£1.08 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: STD
Weight: 0.17kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£2.01 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 40/ STD A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 47.6mm
Schedule: STD
Weight: 0.28kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£2.04 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 80 / XS A234 WPB EQUAL TEE

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to End: 47.6mm
Schedule: XS
Weight: 0.74kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£8.28 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 25.4mm
Schedule: XS
Weight: 0.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£1.92 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 47.6mm
Schedule: XS
Weight: 0.39kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£2.25 each

List Price – Sign in to view Trade Prices

DN32 (1¼" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 31.75mm
Schedule: XS
Weight: 0.23kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£3.24 each

List Price – Sign in to view Trade Prices

DN32 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR

Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing

DN32 PN10/PN16/PN25/PN40 RF BOSSED SLIP ON FLANGE CS S235JR

Flange outside diameter: 140mm (D)
Flange inside diameter: 43.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 100mm (K)
Hub height: 30mm (H1)
Neck diameter: 60mm (N2)
Raised Face Diameter: 78mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Contact us for pricing

DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR

Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing

DN32 PN6 RF BOSSED SLIP ON FLANGE CS S235JR

Flange outside diameter: 120mm (D)
Flange inside diameter: 43.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 90mm (K)
Hub height: 26mm (H1)
Neck diameter: 60mm (N2)
Raised Face Diameter: 70mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Contact us for pricing

DN32 X 8 (1.1/4" X 1/4" NB) BSP BLACK HEAVY WEIGHT REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

£28.35 each

List Price – Sign in to view Trade Prices

DN32 X 8 (1.1/4" X 1/4" NB) BSP BLACK MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£10.98 each

List Price – Sign in to view Trade Prices

DN32 X 8 (1.1/4" X 1/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£6.30 each

List Price – Sign in to view Trade Prices

DN32 X 8 (1.1/4" X 1/4" NB) BSPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 8 (1.1/4" X 1/4" NB) BSPT GALVANISED FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

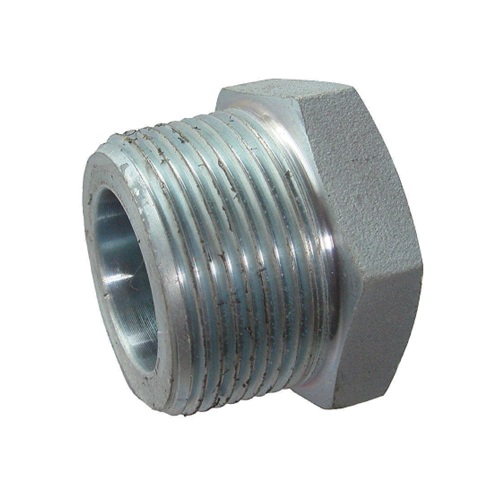

DN32 X 8 (1.1/4" X 1/4" NB) NPT 3000# FS GALVANISED HEX REDUCING BUSH A105N

Thread Side 1: 1.1/4" NPT Male
Suits an outside diameter (OD) of: 42.4mm
Thread Side 2: 1/4" NPT Female
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Reducing Bush, MXF, Hex Bush, Carbon Steel

£21.60 each

List Price – Sign in to view Trade Prices

DN32 X 8 (1.1/4" X 1/4" NB) NPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" NPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 10 (1.1/4" X 3/8" NB) BSP BLACK MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£3.99 each

List Price – Sign in to view Trade Prices

DN32 X 10 (1.1/4" X 3/8" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£4.98 each

List Price – Sign in to view Trade Prices

DN32 X 10 (1.1/4" X 3/8" NB) BSPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 10 (1.1/4" X 3/8" NB) BSPT GALVANISED FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 10 (1.1/4" X 3/8" NB) NPT 3000# FS GALVANISED HEX REDUCING BUSH A105N

Thread Side 1: 1.1/4" NPT Male
Suits an outside diameter (OD) of: 42.4mm
Thread Side 2: 3/8" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Reducing Bush, MXF, Hex Bush, Carbon Steel

£21.60 each

List Price – Sign in to view Trade Prices

DN32 X 10 (1.1/4" X 3/8" NB) NPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" NPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) BSP BLACK FORGED STEEL REDUCING HEX NIPPLE A105N

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) BSP BLACK HEAVY WEIGHT REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

£28.35 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP BLACK MALLEABLE IRON REDUCING BRANCH TEE

Run threads: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

£6.93 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP BLACK MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£2.94 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP BLACK MALLEABLE IRON REDUCING HEX NIPPLE

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

£5.10 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP BLACK MALLEABLE IRON REDUCING SOCKET

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 1/2" BSPP Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

£3.84 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP GALVANISED FORGED STEEL REDUCING HEX NIPPLE A105N

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) BSP GALVANISED MALLEABLE IRON REDUCING BRANCH TEE

Run threads: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

£7.47 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£3.12 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP GALVANISED MALLEABLE IRON REDUCING HEX NIPPLE

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

£7.29 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP GALVANISED MALLEABLE IRON REDUCING SOCKET

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 1/2" BSPP Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

£5.40 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSP GALVANISED MALLEABLE IRON REDUCING SOCKET

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 1/2" BSPP Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

£5.40 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) BSPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) BSPT BLACK FS REDUCING SOCKET A105N

Side 1 threaded: 1.1/4" BSPT Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 1/2" BSPT Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) BSPT GALVANISED FS REDUCING SOCKET A105N

Side 1 threaded: 1.1/4" BSPT Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 1/2" BSPT Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) BSPT GALVANISED FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) NPT 3000# FS GALVANISED HEX REDUCING BUSH A105N

Thread Side 1: 1.1/4" NPT Male
Suits an outside diameter (OD) of: 42.4mm
Thread Side 2: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Reducing Bush, MXF, Hex Bush, Carbon Steel

£19.95 each

List Price – Sign in to view Trade Prices

DN32 X 15 (1.1/4" X 1/2" NB) NPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" NPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) NPT BLACK FORGED STEEL REDUCING HEX NIPPLE A105N

Side 1 Thread: 1.1/4" NPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) NPT BLACK FS REDUCING SOCKET A105N

Side 1 threaded: 1.1/4" NPT Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 1/2" NPT Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) NPT GALVANISED BLACK FS REDUCING SOCKET A105N

Side 1 threaded: 1.1/4" NPT Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 1/2" NPT Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) NPT GALVANISED FORGED STEEL REDUCING HEX NIPPLE A105N

Side 1 Thread: 1.1/4" NPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 15 (1.1/4" X 1/2" NB) SW BLACK FS REDUCING SOCKET A105N

Connection side: 1 : 1.1/4" Socket Weld (SW)
Connection side 1 suits an outside: diameter (OD) of: 42.4mm

Connection side: 2 : 1/2" Socket Weld (SW)
Connection side 2 suits an outside: diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, , Socket Weld, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) BSP BLACK FORGED STEEL REDUCING HEX NIPPLE A105N

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) BSP BLACK HEAVY WEIGHT REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

£28.35 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP BLACK MALLEABLE IRON REDUCING BRANCH TEE

Run threads: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Branch Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

£5.07 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP BLACK MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£2.37 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP BLACK MALLEABLE IRON REDUCING HEX NIPPLE

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

£5.13 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP BLACK MALLEABLE IRON REDUCING SOCKET

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 3/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

£3.48 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP GALVANISED FORGED STEEL REDUCING HEX NIPPLE A105N

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING BRANCH TEE

Run threads: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Branch Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

£7.68 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

£3.21 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING HEX NIPPLE

Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

£6.21 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING SOCKET

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 3/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

£4.71 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING SOCKET

Side 1 threaded: 1.1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 3/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

£4.71 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) BSPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) BSPT BLACK FS REDUCING SOCKET A105N

Side 1 threaded: 1.1/4" BSPT Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 3/4" BSPT Female
Side 2 suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) BSPT GALVANISED FS REDUCING SOCKET A105N

Side 1 threaded: 1.1/4" BSPT Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 3/4" BSPT Female
Side 2 suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) BSPT GALVANISED FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) NPT 3000# FS GALVANISED HEX REDUCING BUSH A105N

Thread Side 1: 1.1/4" NPT Male
Suits an outside diameter (OD) of: 42.4mm
Thread Side 2: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Reducing Bush, MXF, Hex Bush, Carbon Steel

£19.95 each

List Price – Sign in to view Trade Prices

DN32 X 20 (1.1/4" X 3/4" NB) NPT BLACK FORGED STEEL REDUCING BUSH

Side 1 threaded: 1.1/4" NPT Male
Side 1 suits an outside diameter (OD) of: 42.4mm
Side 2 threaded: 3/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) NPT BLACK FORGED STEEL REDUCING HEX NIPPLE A105N

Side 1 Thread: 1.1/4" NPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 3/4" NPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Contact us for pricing

DN32 X 20 (1.1/4" X 3/4" NB) NPT BLACK FS REDUCING SOCKET A105N

Side 1 threaded: 1.1/4" NPT Female
Side 1 suits an outside diameter (OD) of: 42.4mm

Side 2 threaded: 3/4" NPT Female
Side 2 suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Contact us for pricing

Account FORMS

Search our pipework store

Nominal Bore

Nominal Bore
