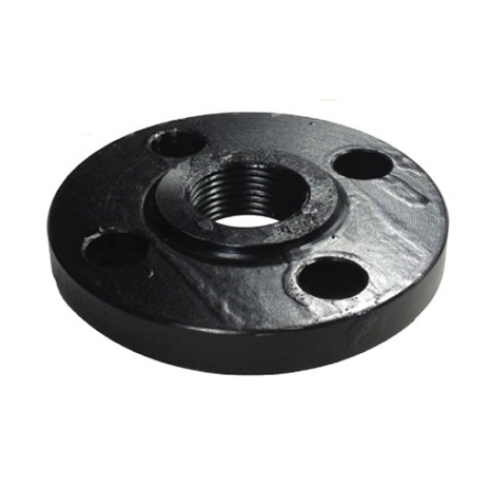

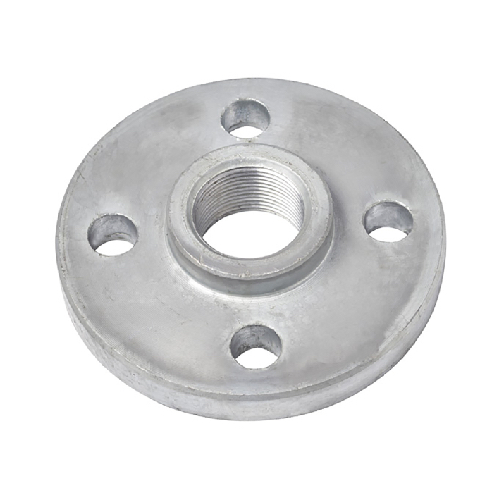

Flange outside diameter: 90mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 60mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 90mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 60mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 75mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 50mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 75mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 50mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

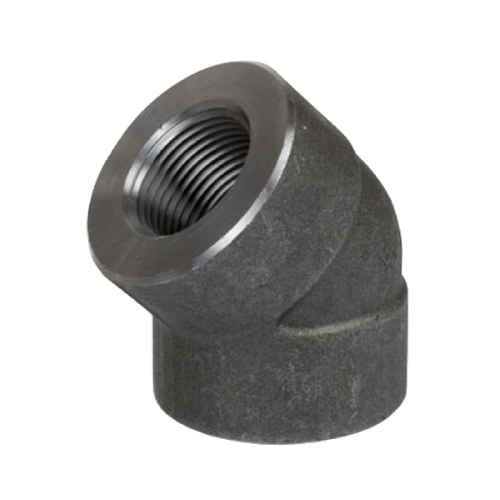

Thread: ⅜" BSPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

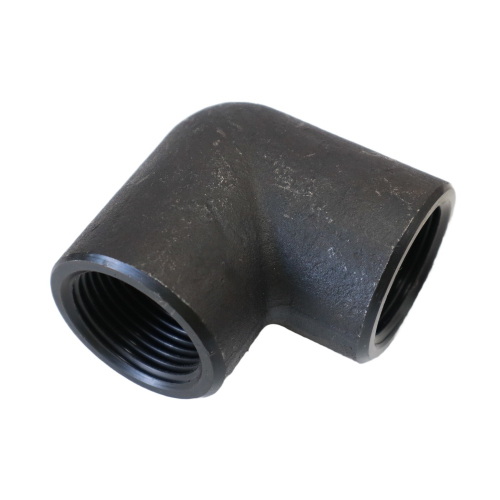

Thread: ⅜" BSPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

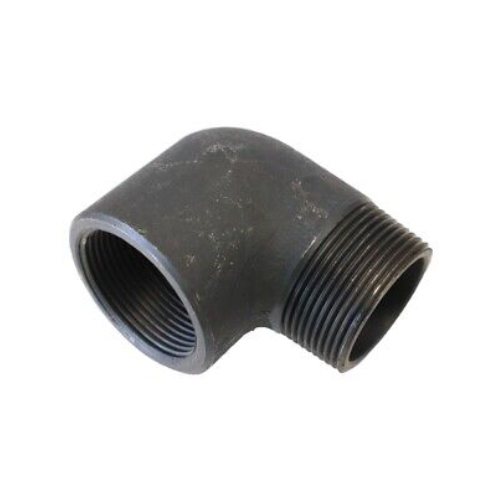

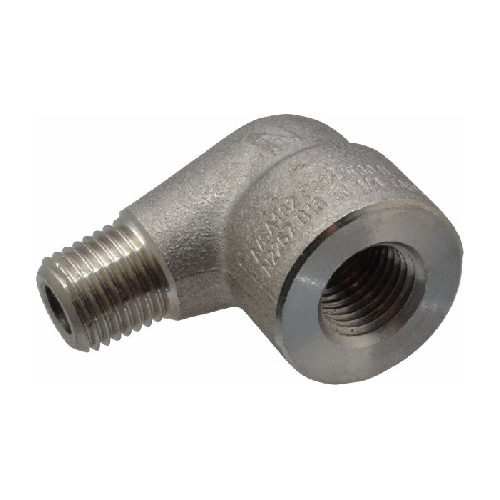

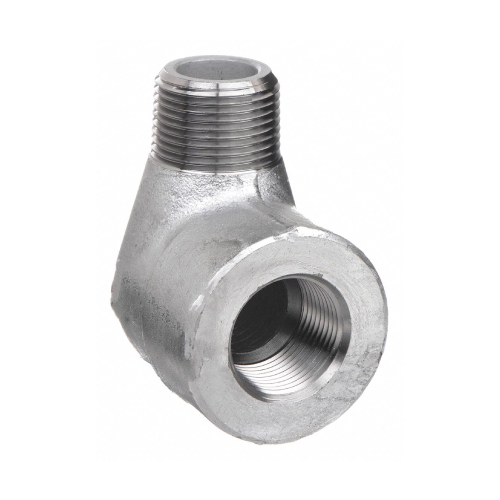

Thread: ⅜" BSPT Male x Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

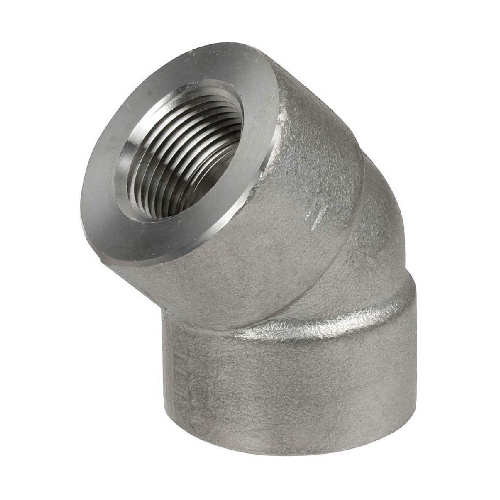

Thread: ⅜" BSPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

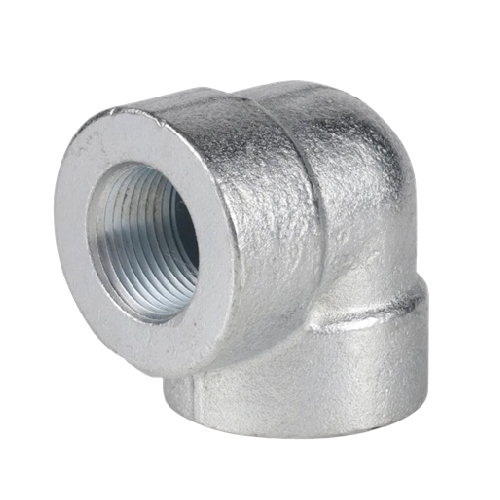

Thread: ⅜" BSPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ⅜" BSPT Male x Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: ⅜" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

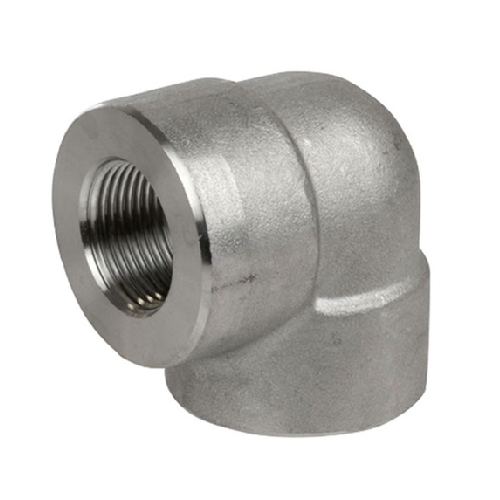

Thread: ⅜" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ⅜" NPT Male x Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: ⅜" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: ⅜" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ⅜" NPT Male x Female
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

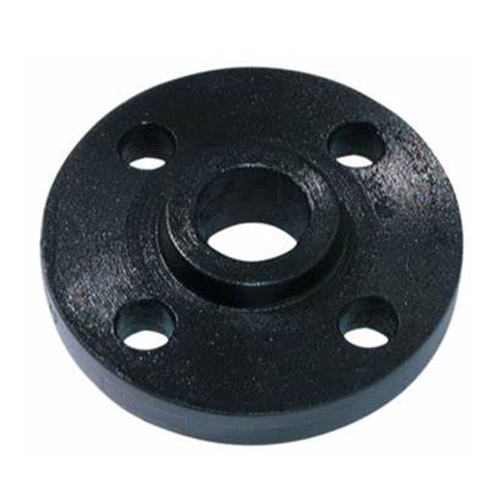

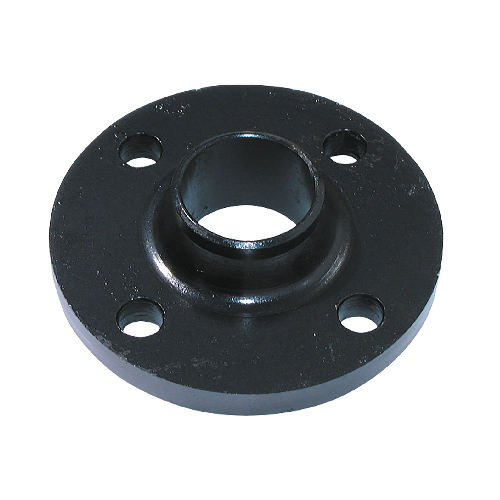

Flange outside diameter: 90mm (D)
Flange inside diameter: 18.0mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 60mm (K)
Hub height: 22mm (H1)
Neck diameter: 30mm (N2)
Raised Face Diameter: 40mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 75mm (D)
Flange inside diameter: 18.0mm (B1)
Flange thickness (C2): 12mm
Pitch Circle Diameter (PCD): 50mm (K)
Hub height: 20mm (H1)
Neck diameter: 25mm (N2)
Raised Face Diameter: 35mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

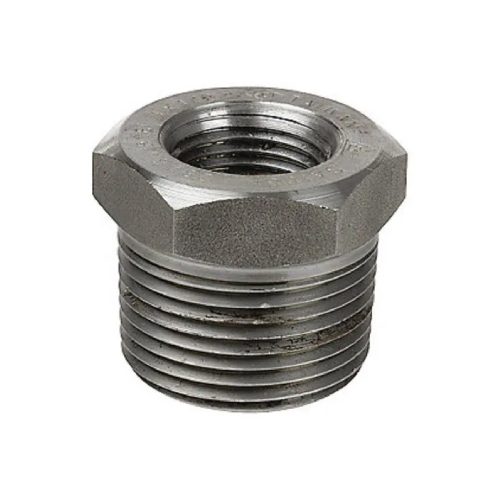

Side 1 threaded: 3/8" BSPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

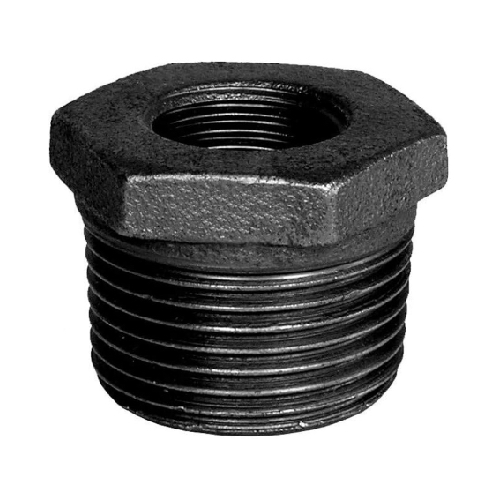

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

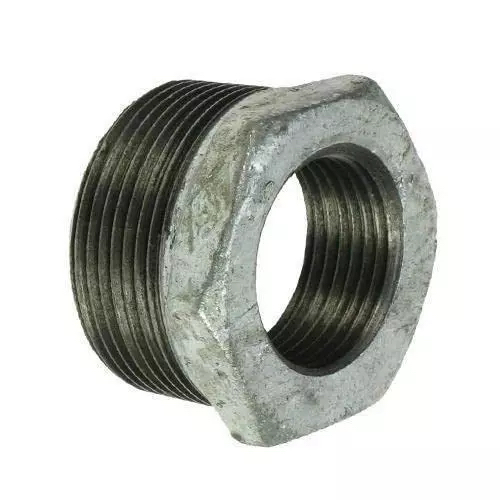

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3/8" BSPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

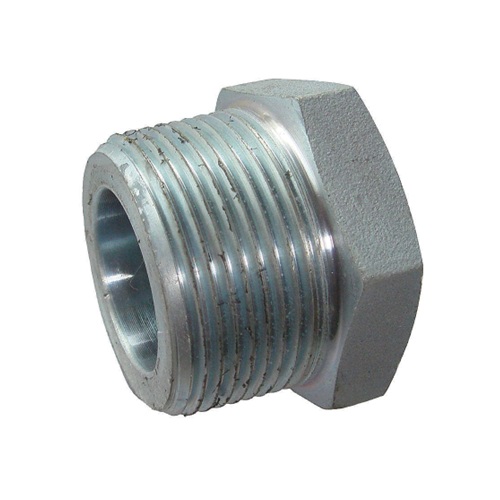

Side 1 threaded: 3/8" BSPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/8" NPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/8" BSPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3/8" BSPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/8" BSPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/8" NPT Male
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255




Alternative terminology:
Reducing Heagon Nipple, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

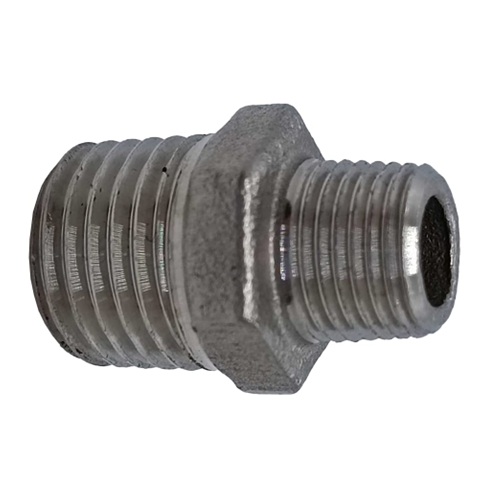

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

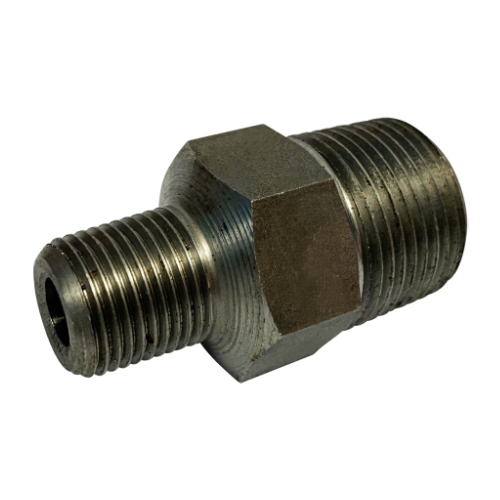

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

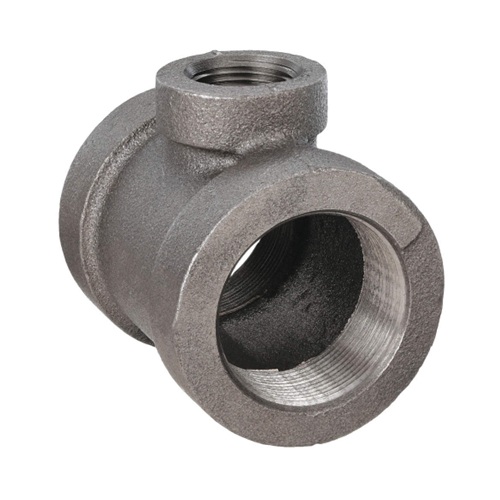

Run threads: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.12mm
Branch Thread: 1/4" BSPP Female
Suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

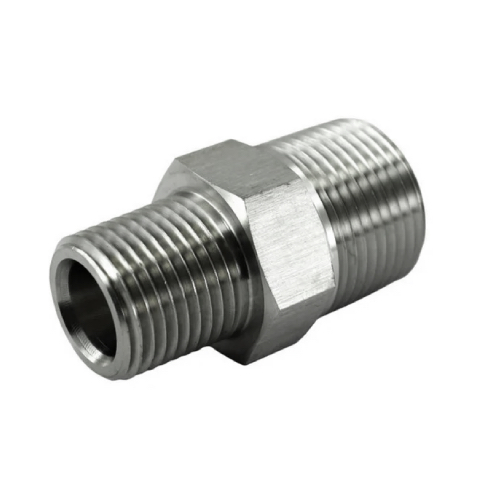

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255




Alternative terminology:
Reducing Heagon Nipple, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

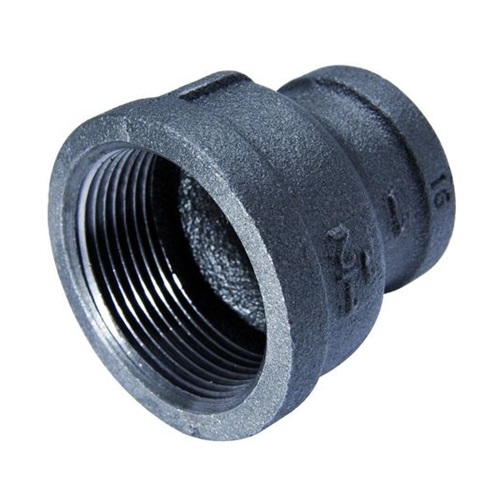

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm

Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

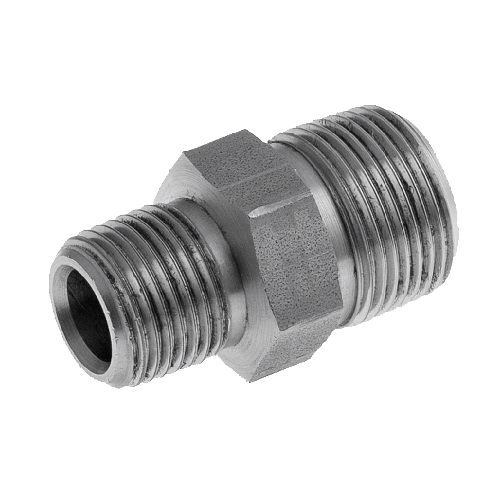

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

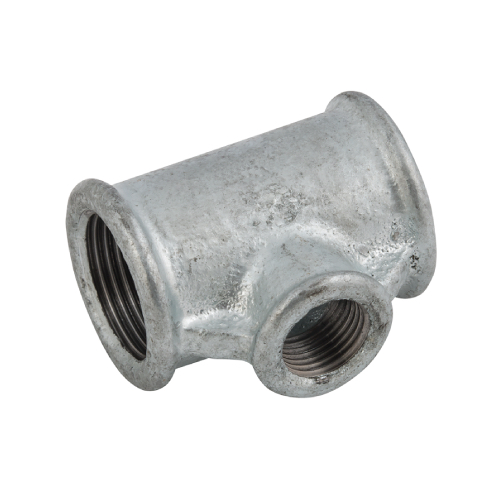

Run threads: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.12mm
Branch Thread: 1/4" BSPP Female
Suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

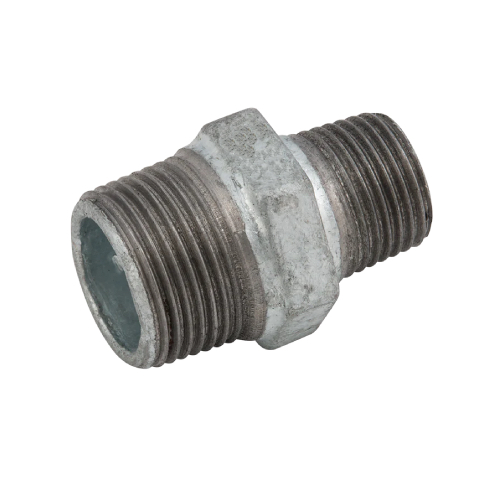

Side 1 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm

Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

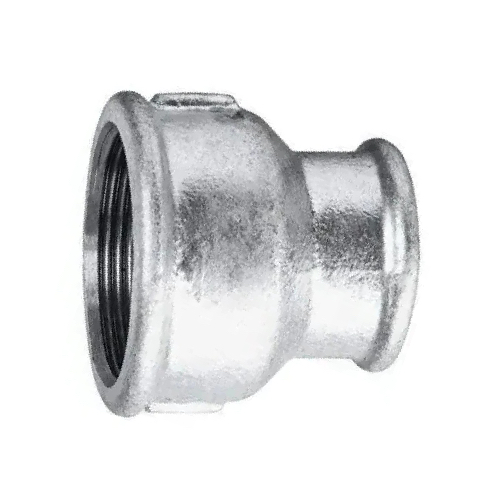

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm

Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3/8" BSPT Female
Side 1 suits an outside diameter (OD) of: 17.15mm

Side 2 threaded: 1/4" BSPT Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3/8" BSPT Female
Side 1 suits an outside diameter (OD) of: 17.15mm

Side 2 threaded: 1/4" BSPT Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 3/8" NPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/4" NPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

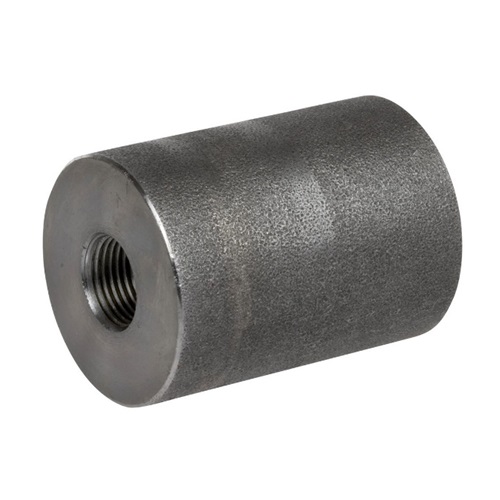

Side 1 threaded: 3/8" NPT Female
Side 1 suits an outside diameter (OD) of: 17.15mm

Side 2 threaded: 1/4" NPT Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3/8" NPT Female
Side 1 suits an outside diameter (OD) of: 17.15mm

Side 2 threaded: 1/4" NPT Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 3/8" NPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Side 2 Thread: 1/4" NPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

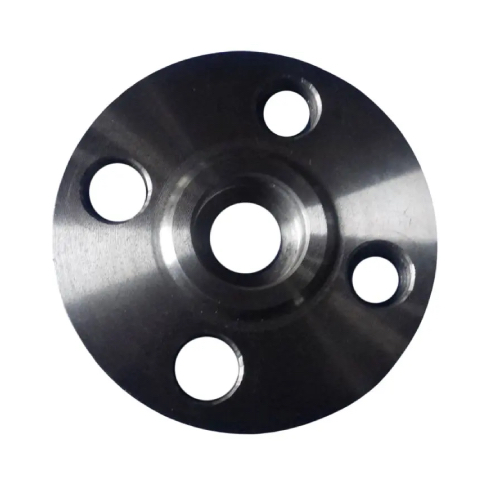

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.21kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.21kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 12.2kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.45kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.21kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.




Part of our Pipes and Tubes Range

Outside diameter (O): 88.9mm
Hub diameter at base (C): 11.1mm
Length through hub (X): 30.2mm
Pitch circle diameter (K): 60.4mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 88.9mm
Hub diameter at base (C): 11.1mm
Length through hub (X): 30.2mm
Pitch circle diameter (K): 60.4mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

1/2" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 115mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 88.9mm (O)
Flange thickness: 11.1mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 60.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 88.9mm
Hub diameter at base (C): 11.1mm
Length through hub (X): 30.2mm
Pitch circle diameter (K): 60.4mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore length (B): 22.3mm
Bore diameter (D): 9.6mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 120.6mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 120.6mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 22.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 95.2mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 66.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 23.6mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 95.2mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 66.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 23.6mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 95.0mm
Hub diameter at base (C): 12.7mm
Length through hub (X): 38.0mm
Pitch circle diameter (K): 66.5mm
Raised face diameter (Y): 21mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore length (B): 22.4mm
Bore diameter (D): 10.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 21.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 21.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore
Approval: EN331: 1998+ A1:2015
Gas installations for buildings (CPR)
WRAS Approved

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 21.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 21.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 21.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

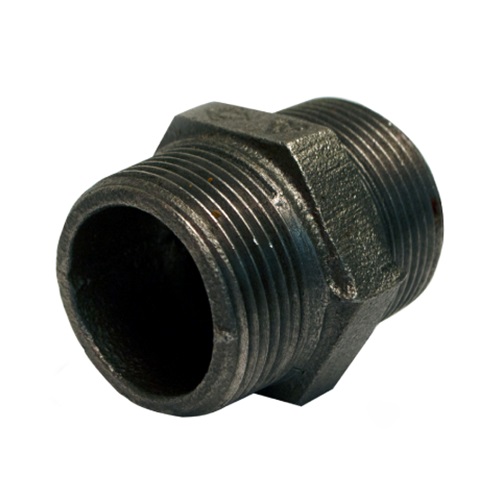

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 40mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 50mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 60mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 80mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 100mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 120mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm

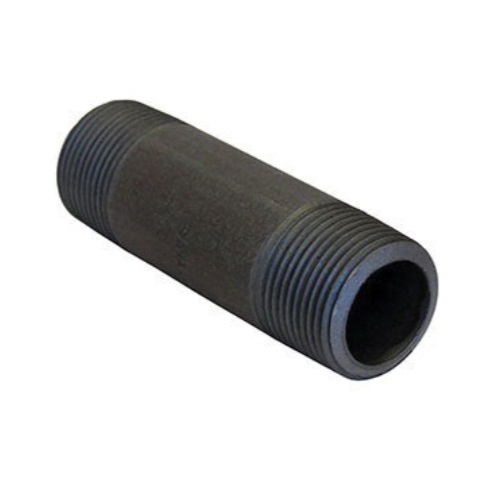

Overall Length: 150mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 180mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 200mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 250mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Overall Length: 300mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Both sides threaded: 1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:

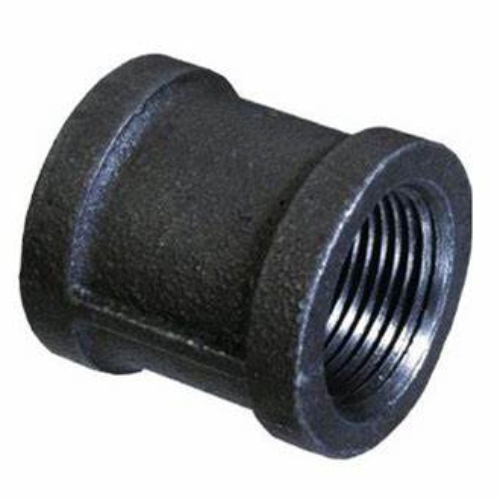

Socket, Coupling, Connector, Joiner, Straight, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Suits pipe size: 1/2" NB
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:

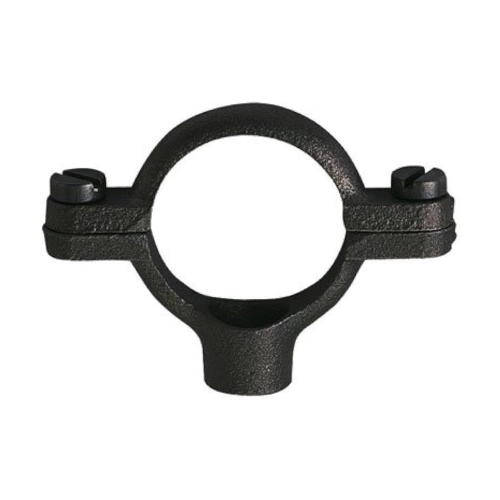

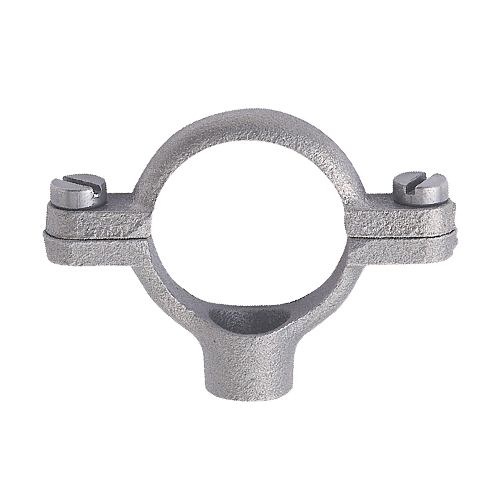

Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

All sides threaded: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:

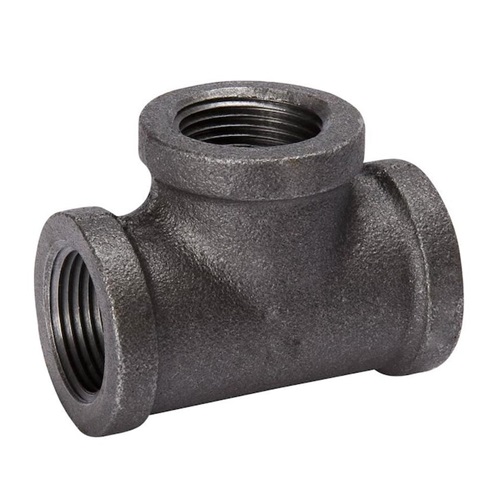

Malleable, Iron, Threaded, Screwed, Figure 130, Fittings.

Both sides threaded: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:

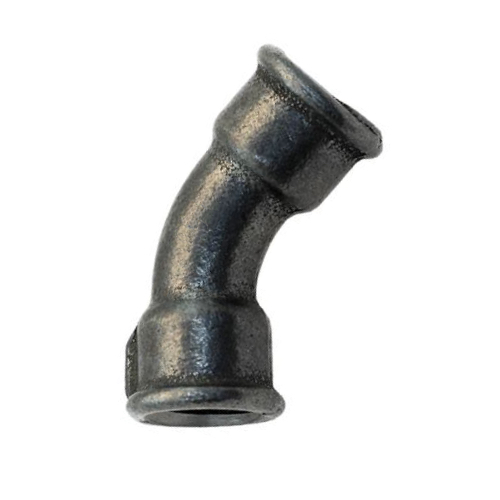

Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, 45°, Bend, Figure 41, Screwed, Fittings.

Both sides threaded: 1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:

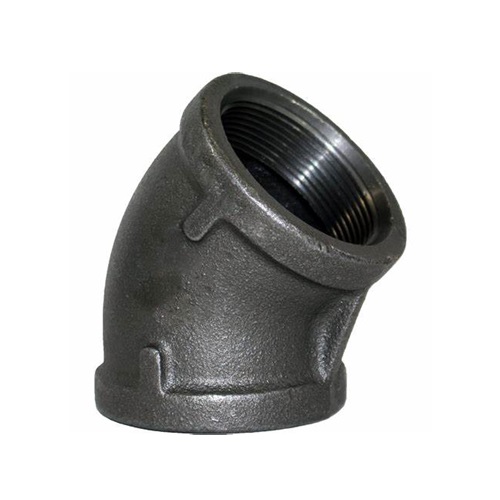

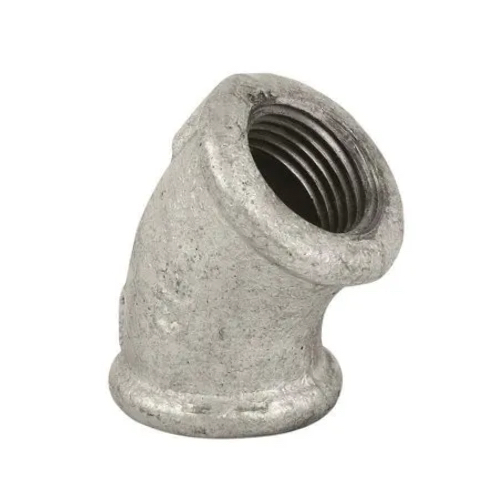

Malleable 45°, 45 Degree, Malleable Iron, Threaded, Screwed, Figure 120, Fittings.

Both sides threaded: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:

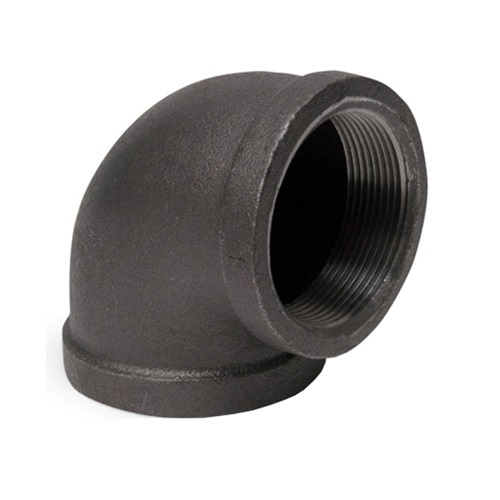

Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.

Both sides threaded: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:

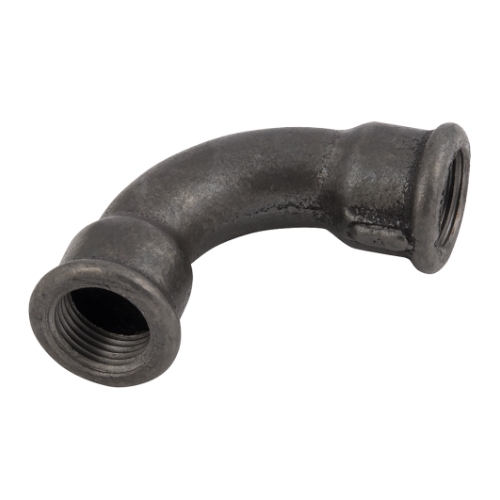

Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

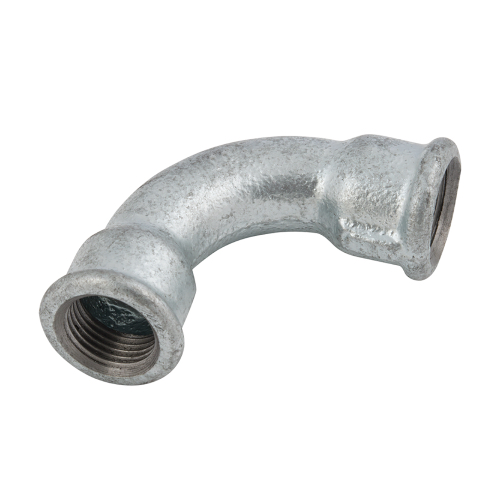

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:

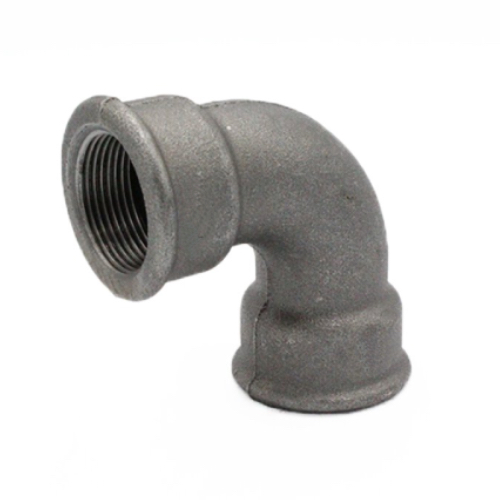

Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Short, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

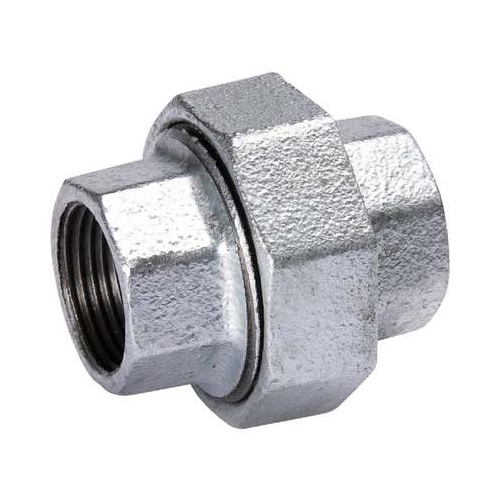

Alternative terminology:

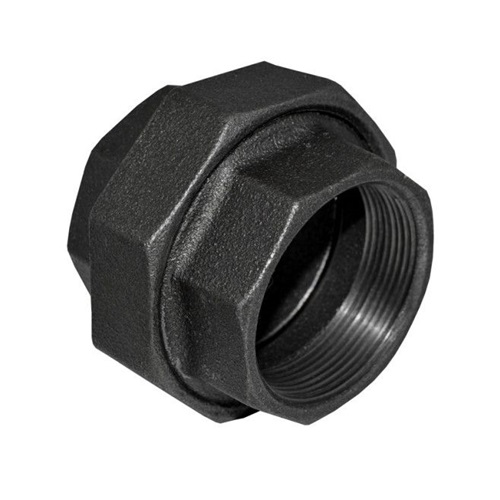

Malleable, Iron, Union, FXF, Threaded, Screwed, Figure 340, Fittings.

Both sides threaded: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed, Figure 280, Fittings.

Suits pipe size: 1/2" NB
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

Both sides threaded: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

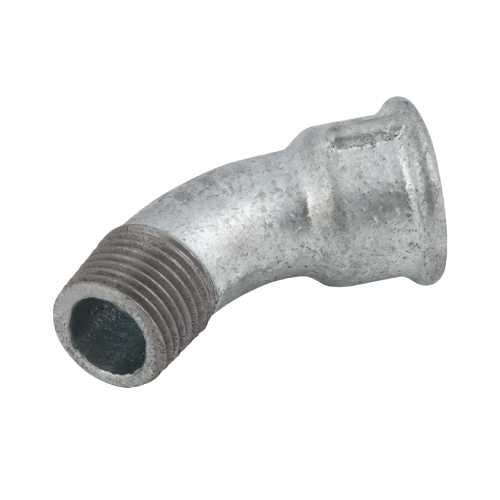

Alternative terminology:

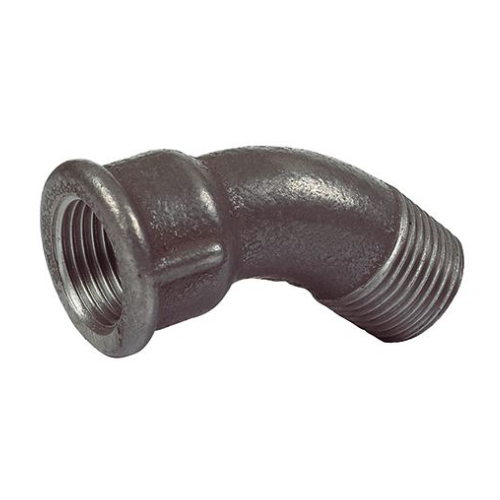

Malleable, Iron, Threaded, Sweeping, Swept, Street, MXF, MF, 45°, Bend, Figure 40, Screwed, Fittings.

Both sides threaded: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:

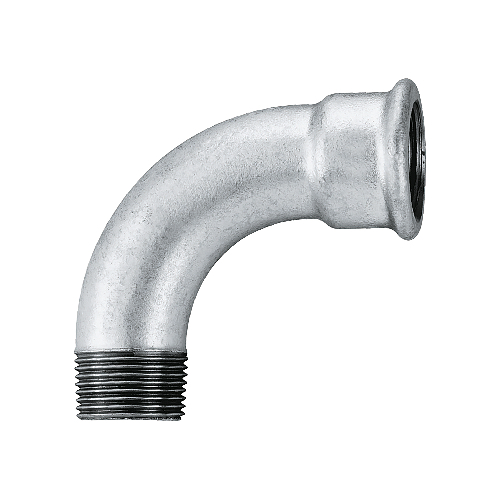

Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

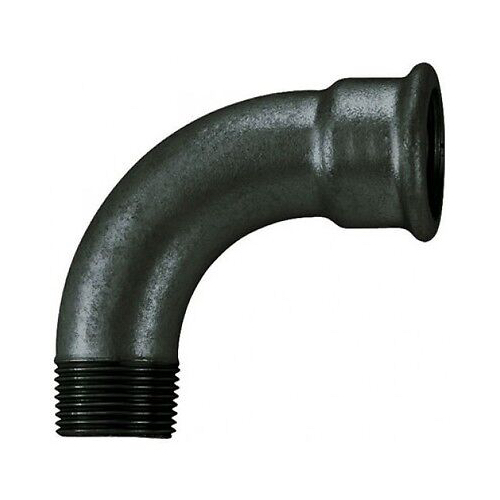

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Street, MF, MXF Bend, Figure 192, Screwed, Fittings.
