Nominal Bore Stainless Steel Pipework – 304 & 316 Grades

Integraflow offers a complete range of nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, and threaded configurations, designed for durability, corrosion resistance, and compatibility across industrial, hygienic, and mechanical applications.

List 600
Sort By: Name (A-Z)

Stainless

DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 40s
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£24.22 each
List Price – Sign in to view Trade Prices 24.22 GBP
DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 40s
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£26.88 each
List Price – Sign in to view Trade Prices 26.88 GBP
DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN15 (½" NB) SCHEDULE 40S A403 WELDED EQUAL TEE SS 304
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 40s
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£24.22 each
List Price – Sign in to view Trade Prices 24.22 GBP
DN15 (½" NB) SCHEDULE 40S A403 WELDED EQUAL TEE SS 316
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 40s
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£26.88 each
List Price – Sign in to view Trade Prices 26.88 GBP
DN15 (½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£9.38 each
List Price – Sign in to view Trade Prices 9.38 GBP
DN15 (½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£12.60 each
List Price – Sign in to view Trade Prices 12.6 GBP

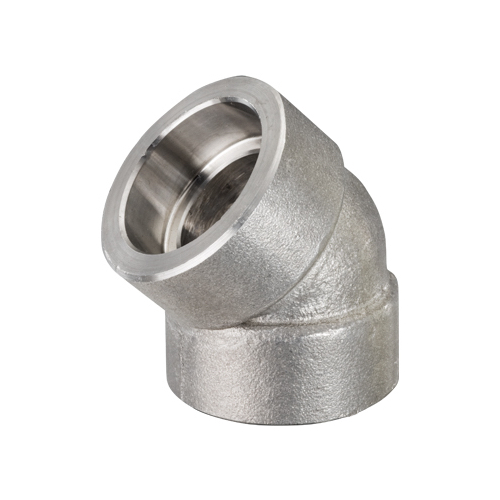

DN15 (½" NB) SW 3000# FXF ELBOW 45° SS 316
Connection: ½" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Stainless Steel
£43.47 each
List Price – Sign in to view Trade Prices 43.47 GBP

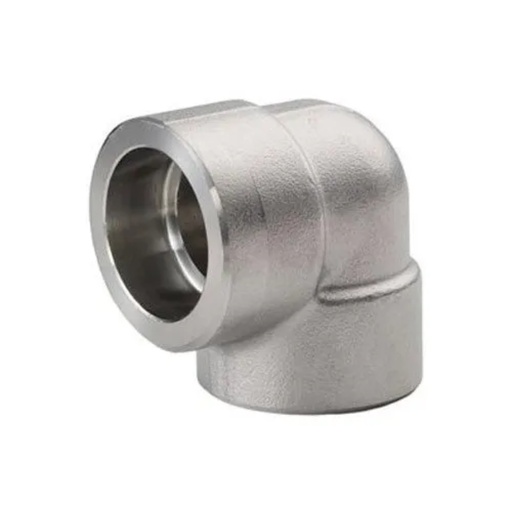

DN15 (½" NB) SW 3000# FXF ELBOW 90° SS 316
Connection: ½" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel
£43.26 each
List Price – Sign in to view Trade Prices 43.26 GBP
DN15 DIN UNION NUT SS 304 (DIN PART 1 OF 4)
Suits a DN15 DIN Union
Material: Stainless
Grade: 304

Applications: Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
£13.30 each
List Price – Sign in to view Trade Prices 13.3 GBP

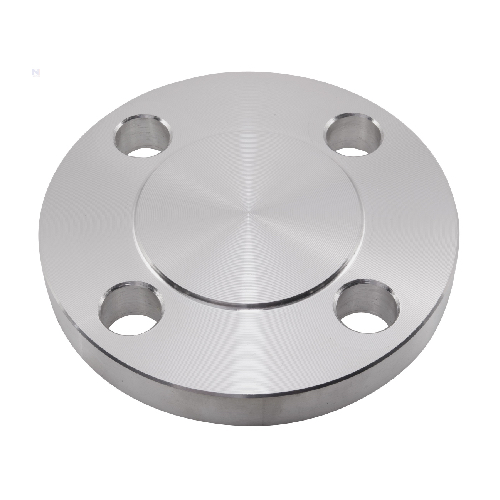

DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£30.10 each
List Price – Sign in to view Trade Prices 30.1 GBP
DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£41.23 each
List Price – Sign in to view Trade Prices 41.23 GBP

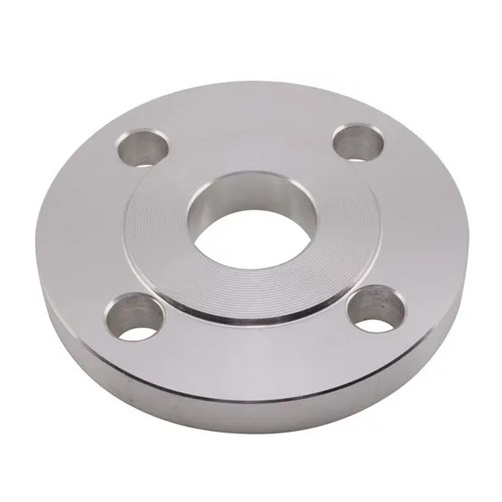

DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£25.34 each
List Price – Sign in to view Trade Prices 25.34 GBP
DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£37.24 each
List Price – Sign in to view Trade Prices 37.24 GBP

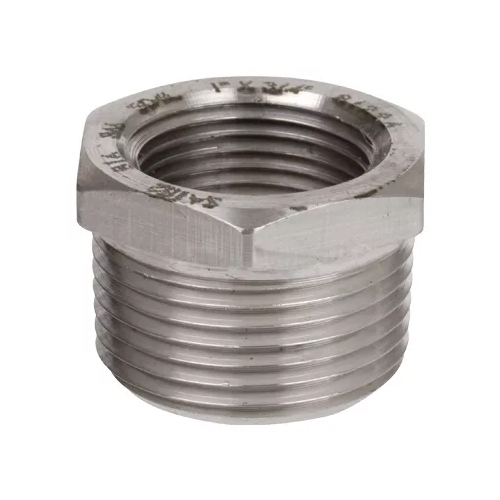

DN15 X 6 (1/2" X 1/8" NB) BSPT REDUCING BUSH SS 316
Side 1 threaded: 1/2" BSPT Male
Side 1 suits an outside diameter (OD) of: 21.3mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.
£17.57 each
List Price – Sign in to view Trade Prices 17.57 GBP
DN15 X 6 (1/2" X 1/8" NB) NPT REDUCING BUSH SS 316
Side 1 threaded: 1/2" NPT Male
Side 1 suits an outside diameter (OD) of: 21.3mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.
£25.76 each
List Price – Sign in to view Trade Prices 25.76 GBP
DN15 X 8 (1/2" X 1/4" NB) BSPT REDUCING SOCKET SS 316
Side 1 threaded: 1/2" BSPT Female
Side 1 suits an outside diameter (OD) of: 21.3mm

Side 2 threaded: 1/4" BSPT Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Forged Stainless steel
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Stainless steel, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Coupling, Reducing Socket, Coupling, Stainless Steel
Contact us for pricing 0.0 GBP

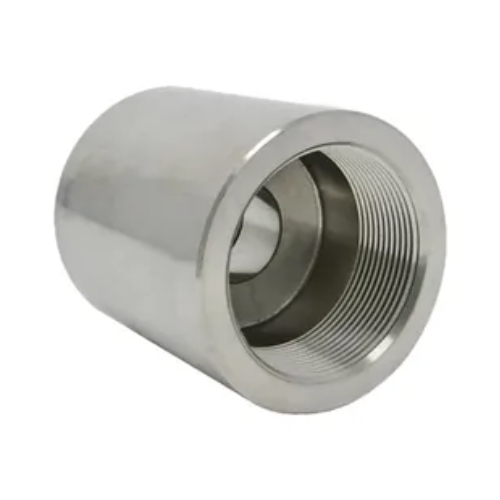

DN15 X 8 (1/2" X 1/4" NB) NPT REDUCING SOCKET SS 316
Side 1 threaded: 1/2" NPT Female
Side 1 suits an outside diameter (OD) of: 21.3mm

Side 2 threaded: 1/4" NPT Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Forged Stainless steel
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Stainless steel, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Coupling, Reducing Socket, Coupling, Stainless Steel
Contact us for pricing 0.0 GBP

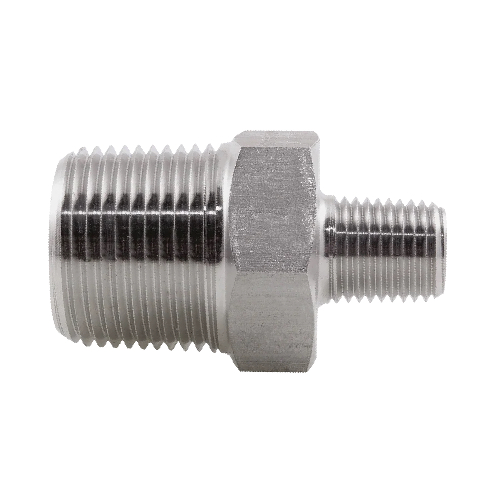

DN15 X 10 (1/2" X 3/8" NB) BSP REDUCING HEX NIPPLE SS 316
Side 1 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Side 2 Thread: 3/8" NPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Stainless Steel, Stainless Steel, Threaded, Screwed, Fittings.
£49.49 each
List Price – Sign in to view Trade Prices 49.49 GBP
DN15 X 10 (1/2" X 3/8" NB) BSP REDUCING HEX NIPPLE SS 316
Side 1 Thread: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Side 2 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Stainless Steel, Stainless Steel, Threaded, Screwed, Fittings.
£42.56 each
List Price – Sign in to view Trade Prices 42.56 GBP
DN15 X 10 (1/2" X 3/8" NB) BSP 150# REDUCING HEX BUSH SS 316
Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316
£4.69 each
List Price – Sign in to view Trade Prices 4.69 GBP
DN15 X 10 (1/2" X 3/8" NB) BSP 150# REDUCING HEX NIPPLE SS 316
Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 3/8" BSPT Male
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316
£6.09 each
List Price – Sign in to view Trade Prices 6.09 GBP

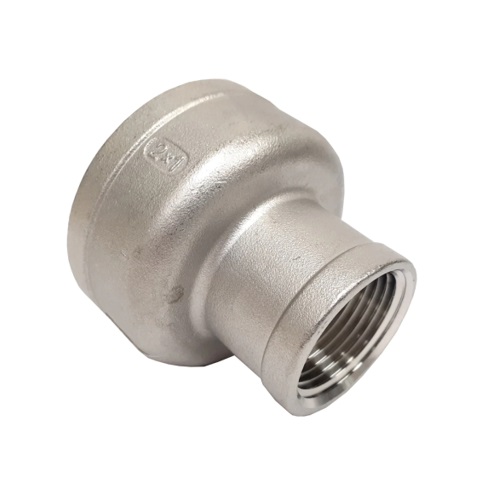

DN15 X 10 (1/2" X 3/8" NB) BSP 150# REDUCING SOCKET SS 316
Side One Thread: 1/2" BSP Female
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 3/8" BSP Female
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316
£7.35 each
List Price – Sign in to view Trade Prices 7.35 GBP
DN15 X 10 (1/2" X 3/8" NB) BSPT REDUCING BUSH SS 316
Side 1 threaded: 1/2" BSPT Male
Side 1 suits an outside diameter (OD) of: 21.3mm
Side 2 threaded: 3/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.
£21.63 each
List Price – Sign in to view Trade Prices 21.63 GBP
DN15 X 10 (1/2" X 3/8" NB) BSPT REDUCING SOCKET SS 316
Side 1 threaded: 1/2" BSPT Female
Side 1 suits an outside diameter (OD) of: 21.3mm

Side 2 threaded: 3/8" BSPT Female
Side 2 suits an outside diameter (OD) of: 17.15mm

Material: Forged Stainless steel
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Stainless steel, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Coupling, Reducing Socket, Coupling, Stainless Steel
Contact us for pricing 0.0 GBP
DN15 X 10 (1/2" X 3/8" NB) NPT REDUCING BUSH SS 316
Side 1 threaded: 1/2" NPT Male
Side 1 suits an outside diameter (OD) of: 21.3mm
Side 2 threaded: 3/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.
£21.28 each
List Price – Sign in to view Trade Prices 21.28 GBP
DN15 X 10 (1/2" X 3/8" NB) NPT REDUCING SOCKET SS 316
Side 1 threaded: 1/2" NPT Female
Side 1 suits an outside diameter (OD) of: 21.3mm

Side 2 threaded: 3/8" NPT Female
Side 2 suits an outside diameter (OD) of: 17.15mm

Material: Forged Stainless steel
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Stainless steel, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Coupling, Reducing Socket, Coupling, Stainless Steel
Contact us for pricing 0.0 GBP
DN15 X 10 (1/2" X 3/8" NB) NPT 150# REDUCING HEX BUSH SS 316
Side One Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 3/8" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316
£5.95 each
List Price – Sign in to view Trade Prices 5.95 GBP

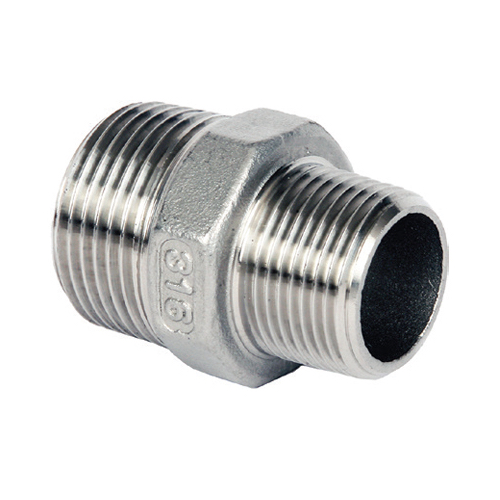

DN15 X 10 (1/2" X 3/8" NB) NPT 150# REDUCING HEX NIPPLE SS 316
Side One Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 3/8" NPT Male
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316
£7.63 each
List Price – Sign in to view Trade Prices 7.63 GBP
DN15 X 10 (1/2" X 3/8" NB) NPT 150# REDUCING SOCKET SS 316
Side One Thread: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 3/8" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316
£10.43 each
List Price – Sign in to view Trade Prices 10.43 GBP
DN15 X 10 (1/2" X 3/8" NB) SW 150# REDUCING SOCKET SS 316
Side One Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Side Two Connection: 3/8" SW (Socket Weld)
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316
£12.25 each
List Price – Sign in to view Trade Prices 12.25 GBP
DN15 X 8 (1/2" X 1/4" NB) BSP REDUCING HEX NIPPLE SS 316
Side 1 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Side 2 Thread: 1/4" NPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Stainless Steel, Stainless Steel, Threaded, Screwed, Fittings.
£41.72 each
List Price – Sign in to view Trade Prices 41.72 GBP
DN15 X 8 (1/2" X 1/4" NB) BSP REDUCING HEX NIPPLE SS 316
Side 1 Thread: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Side 2 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Stainless Steel, Stainless Steel, Threaded, Screwed, Fittings.
£41.23 each
List Price – Sign in to view Trade Prices 41.23 GBP
DN15 X 8 (1/2" X 1/4" NB) BSP 150# REDUCING HEX BUSH SS 316
Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/4" BSPP Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316
£4.90 each
List Price – Sign in to view Trade Prices 4.9 GBP
DN15 X 8 (1/2" X 1/4" NB) BSP 150# REDUCING HEX NIPPLE SS 316
Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/4" BSPT Male
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316
£6.09 each
List Price – Sign in to view Trade Prices 6.09 GBP
DN15 X 8 (1/2" X 1/4" NB) BSP 150# REDUCING SOCKET SS 316
Side One Thread: 1/2" BSP Female
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/4" BSP Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316
£7.35 each
List Price – Sign in to view Trade Prices 7.35 GBP

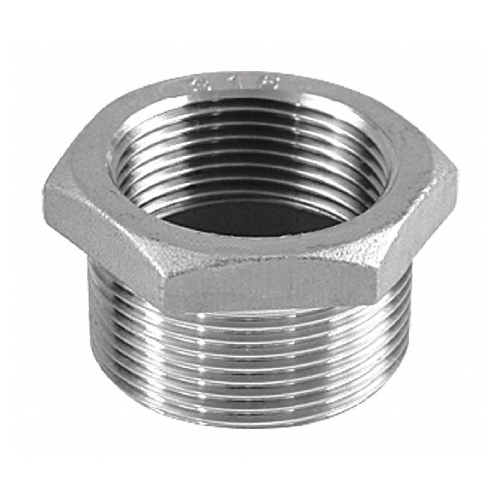

DN15 X 8 (1/2" X 1/4" NB) NPT 150# REDUCING HEX BUSH SS 316
Side One Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/4" NPT Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316
£5.81 each
List Price – Sign in to view Trade Prices 5.81 GBP
DN15 X 8 (1/2" X 1/4" NB) NPT 150# REDUCING HEX NIPPLE SS 316
Side One Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/4" NPT Male
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316
£34.65 each
List Price – Sign in to view Trade Prices 34.65 GBP
DN15 X 8 (1/2" X 1/4" NB) NPT 150# REDUCING SOCKET SS 316
Side One Thread: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/4" NPT Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316
£10.29 each
List Price – Sign in to view Trade Prices 10.29 GBP
DN15 X 8 (1/2" X 1/4" NB) SW 150# REDUCING SOCKET SS 316
Side One Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Side Two Connection: 1/4" SW (Socket Weld)
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316
£8.54 each
List Price – Sign in to view Trade Prices 8.54 GBP
DN15 X 8 (1/2" X 1/8" NB) BSP 150# REDUCING HEX BUSH SS 316
Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" BSPP Female
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316
£4.27 each
List Price – Sign in to view Trade Prices 4.27 GBP
DN15 X 8 (1/2" X 1/8" NB) BSP 150# REDUCING HEX NIPPLE SS 316
Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" BSPT Male
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316
£6.09 each
List Price – Sign in to view Trade Prices 6.09 GBP
DN15 X 8 (1/2" X 1/8" NB) BSP 150# REDUCING SOCKET SS 316
Side One Thread: 1/2" BSP Female
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" BSP Female
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316
£7.35 each
List Price – Sign in to view Trade Prices 7.35 GBP
DN15 X 8 (1/2" X 1/8" NB) NPT 150# REDUCING HEX BUSH SS 316
Side One Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" NPT Female
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316
£5.74 each
List Price – Sign in to view Trade Prices 5.74 GBP

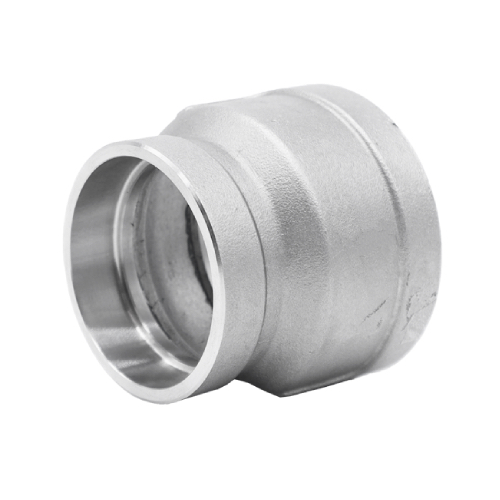

DN15 X 8 (1/2" X 1/8" NB) SW 150# REDUCING SOCKET SS 316
Side One Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Side Two Connection: 1/8" SW (Socket Weld)
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316
£9.94 each
List Price – Sign in to view Trade Prices 9.94 GBP
DN15x10 (1/2" x 3/8" NB) BSP 150# REDUCING TEE SS 316
Thread: 1/2" BSPP Female x Female, 3/8" BSPP Female Branch
Suits main run OD 21.3mm, branch OD 17.1mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Reducing Tee, Tee Piece, Screwed, Low Pressure, 150 psi
£14.35 each
List Price – Sign in to view Trade Prices 14.35 GBP

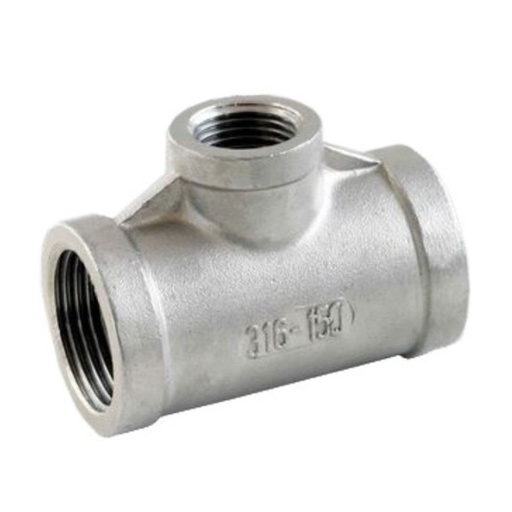

DN15x8 (1/2" x 1/4" NB) BSP 150# REDUCING TEE SS 316
Thread: 1/2" BSPP Female x Female, 1/4" BSPP Female Branch
Suits main run OD 21.3mm, branch OD 13.7mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Reducing Tee, Tee Piece, Screwed, Low Pressure, 150 psi
£14.35 each
List Price – Sign in to view Trade Prices 14.35 GBP
DN20 (3/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range
£129.15 each
List Price – Sign in to view Trade Prices 129.15 GBP
DN20 (3/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range
£131.11 each
List Price – Sign in to view Trade Prices 131.11 GBP

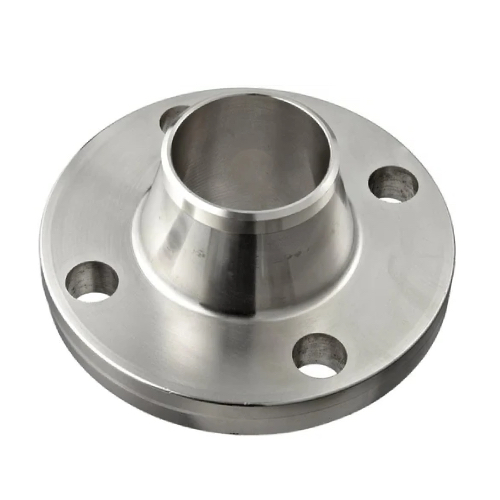

DN20 (3/4 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) 3PC SOCKET WELD 3PC FB BALL VALVE LEVER OP. SS 316
Threaded: 3/4" NB Socket Weld (SW)
Suits an outside diameter (OD) of: 26.9mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: Socket Weld
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range
£73.92 each
List Price – Sign in to view Trade Prices 73.92 GBP
DN20 (3/4" NB) ASA150 FLANGED 2PC LEVER OP. BALL VALVE LEVER OP SS 316
Flanged both ends: 3/4" ASA 150
Suits an outside diameter (OD) of: 26.9mm
PCD: 69.8mm Ø (ANSI 150)
Face to face: 117.1mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range
£243.04 each
List Price – Sign in to view Trade Prices 243.04 GBP
DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£36.54 each
List Price – Sign in to view Trade Prices 36.54 GBP
DN20 (3/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£70.14 each
List Price – Sign in to view Trade Prices 70.14 GBP
DN20 (3/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

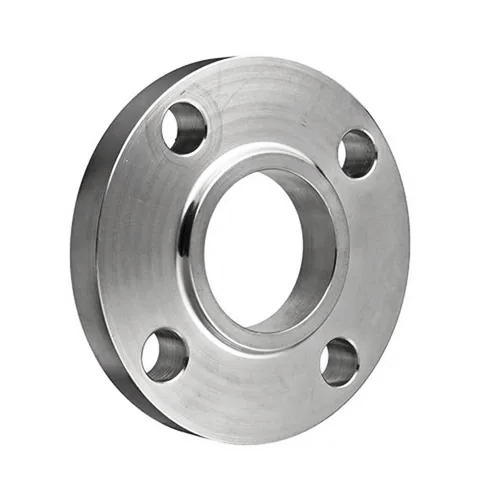

DN20 (3/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

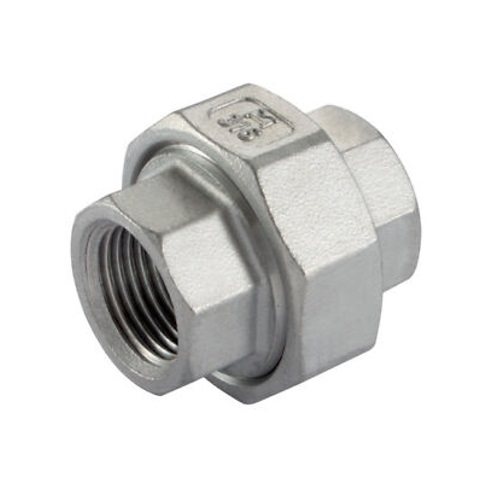

DN20 (3/4" NB) BSP 150# (FXF) CONE SEAT UNION SS 316
Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
£22.40 each
List Price – Sign in to view Trade Prices 22.4 GBP

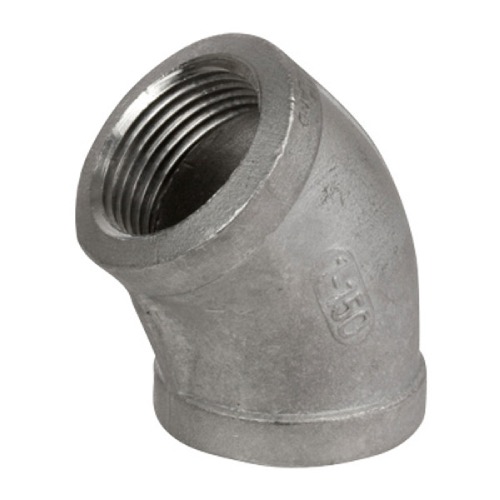

DN20 (3/4" NB) BSP 150# (FXF) ELBOW 45° SS 316
Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 45°, 45 Deg, Screwed, Low Pressure, 150 psi
£8.26 each
List Price – Sign in to view Trade Prices 8.26 GBP

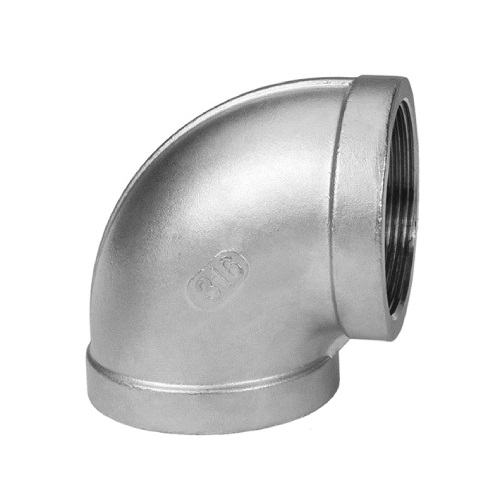

DN20 (3/4" NB) BSP 150# (FXF) ELBOW 90° SS 316
Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 90°, 90 Deg, Screwed, Low Pressure, 150 psi
£8.12 each
List Price – Sign in to view Trade Prices 8.12 GBP

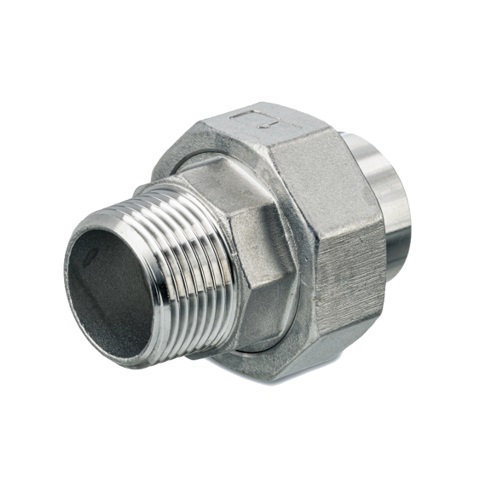

DN20 (3/4" NB) BSP 150# (MXF) CONE SEAT UNION SS 316
Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Alternative terminology:
Male x Female, MF, MXF, Union, Threaded, Screwed, Street Union
£23.80 each
List Price – Sign in to view Trade Prices 23.8 GBP

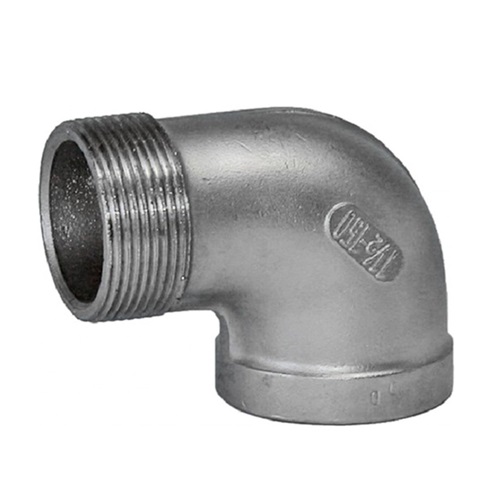

DN20 (3/4" NB) BSP 150# (MXF) ELBOW 90° SS 316
Side One Thread: 3/4" BSPT Male
Side Two Thread: 3/4" BSPP Female
Both Sides Suit an outside diameter (OD) of: 26.9mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi
£11.97 each
List Price – Sign in to view Trade Prices 11.97 GBP

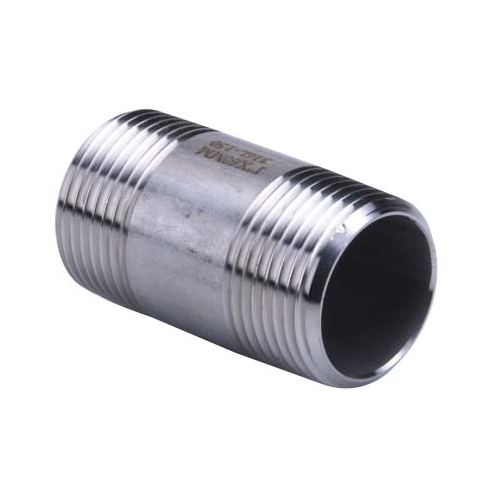

DN20 (3/4" NB) BSP 150# BARREL NIPPLE SS 316
Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
£7.42 each
List Price – Sign in to view Trade Prices 7.42 GBP

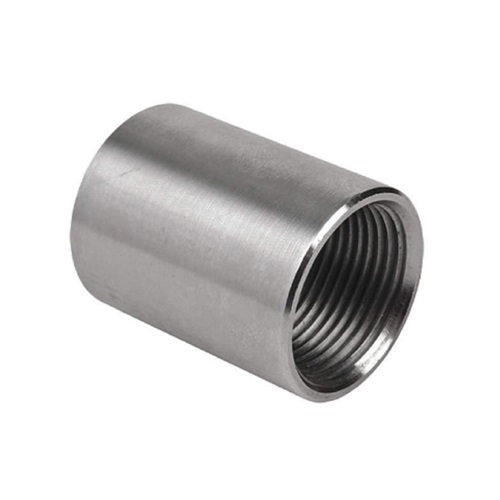

DN20 (3/4" NB) BSP 150# EQUAL FULL SOCKET SS 316
Thread: 3/4" BSP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
£7.42 each
List Price – Sign in to view Trade Prices 7.42 GBP

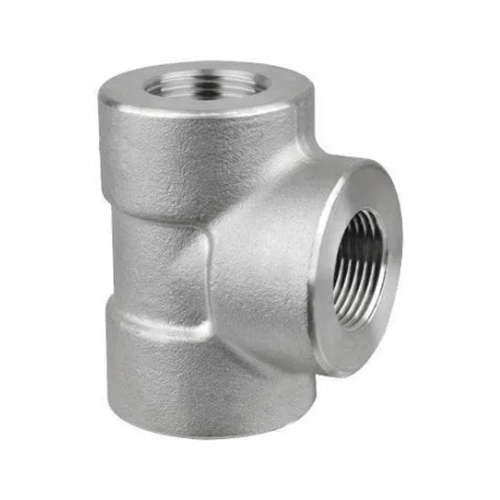

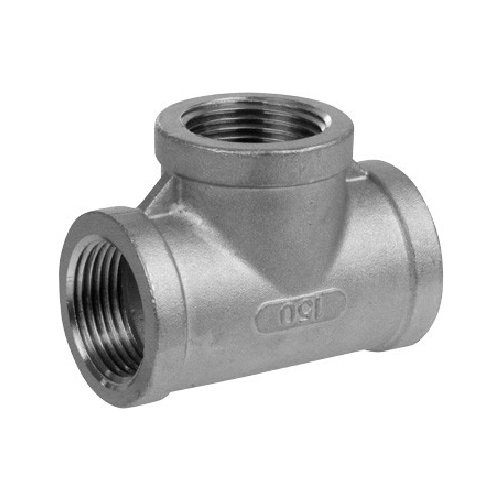

DN20 (3/4" NB) BSP 150# EQUAL TEE SS 316
Thread: 3/4" BSPP Female x Female x Female
Suits an outside diameter of 26.7mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Equal, Tee, Tee Piece, Screwed, Low Pressure, 150 psi
£15.40 each
List Price – Sign in to view Trade Prices 15.4 GBP

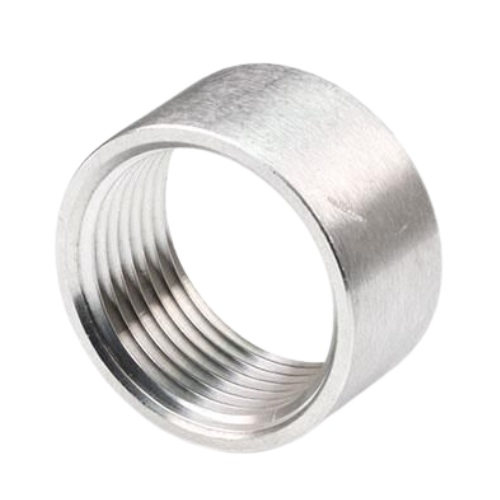

DN20 (3/4" NB) BSP 150# HALF SOCKET SS 316
Thread: 3/4" BSP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
£5.32 each
List Price – Sign in to view Trade Prices 5.32 GBP
DN20 (3/4" NB) BSP 150# HEX CAP END SS 316
Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316
£7.49 each
List Price – Sign in to view Trade Prices 7.49 GBP

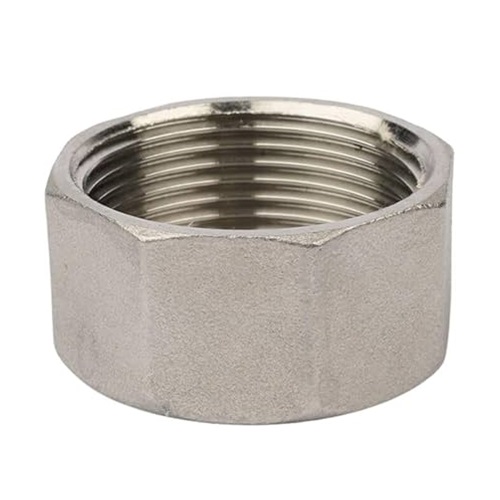

DN20 (3/4" NB) BSP 150# HEX CAP SS 316
Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Cap, Termination, Blanking Cap, Cap End
£7.49 each
List Price – Sign in to view Trade Prices 7.49 GBP

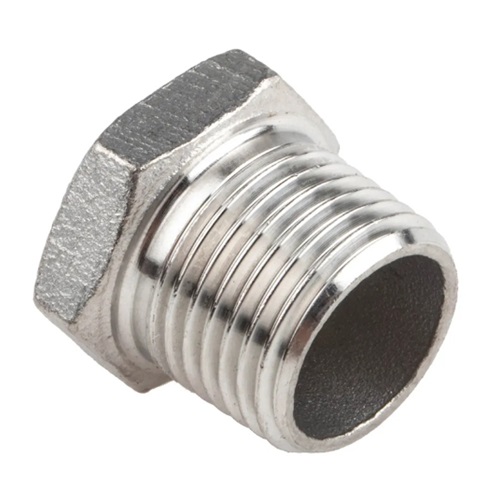

DN20 (3/4" NB) BSP 150# HEX HEAD PLUG SS 316
Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Male Plug, Termination, Blanking Plug, Stop end
£6.37 each
List Price – Sign in to view Trade Prices 6.37 GBP

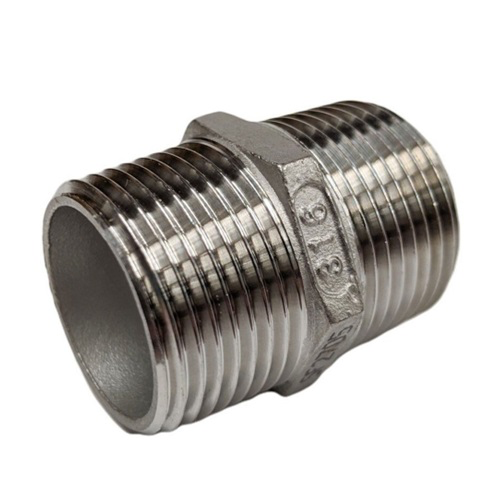

DN20 (3/4" NB) BSP 150# HEX NIPPLE SS 316
£7.70 each
List Price – Sign in to view Trade Prices 7.7 GBP

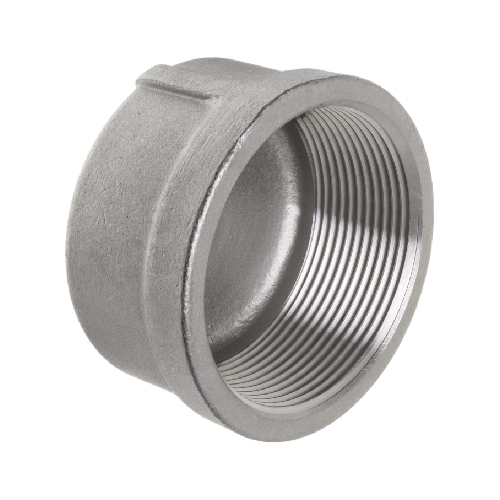

DN20 (3/4" NB) BSP 150# ROUND CAP SS 316
Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Cap, Termination, Blanking Cap, Cap End
£4.90 each
List Price – Sign in to view Trade Prices 4.9 GBP

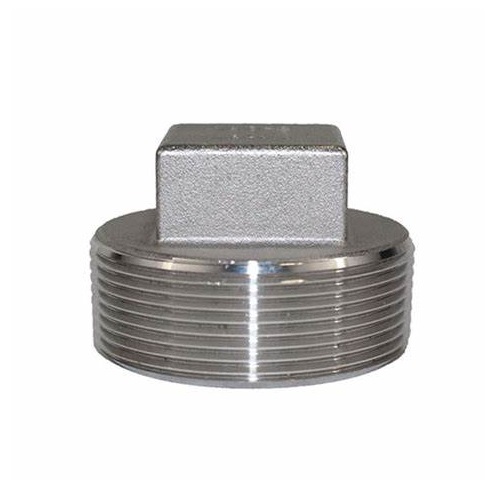

DN20 (3/4" NB) BSP 150# SQUARE HEAD PLUG SS 316
Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Male Plug, Termination, Blanking Plug, Stop end
£6.37 each
List Price – Sign in to view Trade Prices 6.37 GBP

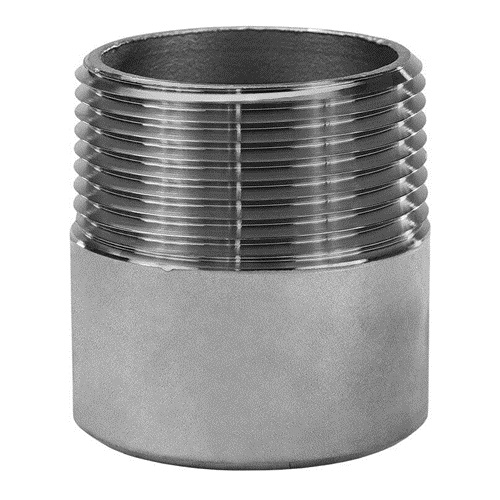

DN20 (3/4" NB) BSP 150# WELD NIPPLE SS 316
Side One Thread: 3/4" BSPT Male
Side Two Plain: 3/4" Buttweld
Both sides suit an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi
£5.88 each
List Price – Sign in to view Trade Prices 5.88 GBP
DN20 (3/4" NB) BSPP (FXF) 1PC RB BALL VALVE LEVER OP. SS 316
Threaded: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Construction: 1 Piece
Body Material: 316 Stainless
Thread: BSP Parallel Thread Female x Female
Bore: Reduced Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range
£35.91 each
List Price – Sign in to view Trade Prices 35.91 GBP
DN20 (3/4" NB) BSPP 3PC (FXF) FB BALL VALVE LEVER OP. SS 316
Threaded: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: BSP Parallel Female
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range
£73.57 each
List Price – Sign in to view Trade Prices 73.57 GBP

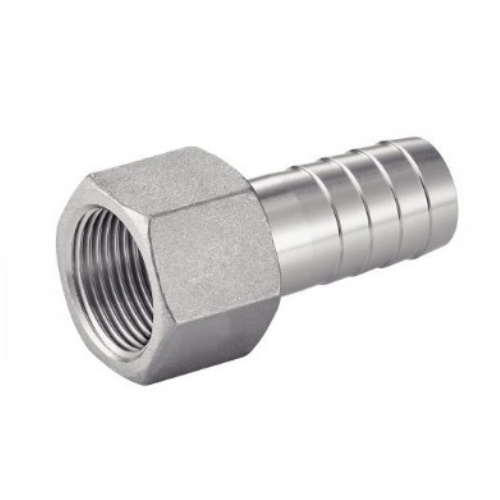

DN20 (3/4" NB) BSPP FEMALE 150# X 19.05MM HOSE TAIL SS 316
Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Hose Tail, Hose Adaptor, Hose Connector, Barb, Hose Push in Fitting
£27.37 each
List Price – Sign in to view Trade Prices 27.37 GBP
DN20 (3/4" NB) BSPT (FXF) 2PC FB BALL VALVE LEVER OP. SS 316
Threaded: 3/4" BSPT Female
Suits an outside diameter (OD) of: 26.9mm
Construction: 2 Piece
Body Material: 316 Stainless
Thread: BSP Taper Thread Female x Female
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range
£54.18 each
List Price – Sign in to view Trade Prices 54.18 GBP

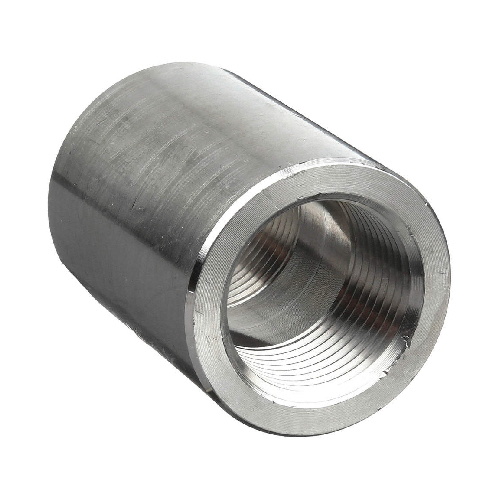

DN20 (3/4" NB) BSPT 3000# EQUAL COUPLING SS 316
Thread: 3/4" BSPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Stainless Steel
£41.58 each
List Price – Sign in to view Trade Prices 41.58 GBP
DN20 (3/4" NB) BSPT 3000# EQUAL TEE SS 316
Thread: 3/4" BSPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Stainless Steel
£127.47 each
List Price – Sign in to view Trade Prices 127.47 GBP

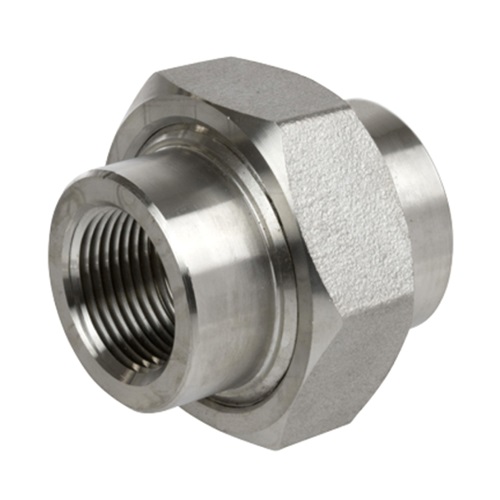

DN20 (3/4" NB) BSPT 3000# FXF UNION SS 316
Thread: 3/4" BSPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Stainless Steel
£130.20 each
List Price – Sign in to view Trade Prices 130.2 GBP

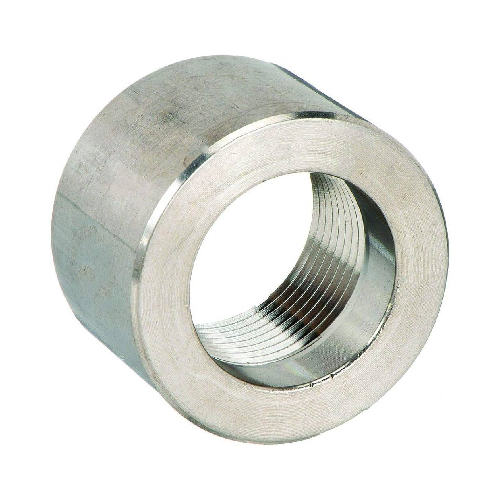

DN20 (3/4" NB) BSPT 3000# HALF COUPLING SS 316
Thread: 3/4" BSPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Stainless Steel
£28.28 each
List Price – Sign in to view Trade Prices 28.28 GBP

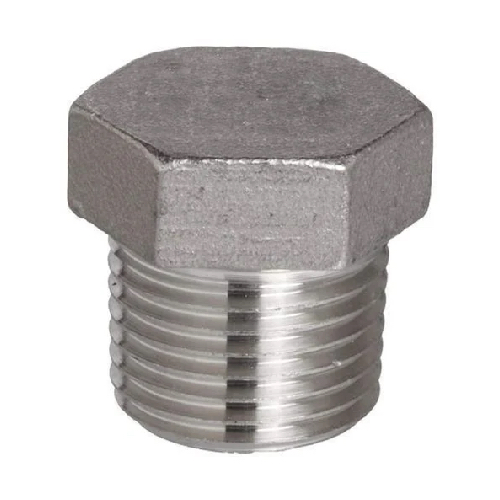

DN20 (3/4" NB) BSPT 3000# HEX HEAD PLUG END SS 316
Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Stainless Steel
£24.85 each
List Price – Sign in to view Trade Prices 24.85 GBP

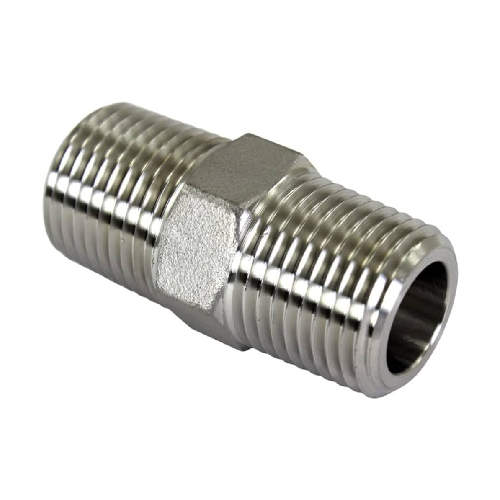

DN20 (3/4" NB) BSPT 3000# HEXAGON NIPPLE SS 316
Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Nipple, Straight, Connector, Stainless Steel
£53.20 each
List Price – Sign in to view Trade Prices 53.2 GBP

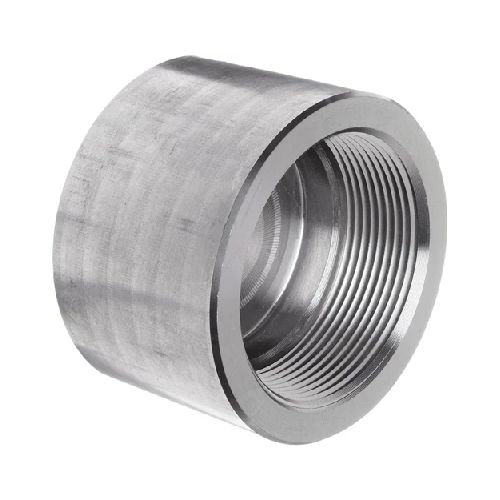

DN20 (3/4" NB) BSPT 3000# ROUND CAP END SS 316
Thread: 3/4" BSPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Stainless Steel
£32.83 each
List Price – Sign in to view Trade Prices 32.83 GBP
DN20 (3/4" NB) BSPT 3PC (FXF) FB BALL VALVE LEVER OP. SS 316
Threaded: 3/4" BSPT Female
Suits an outside diameter (OD) of: 26.9mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: BSP Taper Female
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range
£74.13 each
List Price – Sign in to view Trade Prices 74.13 GBP

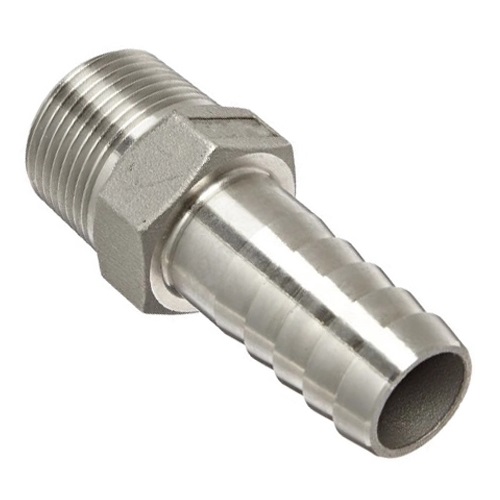

DN20 (3/4" NB) BSPT MALE 150# X 19.05MM HOSE TAIL SS 316
Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Hose Tail, Hose Adaptor, Hose Connector, Barb, Hose Push in Fitting
£10.50 each
List Price – Sign in to view Trade Prices 10.5 GBP
DN20 (3/4" NB) BSPT SCH80 PIPE NIPPLE T.B.E (2" LONG) SS 316
Thread: 3/4" BSPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Stainless Steel
£53.20 each
List Price – Sign in to view Trade Prices 53.2 GBP
DN20 (3/4" NB) BSPT SCH80 PIPE NIPPLE T.B.E (3" LONG) SS 316
Thread: 3/4" BSPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Stainless Steel
£60.20 each
List Price – Sign in to view Trade Prices 60.2 GBP

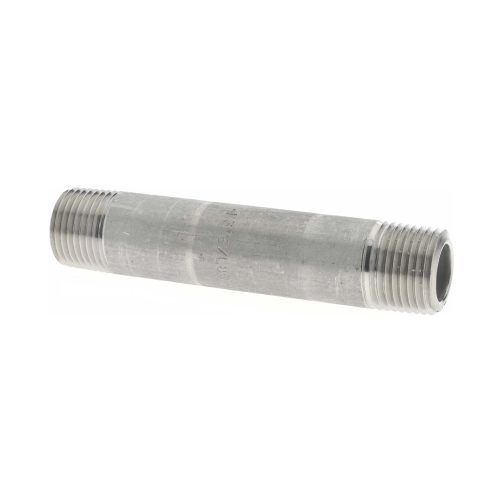

DN20 (3/4" NB) BSPT SCH80 PIPE NIPPLE T.B.E (4" LONG) SS 316
Thread: 3/4" BSPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Stainless Steel
£67.20 each
List Price – Sign in to view Trade Prices 67.2 GBP
