Flange OD (D): 165mm
Drilling (No. x Bolt Hole x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 90mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

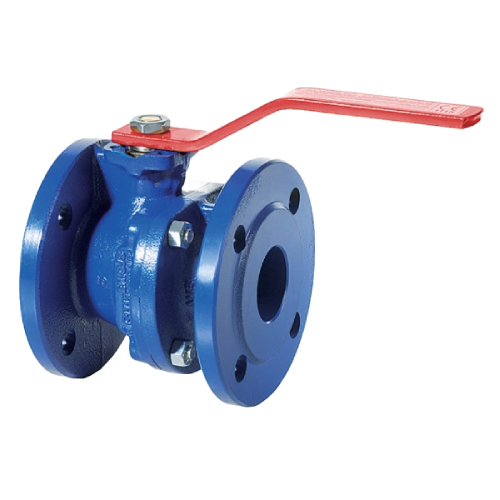

2" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 150mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

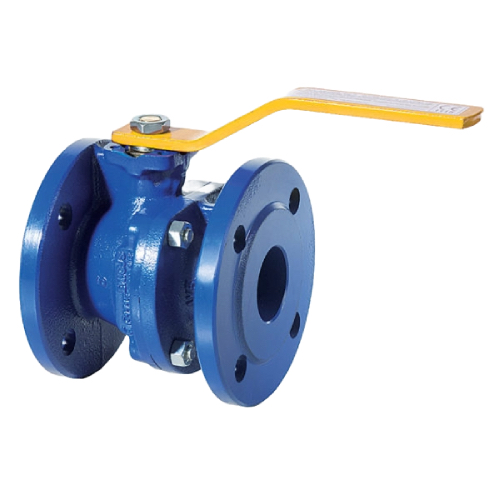

2" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16

Face to face: 150mm

Suitable for gas service.
EN331 approved design.

Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.

Part of our Isolation and Valves Range

Flanged to suit: 2" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 150mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: DN50 (2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 230mm
Temperature Range: -10°C to 300°C
Certification: Available on request

Flanged to suit: 2" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 2" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 178mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

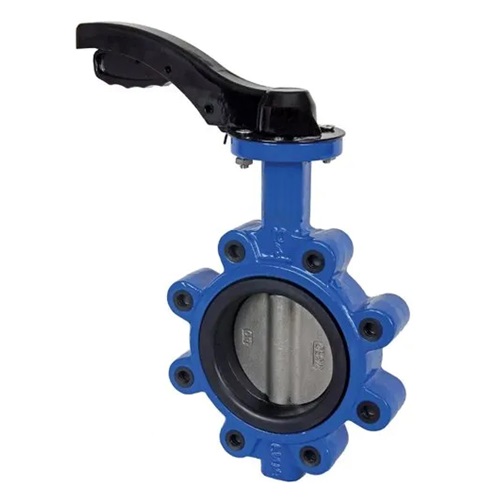

Suits Flange Size: DN50 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Flanged to suit: 2" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 178mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 60.3mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Connection: BSP Female Thread
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125mm
Flange Diameter: 165mm
Flange Thickness: 18mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
BSP, Female, Threaded, Screwed, Bossed Flange, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 165mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 125mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

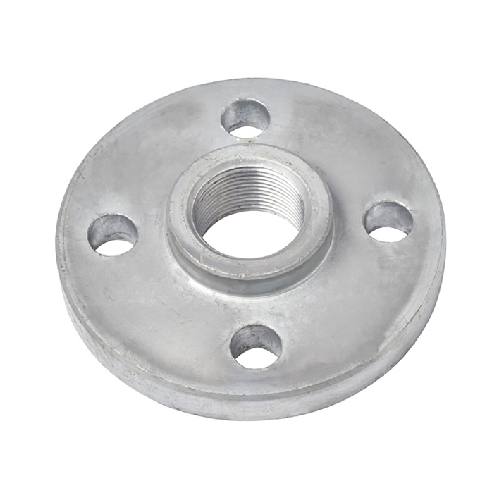

Flange outside diameter: 165mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 125mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 60.3mm
Material: Carbon Steel
Grade: A105 N
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125mm
Flange Diameter: 165mm
Flange Thickness: 18mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Plate Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 60.3mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125mm
Flange Diameter: 165mm
Flange Thickness: 18mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Plate Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Flanged to suit: DN50 (2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN40
Face to Face: 230mm
Temperature Range: -50°C to 400°C
Certification: Available on request

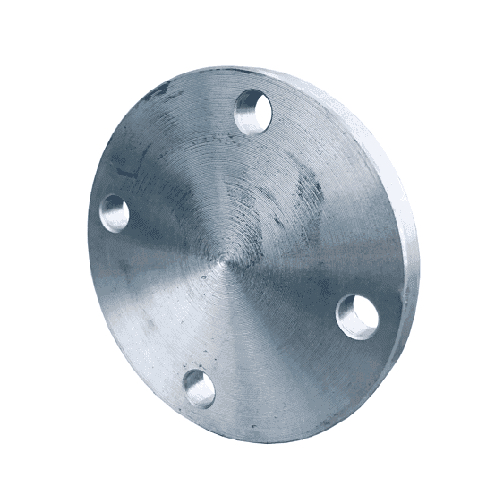

Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 90mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

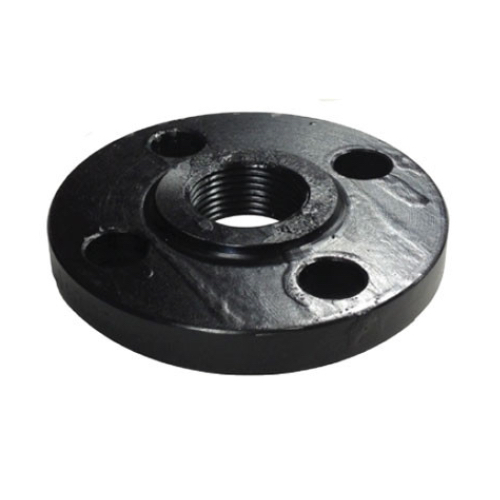

Flange outside diameter: 140mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 140mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

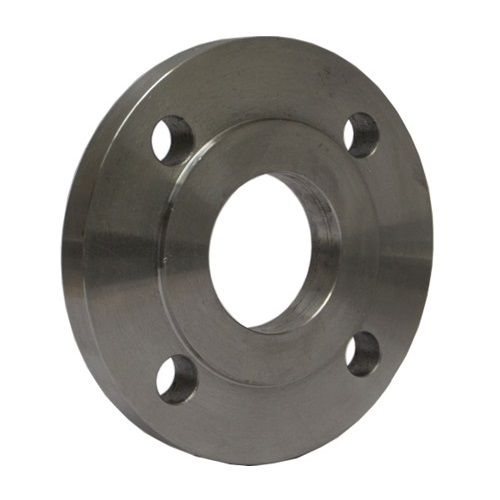

Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 60.3mm
Material: CS
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off 19mm Ø
PCD: 120.6mm
Flange Diameter: 152.4mm
Flange Thickness: 19.0mm
Certification Available: 3.1 Material Certification
Origin: European (EU)

Alternative terminology:
Raised Face, Weld Neck, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 8.7mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 160 ASME B36.10 / B36.19
Standard Length: 6 meters
Weight Per Meter: 11.11 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Length: 63.5mm
Schedule: STD
Weight: 0.23kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to End: 63.5mm
Schedule: STD
Weight: 1.34kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 34.9mm
Schedule: STD
Weight: 0.36kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 50.8mm
Schedule: STD
Weight: 0.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Hub length (X): 77.7mm
Neck height (A): 60.4mm
Pitch circle diameter (K): 120.6mm
Hub base diameter (Y): 63.5mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 76.2mm
Schedule: STD
Weight: 0.72kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 3.91mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 5.44 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 3.91mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 5.44 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)




Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 3.91mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Length: 63.5mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Cap end, End Cap, Blank Cap, Termincation Cap, Stop End

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 3.91mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Radius Centre to Face: 50.8mm
Angle: 90 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Short Rad, 90s

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Length: 63.5mm
Schedule: XS
Weight: 0.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to End: 63.5mm
Schedule: XS
Weight: 1.69kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 34.9mm
Schedule: XS
Weight: 0.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 76.2mm
Schedule: XS
Weight: 1.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 50.8mm
Schedule: XS
Weight: 0.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Hub length (X): 77.7mm
Neck height (A): 60.4mm
Pitch circle diameter (K): 120.6mm
Hub base diameter (Y): 63.5mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 5.54mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 7.48 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 60.3mm
Material: Forged Steel
Grade: A105 N
Standards: BS3799, ASME B16.11, MSS SP-97 & MSS SP-833
Ends: Socket Weld
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Socket Weld, Weld Tee

Connection: 2" Socket Weld (SW)
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blanking Cap End, Carbon Steel

Connection: 2" Socket Weld (SW)
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, 90°, 90 Degree, Carbon Steel

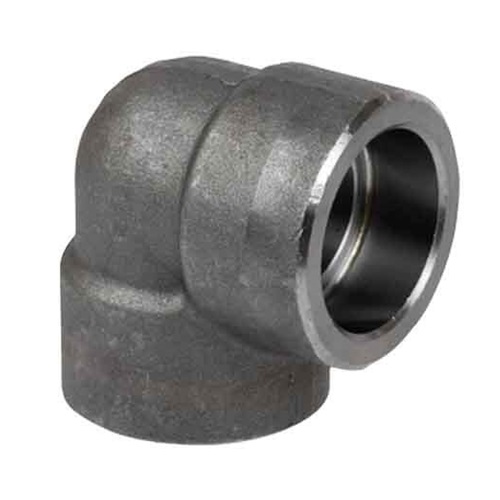

Connection: 2" Socket Weld (SW)
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Connection: 2" Socket Weld (SW)
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, Carbon Steel

Connection: 2" Socket Weld (SW)
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Connection: 2" Socket Weld (SW)
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Suits an outside diameter (OD) of: 60.3mm
Material: MS Zinc Plated (BZP)
Thread: M10
Comes with 2x Nuts

Suits an outside diameter (OD) of: 60.3mm
Material: MS Zinc Plated (BZP)
Thread: M10
Comes with 2x Nuts

Suits an outside diameter (OD) of: 60.3mm
Material: Mild Steel (Galvanised))
Thread: M10
Comes with 2x Nuts

Suits an outside diameter (OD) of: 60.3mm
Material: Mild Steel (Galvanised))
Thread: M10
Comes with 2x Nuts

Suits an outside diameter (OD) of: 60.3mm
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated

Flange outside diameter: 165mm (D)
Flange inside diameter: 61.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 125mm (K)
Hub height: 28mm (H1)
Neck diameter: 84mm (N2)
Raised Face Diameter: 102mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 165mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C4): 20mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 165mm (D)
Flange inside diameter: 61.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 125mm (K)
Hub height: 34mm (H1)
Neck diameter: 84mm (N2)
Raised Face Diameter: 102mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 140mm (D)
Flange inside diameter: 61.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 110mm (K)
Hub height: 28mm (H1)
Neck diameter: 80mm (N2)
Raised Face Diameter: 110mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side 1 threaded: 2" BSPP Female
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1.1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 2" BSPP Female
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1.1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1.1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1.1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" NPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1.1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Run threads: 2" BSPP Female
Suits an outside diameter (OD) of: 60.3mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 2" BSPP Female
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Run threads: 2" BSPP Female
Suits an outside diameter (OD) of: 60.3mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 2" BSPP Female
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" BSPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 2" BSPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" NPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" NPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 2" NPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Connection side: 1 : 2" Socket Weld (SW)
Suits 1 suits an outside: diameter (OD) of: 60.3mm
Connection side: 2 : 1/2" Socket Weld (SW)
Connection side 2 suits suits an outside: diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, , Socket Weld, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Run threads: 2" BSPP Female
Suits an outside diameter (OD) of: 60.3mm
Branch Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 2" BSPP Female
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Run threads: 2" BSPP Female
Suits an outside diameter (OD) of: 60.3mm
Branch Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 2" BSPP Female
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Side 2 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" BSPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 2" BSPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 2" BSPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" NPT Male
Side 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 Thread: 2" NPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Side 2 Thread: 3/4" NPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 threaded: 2" NPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 2" NPT Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 3/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 2" NPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Side 2 Thread: 3/4" NPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Connection side: 1 : 2" Socket Weld (SW)
Suits 1 suits an outside: diameter (OD) of: 60.3mm
Connection side: 2 : 3/4" Socket Weld (SW)
Connection side 2 suits suits an outside: diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, , Socket Weld, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Side 2 Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.
