Outside diameter (O): 177.8mm
Hub diameter at base (C): 22.3mm
Length through hub (X): 90.4mm
Pitch circle diameter (K): 139.7mm
Raised face diameter (Y): 28.4mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 104.6mm
Bore length (B): 74.6mm
Bore diameter (D): 19.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 244.3mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 1500

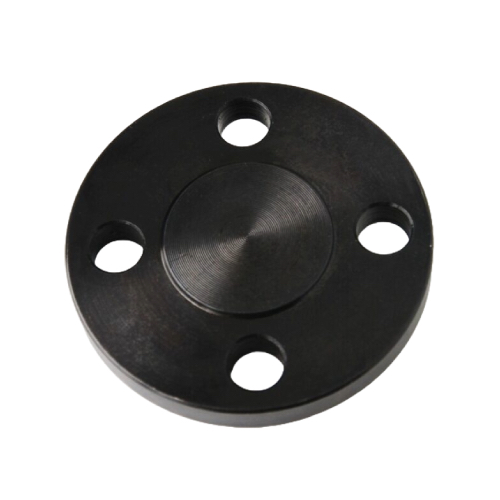

Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 244.3mm (O)
Flange thickness: 41.1mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 190.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 28.4mm diameter
Bore Diameter: 74.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 38.1mm (Y)
Pitch Circle Diameter (PCD): 149.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 74.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.0mm
Hub diameter at base (C): 23.9mm
Length through hub (X): 100.0mm
Pitch circle diameter (K): 149.3mm
Raised face diameter (Y): 37mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 104.6mm
Bore length (B): 74.7mm
Bore diameter (D): 19.0mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 149.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 74.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 76.2mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 76.2mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 76.2mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 76.2mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

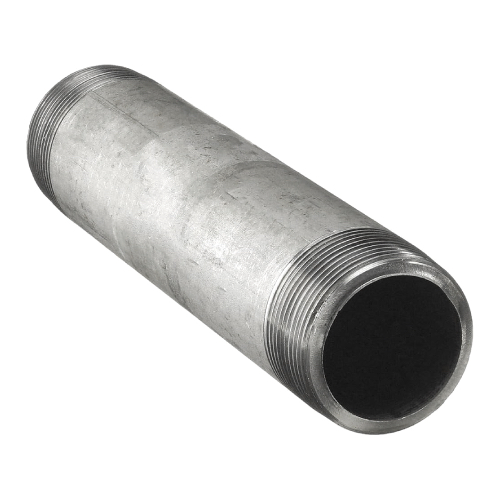

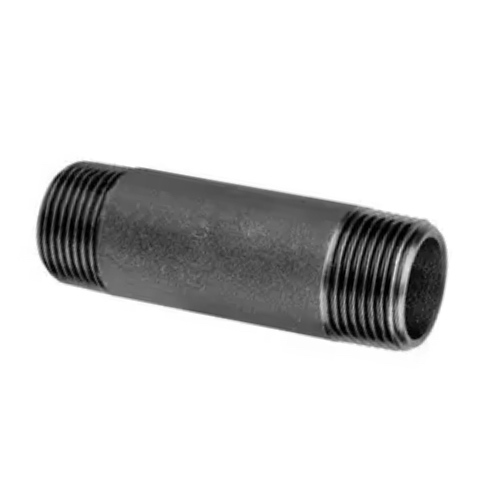

Threaded both sides: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Overall Length: 90mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Socket, Coupling, Connector, Joiner, Straight, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

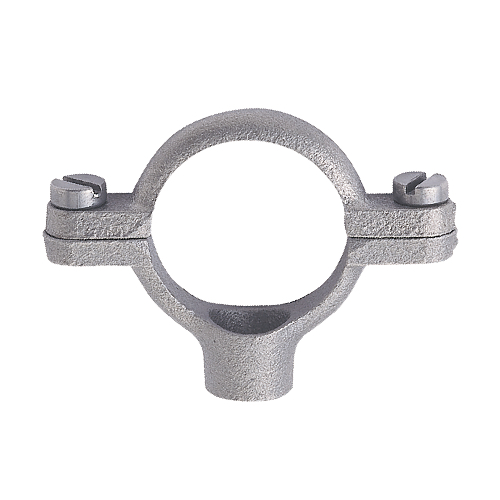

Suits pipe size: 2.1/2" NB
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

All sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, 45°, Bend, Figure 41, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable 45°, 45 Degree, Malleable Iron, Threaded, Screwed, Figure 120, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Short, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, FXF, Threaded, Screwed, Figure 340, Fittings.

Both sides threaded: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed , BS1387, Medium Weight, Pipe.

Threaded: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Hollow, Termination, Blanking, Figure 147, Screwed, Fittings.

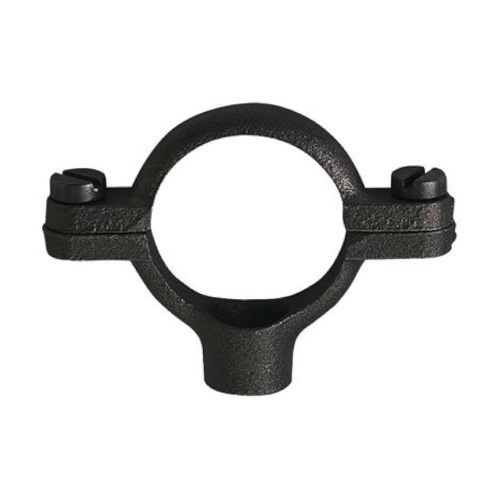

Suits pipe size: 2.1/2" NB
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Street, MXF, MF, 45°, Bend, Figure 40, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Street, MF, MXF Bend, Figure 192, Screwed, Fittings.

Side One Thread: 2.1/2" BSPP Female
Side Two Thread: 2.1/2" BSPT Male
Both Sides Suit an Outside Diameter (OD) of: 76.2mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, MXF, Male x Female Screwed, Figure 90 MF, Fittings.

Both sides threaded: 2.1/2" BSPT Male x BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, MXF, Street, Threaded, Screwed, Figure 341, Fittings.

Threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Figure 185, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Socket, Coupling, Connector, Joiner, Straight, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Suits pipe size: 2.1/2" NB
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: HOT DIP GALVANISED (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

All sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed

All sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, 45°, Bend, Figure 41, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable 45°, 45 Degree, Malleable Iron, Threaded, Screwed, Figure 120, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Short, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, FXF, Threaded, Screwed, Figure 340, Fittings.

Both sides threaded: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed , BS1387, Medium Weight, Pipe.

Both sides threaded: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 72.2mm
Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed , BS1387, Medium Weight, Pipe.

Threaded: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Hollow, Termination, Blanking, Figure 147, Screwed, Fittings.

Suits pipe size: 2.1/2" NB
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: HOT DIP GALVANISED (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Street, MXF, MF, 45°, Bend, Figure 40, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Street, MF, MXF Bend, Figure 192, Screwed, Fittings.

Side One Thread: 2.1/2" BSPP Female
Side Two Thread: 2.1/2" BSPT Male
Both Sides Suit an Outside Diameter (OD) of: 76.2mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, MXF, Male x Female Screwed, Figure 90 MF, Fittings.

Both sides threaded: 2.1/2" BSPT Male x BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, MXF, Street, Threaded, Screwed, Figure 341, Fittings.

Threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Figure 185, Screwed, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.

Both sides threaded: 2.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.

Suits an outside diameter (OD) of: 76.2mm
Valve Type: Globe Valve
Body & Bonnet Material: Bronze (BS:1400 LG2)
Connection Type: BSPP Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +180°C
Pressure Rating: PN20

Alternative terminology: Threaded Globe Valve, BSPP Valve, Globe Valve, Isolation Valve, Shut-Off Valve, Bronze Globe Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 76.2mm
Valve Type: Globe Valve (Integral PTFE Seat)
Body Material: Bronze (BS:1400 LG2)
Connection Type: BSPP Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +198°C
Pressure Rating: PN32

Alternative terminology: Threaded Globe Valve, BSPP Valve, Globe Valve, Isolation Valve, Shut-Off Valve, Bronze Globe Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 72.2mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Thread: 2.1/2" BSPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 2.1/2" BSPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 2.1/2" BSPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Thread: 2.1/2" BSPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Thread: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 2.1/2" BSPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 2.1/2" BSPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 2.1/2" BSPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 2.1/2" BSPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Thread: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 2.1/2" BSPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" BSPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" BSPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" BSPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" BSPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Suits Flange Size: DN65 (2.1/2" NB) PN16
Valve Type: Y Type Strainer
Body Material: EN GJL 250 Epoxy Coated Ductile Iron
Gasket Material: Graphite
Screen: 304 Stainless Steel
Operation: Automatic
Pressure Rating: PN16
Temperature Range: -10°C to +300°C

Face to Face: 290mm Overall Length

Part of our Y Type Strainers Range

Outside Diameter (OD): 76.2mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 7.93kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 76.2mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 7.93kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 76.2mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 7.93kg
Construction: Welded
Finish: Self Colour
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 76.2mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 7.93kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 76.2mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 7.93kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Suits an outside diameter (OD) of: 76.2mm
Boss Connection: M10
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated

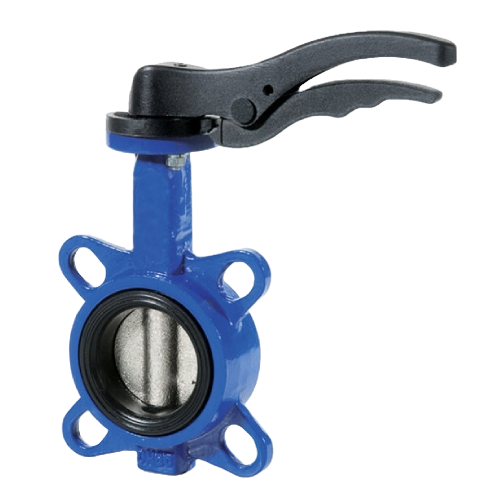

Suits Flange Size: DN65 (2.1/2" NB) (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16 & ANSI 150

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Thread: 2.1/2" NPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 2.1/2" NPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 2.1/2" NPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Thread: 2.1/2" NPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Thread: 2.1/2" NPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 2.1/2" NPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 2.1/2" NPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 2.1/2" NPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 2.1/2" NPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 2.1/2" NPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Thread: 2.1/2" NPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 2.1/2" NPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 2.1/2" NPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 2.1/2" NPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" NPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" NPT Male
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" NPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 2.1/2" NPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel
