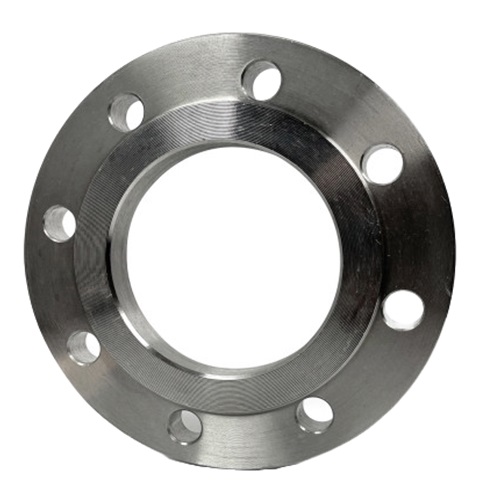

Flange outside diameter: 190mm (D)
Flange inside diameter: 90.5mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 150mm (K)
Hub height: 34mm (H1)
Neck diameter: 110mm (N2)
Raised Face Diameter: 148mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 3/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 3/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 3/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 26.9mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 33.4mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 33.4mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 33.4mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 33.4mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1" NPT Female
Side 2 suits suits an outside diameter (OD) of: 33.4mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 42.4mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 42.4mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 42.4mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 42.4mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 42.4mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 1.1/2" BSPP Female
Suits an outside diameter (OD) of: 48.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPP Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 1.1/2" BSPP Female
Suits an outside diameter (OD) of: 48.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3" BSPP Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3" BSPP Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3" BSPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3" NPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 1.1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 48.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 2" BSPP Female
Suits an outside diameter (OD) of: 60.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 3" BSPP Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 2" BSPP Female
Suits an outside diameter (OD) of: 60.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2" BSPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 3" BSPP Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3" BSPP Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3" BSPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 Thread: 3" NPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2" NPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3" NPT Female
Suits 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 60.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 3" NPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2" NPT Male x Male
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2.1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 76.2mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 threaded: 3" BSPP Female
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2.1/2" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 76.2mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2.1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 76.2mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" BSPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2.1/2" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 76.2mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3" NPT Male
Side 1 suits an outside diameter (OD) of: 88.9mm
Side 2 threaded: 2.1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 76.2mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 Thread: 3" NPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2.1/2" NPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 Thread: 3" NPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Side 2 Thread: 2.1/2" NPT Male x Male
Suits an outside diameter (OD) of: 76.2mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Outside Diameter (OD): 89 X 42mm
Wall Thickness: 5.49 X 3.56mm
Length: 89mm

Outside Diameter (OD): 89 X 48mm
Wall Thickness: 5.49 X 3.68mm
Length: 89mm

Outside Diameter (OD): 89 X 60mm
Wall Thickness: 5.49 X 3.91mm
Length: 89mm

Outside Diameter (OD): 89 X 73mm
Wall Thickness: 5.49 X 5.16mm
Length: 89mm

Side One suits an outside diameter (OD) of: 88.9mm
Side One wall thickness (WT): 5.48mm

Side Two suits an outside diameter (OD) of: 48.3mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 89mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 88.9mm
Side One wall thickness (WT): 5.48mm

Side Two suits an outside diameter (OD) of: 48.3mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 89mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 88.9mm
Side One wall thickness (WT): 5.48mm

Side Two suits an outside diameter (OD) of: 73mm
Side Two wall thickness (WT): 5.16mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 89mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 89 x 60mm
Wall Thickness (Run x Branch): 5.49 x 3.91mm
Centre to End (Run): 86mm
Centre to End (Branch): 76mm
Schedule: STD
Weight: 3.75kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 89 x 60mm
Wall Thickness (Run x Branch): 7.62 x 5.54mm
Centre to End (Run): 86mm
Centre to End (Branch): 76mm
Schedule: XS
Weight: 4.29kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 101.6mm
Wall Thickness (WT): 5.74mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9
Radius Centre to Face: 57.2mm
Angle: 45 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Weld Bends, Weld Elbow, 45° / 45 deg

Outside Diameter (OD): 101.6mm
Wall Thickness: 5.74mm
Centre to End: 95.3mm
Schedule: STD
Weight: 4.82kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 101.6mm
Wall Thickness: 8.08mm
Centre to End: 95.3mm
Schedule: XS
Weight: 5.72kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 102 X 48mm
Wall Thickness: 5.74 X 3.68mm
Length: 102mm

Outside Diameter (OD): 102 X 60mm
Wall Thickness: 5.74 X 3.91mm
Length: 102mm

Outside Diameter (OD): 102 X 73mm
Wall Thickness: 5.74 X 5.16mm
Length: 102mm

Outside Diameter (OD): 102 X 89mm
Wall Thickness: 5.74 X 5.49mm
Length: 102mm

M10 Metric Threaded Backplate
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

M10 Metric Threaded Backplate
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

M12 Metric Threaded Backplate
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

M12 Metric Threaded Backplate
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Hub height (X): 146.0mm
Length through hub (A): 114.3mm
Bolt circle diameter (K): 203.2mm
Overall height (Y): 85.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 11.9kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 12.2kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 12.2kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 12.2kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 12.5kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 12.5kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

4" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 190mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Outside diameter (O): 228.6mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 134.8mm
Pitch circle diameter (K): 190.5mm
Raised face diameter (Y): 33.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 157.2mm
Bore diameter (Q): 33.2mm
Hub thickness (T): 19.0mm
Number of bolt holes: 8
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
