Outside diameter (O): 228.6mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 134.8mm
Pitch circle diameter (K): 190.5mm
Raised face diameter (Y): 33.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 157.2mm
Bore diameter (Q): 33.2mm
Hub thickness (T): 19.0mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 228.6mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 33.2mm (Y)
Pitch Circle Diameter (PCD): 190.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 116.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 228.6mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 134.8mm
Pitch circle diameter (K): 190.5mm
Raised face diameter (Y): 33.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 157.2mm
Bore length (B): 139.3mm
Bore diameter (D): 25.4mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 311.1mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 311.1mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 35.0mm diameter
Bore Diameter: 116.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 254.0mm
Hub diameter at base (C): 31.7mm
Length through hub (X): 146.0mm
Pitch circle diameter (K): 200.1mm
Raised face diameter (Y): 47.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 157.2mm
Bore diameter (Q): 117.6mm
Hub thickness (T): 36.5mm
Number of bolt holes: 8
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 254.0mm
Hub diameter at base (C): 31.7mm
Length through hub (X): 146.0mm
Pitch circle diameter (K): 200.1mm
Raised face diameter (Y): 47.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 157.2mm
Bore diameter (Q): 117.6mm
Hub thickness (T): 36.5mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 254.0mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 47.7mm (Y)
Pitch Circle Diameter (PCD): 200.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 116.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 273.0mm
Flange thickness (C): 38.1mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 273.0mm (O)
Flange thickness: 38.1mm (C)
Flange hub height: 53.8mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 25.4mm diameter
Bore Diameter: 116.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 114.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 114.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 114.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 114.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

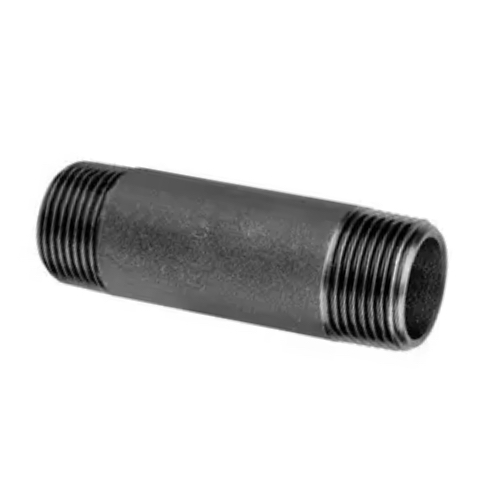

Threaded both sides: 4" BSPT Male x Male
Suits an outside diameter (OD) of: 114.3mm
Overall Length: 110mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Socket, Coupling, Connector, Joiner, Straight, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

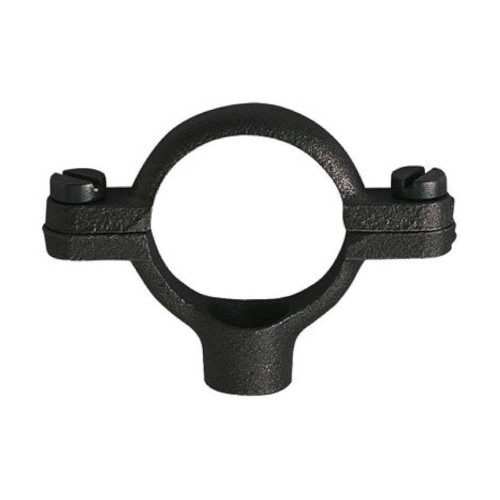

Suits pipe size: 4" NB
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

All sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable 45°, 45 Degree, Malleable Iron, Threaded, Screwed, Figure 120, Fittings.

Both sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.

Both sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, FXF, Threaded, Screwed, Figure 340, Fittings.

Both sides threaded: 4" BSPT Male x Male
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed , BS1387, Medium Weight, Pipe.

Threaded: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Hollow, Termination, Blanking, Figure 147, Screwed, Fittings.

Suits pipe size: 4" NB
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

Both sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Street, MF, MXF Bend, Figure 192, Screwed, Fittings.

Side One Thread: 4" BSPP Female
Side Two Thread: 4" BSPT Male
Both Sides Suit an Outside Diameter (OD) of: 114.3mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, MXF, Male x Female Screwed, Figure 90 MF, Fittings.

Both sides threaded: 4" BSPT Male x BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, MXF, Street, Threaded, Screwed, Figure 341, Fittings.

Threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Figure 185, Screwed, Fittings.

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Socket, Coupling, Connector, Joiner, Straight, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Suits pipe size: 4" NB
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: HOT DIP GALVANISED (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

All sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed

All sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable 45°, 45 Degree, Malleable Iron, Threaded, Screwed, Figure 120, Fittings.

Both sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.

Both sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Bend, Figure 193, Screwed, Fittings.

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, FXF, Threaded, Screwed, Figure 340, Fittings.

Both sides threaded: 4" BSPT Male x Male
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed , BS1387, Medium Weight, Pipe.

Both sides threaded: 4" BSPT Male x Male
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed , BS1387, Medium Weight, Pipe.

Both sides threaded: 4" BSPP Male
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Plug, Male, Blank, Termination, Bung, Threaded, Screwed, Figure 290, Fittings.

Threaded: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Hollow, Termination, Blanking, Figure 147, Screwed, Fittings.

Suits pipe size: 4" NB
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: HOT DIP GALVANISED (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

Both sides threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, Long, Street, MF, MXF Bend, Figure 192, Screwed, Fittings.

Side One Thread: 4" BSPP Female
Side Two Thread: 4" BSPT Male
Both Sides Suit an Outside Diameter (OD) of: 114.3mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, MXF, Male x Female Screwed, Figure 90 MF, Fittings.

Both sides threaded: 4" BSPT Male x BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Union, MXF, Street, Threaded, Screwed, Figure 341, Fittings.

Threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Figure 185, Screwed, Fittings.

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.

Both sides threaded: 4" BSPP Female x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.

Suits an outside diameter (OD) of: 114.3mm
Valve Type: Globe Valve
Body & Bonnet Material: Bronze (BS:1400 LG2)
Connection Type: BSPP Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +180°C
Pressure Rating: PN20

Alternative terminology: Threaded Globe Valve, BSPP Valve, Globe Valve, Isolation Valve, Shut-Off Valve, Bronze Globe Valve

Part of our Isolation and Valves Range

Thread: 4" BSPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Thread: 4" BSPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Thread: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 4" BSPT Male x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 4" BSPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Thread: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 4" BSPT Male x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: 4" BSPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 4" BSPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 4" BSPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 4" BSPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 4" BSPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Suits Flange Size: DN100 PN16
Valve Type: Y Type Strainer
Body Material: EN GJL 250 Epoxy Coated Ductile Iron
Gasket Material: Graphite
Screen: 304 Stainless Steel
Operation: Automatic
Pressure Rating: PN16
Temperature Range: -10°C to +300°C

Face to Face: 350mm Overall Length

Part of our Y Type Strainers Range

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 14.5kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 14.5kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 14.5kg
Construction: Welded
Finish: Self Colour
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 14.5kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 14.5kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Suits an outside diameter (OD) of: 114.3mm
Boss Connection: M12
Band width: 40mm
Band thickness: 3mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated

Suits Flange Size: DN100 (4" NB) (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 114.3mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Thread: 4" NPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

Thread: 4" NPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Thread: 4" NPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 4" NPT Male
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 4" NPT Male x Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 4" NPT
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: 4" NPT Female
Suits an outside diameter (OD) of: 114.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel
