Nominal Bore

Nominal Bore Carbon Steel Pipe – A106, API 5L, EN10255

Integraflow supplies nominal bore carbon steel pipe in seamless and welded form to A106 Grade B, API 5L, and EN10255 specifications, with wall thicknesses including Schedule 20, 40, 80,160 and STD/XS/XXS, available in black varnished, self-colour, and galvanised finishes, suitable for industrial, mechanical, and pressure system applications.

List 200
Sort By: Name (A-Z)

Nominal Bore

DN500 (20" NB) SCHEDULE STD A234 WPB EQUAL TEE
Outside Diameter (OD): 508.0mm
Wall Thickness: 9.52mm
Centre to End: 381.0mm
Schedule: STD
Weight: 160.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£941.97 each
List Price – Sign in to view Trade Prices 941.97 GBP
DN500 (20" NB) SCHEDULE STD A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 508.0mm
Wall Thickness: 9.52mm
Centre to Face: 318.0mm
Schedule: STD
Weight: 85.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£325.20 each
List Price – Sign in to view Trade Prices 325.2 GBP

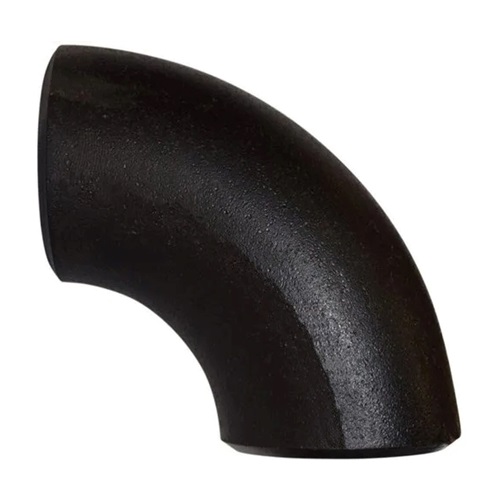

DN500 (20" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 508.0mm
Wall Thickness: 9.52mm
Centre to Face: 762.0mm
Schedule: STD
Weight: 138.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£700.41 each
List Price – Sign in to view Trade Prices 700.41 GBP
DN500 (20" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 117.15kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE XS A234 WPB EQUAL TEE
Outside Diameter (OD): 508.0mm
Wall Thickness: 12.7mm
Centre to End: 381.0mm
Schedule: XS
Weight: 200.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN500 (20" NB) U-BOLT C.W NUTS BZP
Suits an outside diameter (OD) of: 508mm
Material: MS Zinc Plated (BZP)
Thread: M16
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN500 (20" NB) U-BOLT C.W NUTS GALVANISED
Suits an outside diameter (OD) of: 508mm
Material: Mild Steel (Galvanised))
Thread: M16
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN500 PN10 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 670mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 38mm
Pitch Circle Diameter (PCD): 620mm (K)
Hub height: 67mm (H1)
Neck diameter: 559mm (N2)
Raised Face Diameter: 585mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 670mm (D)
PCD: 620mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN16 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 715mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 36mm
Pitch Circle Diameter (PCD): 650mm (K)
Hub height: 73mm (H1)
Neck diameter: 559mm (N2)
Raised Face Diameter: 610mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 33.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 715mm (D)
PCD: 650mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£255.00 each
List Price – Sign in to view Trade Prices 255.0 GBP
DN500 PN25 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 730mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 48mm
Pitch Circle Diameter (PCD): 660mm (K)
Hub height: 90mm (H1)
Neck diameter: 580mm (N2)
Raised Face Diameter: 615mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 36mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 730mm (D)
PCD: 660mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 58mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 755mm
Drilling (No. x Bolt Holes x L): 20 x M45 x 42mm
Pitch circle diameter (K): 670mm
Flange thickness (C4): 57mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN40 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 785mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 57mm
Pitch Circle Diameter (PCD): 670mm (K)
Hub height: 90mm (H1)
Neck diameter: 576mm (N2)
Raised Face Diameter: 615mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 42mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 X DN200 (20" X 8" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN200 (20" X 8" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN200 (20" X 8" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN200 (20" X 8" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN250 (20" X 10" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN250 (20" X 10" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN250 (20" X 10" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN250 (20" X 10" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN300 (20" X 12" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN300 (20" X 12" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN300 (20" X 12" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN300 (20" X 12" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN350 (20" X 14" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN350 (20" X 14" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN350 (20" X 14" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN350 (20" X 14" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN400 (20" X 16" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
£401.40 each
List Price – Sign in to view Trade Prices 401.4 GBP
DN500 X DN400 (20" X 16" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN400 (20" X 16" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN400 (20" X 16" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN450 (20" X 18" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
£684.57 each
List Price – Sign in to view Trade Prices 684.57 GBP
DN500 X DN450 (20" X 18" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN450 (20" X 18" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 X DN450 (20" X 18" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN500 x DN450 (20 x 18" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE
Outside Diameter (OD): 508 x 457mm
Wall Thickness (Run x Branch): 9.53 x 9.53mm
Centre to End (Run): 381mm
Centre to End (Branch): 330mm
Schedule: STD
Weight: 163.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN500 x DN450 (20 x 18" NB) SCHEDULE 80 / XS A234 WPB REDUCING TEE
Outside Diameter (OD): 508 x 457mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 381mm
Centre to End (Branch): 330mm
Schedule: XS
Weight: 214.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE 20 / S20 A234 WPB EQUAL TEE
Outside Diameter (OD): 558.8mm
Wall Thickness: 8.53mm
Centre to End: 419.0mm
Schedule: SCH20
Weight: 220.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 558.8mm
Wall Thickness: 9.52mm
Centre to Face: 559.0mm
Schedule: STD
Weight: 86.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 558.8mm
Wall Thickness: 12.7mm
Centre to Face: 559.0mm
Schedule: XS
Weight: 117.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE STD A234 WPB EQUAL TEE
Outside Diameter (OD): 558.8mm
Wall Thickness: 9.52mm
Centre to End: 419.0mm
Schedule: STD
Weight: 198.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE STD A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 558.8mm
Wall Thickness: 9.52mm
Centre to Face: 343.0mm
Schedule: STD
Weight: 97.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 558.8mm
Wall Thickness: 9.52mm
Centre to Face: 838.0mm
Schedule: STD
Weight: 174.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE XS A234 WPB EQUAL TEE
Outside Diameter (OD): 558.8mm
Wall Thickness: 12.7mm
Centre to End: 419.0mm
Schedule: XS
Weight: 248.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN550 x DN500 (22 x 20" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE
Outside Diameter (OD): 559 x 508mm
Wall Thickness (Run x Branch): 9.53 x 9.53mm
Centre to End (Run): 419mm
Centre to End (Branch): 381mm
Schedule: STD
Weight: 209.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN550 x DN500 (22 x 20" NB) SCHEDULE 80 / XS A234 WPB REDUCING TEE
Outside Diameter (OD): 559 x 508mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 419mm
Centre to End (Branch): 381mm
Schedule: XS
Weight: 260.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN600 (24 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Hub height (X): 701.5mm
Length through hub (A): 609.6mm
Bolt circle diameter (K): 692.1mm
Overall height (Y): 168.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 692.1mm
Number of bolt holes: 24
Bolt hole diameter: 41.1mm
Approx. weight: 238.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 812.8mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 749.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 615.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 1168.4mm
Flange thickness (C): 203.2mm
Pitch circle diameter (K): 990.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA1500 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 1168.4mm (O)
Flange thickness: 203.2mm (C)
Flange hub height: 127.0mm (Y)
Pitch Circle Diameter (PCD): 990.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 91.9mm diameter
Bore Diameter: 615.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 914.4mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 812.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 41.1mm diameter
Bore Diameter: 615.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 939.8mm
Flange thickness (C): 101.6mm
Pitch circle diameter (K): 838.2mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA600 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 939.8mm (O)
Flange thickness: 101.6mm (C)
Flange hub height: 139.7mm (Y)
Pitch Circle Diameter (PCD): 838.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 50.8mm diameter
Bore Diameter: 615.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN600 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10 or PN16 (must be specified at time of order)

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£10124.61 each
List Price – Sign in to view Trade Prices 10124.61 GBP
DN600 (24" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 780mm
Drilling (No. x Bolt Holes x L): 20 x M27 x 30mm
Pitch circle diameter (K): 725mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 840mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 55mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£885.00 each
List Price – Sign in to view Trade Prices 885.0 GBP
DN600 (24" NB) PN16 LUGGED & TAPPED GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN600 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range
£13731.42 each
List Price – Sign in to view Trade Prices 13731.42 GBP
DN600 (24" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 845mm
Drilling (No. x Bolt Hole x L): 20 x M36 x 39mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 68mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 675mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE STD A234 WPB CAP
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.52mm
Length: 431.9mm
Schedule: STD
Weight: 46.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE XS A234 WPB CAP
Outside Diameter (OD): 609.6mm
Wall Thickness: 12.7mm
Length: 431.9mm
Schedule: XS
Weight: 66.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 20 / S20 A234 WPB EQUAL TEE
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.53mm
Centre to End: 431.9mm
Schedule: SCH20
Weight: 240.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 20 A234 WPB CAP
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.53mm
Length: 431.9mm
Schedule: SCH20
Weight: 46.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 610mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 141.12 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Hub length (X): 663.4mm
Neck height (A): 609.6mm
Pitch circle diameter (K): 749.3mm
Hub base diameter (Y): 152.4mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.52mm
Centre to Face: 609.6mm
Schedule: STD
Weight: 115.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£747.57 each
List Price – Sign in to view Trade Prices 747.57 GBP
DN600 (24" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 610mm
Wall Thickness (WT): 17.48mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 255.43 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Hub height (X): 701.5mm
Length through hub (A): 609.6mm
Bolt circle diameter (K): 692.1mm
Overall height (Y): 168.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 692.1mm
Number of bolt holes: 24
Bolt hole diameter: 41.1mm
Approx. weight: 238.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 609.6mm
Wall Thickness: 12.7mm
Centre to Face: 609.6mm
Schedule: XS
Weight: 154.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE STD A234 WPB EQUAL TEE
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.52mm
Centre to End: 431.9mm
Schedule: STD
Weight: 223.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£1410.18 each
List Price – Sign in to view Trade Prices 1410.18 GBP
DN600 (24" NB) SCHEDULE STD A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.52mm
Centre to Face: 381.0mm
Schedule: STD
Weight: 112.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£701.25 each
List Price – Sign in to view Trade Prices 701.25 GBP
DN600 (24" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.52mm
Centre to Face: 914.0mm
Schedule: STD
Weight: 203.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£926.85 each
List Price – Sign in to view Trade Prices 926.85 GBP
DN600 (24" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 610mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 141.12kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE XS A234 WPB EQUAL TEE
Outside Diameter (OD): 609.6mm
Wall Thickness: 12.7mm
Centre to End: 431.9mm
Schedule: XS
Weight: 275.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN600 PN10 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 780mm (D)
Flange inside diameter: 613.5mm (B1)
Flange thickness (C2): 40mm
Pitch Circle Diameter (PCD): 725mm (K)
Hub height: 75mm (H1)
Neck diameter: 658mm (N2)
Raised Face Diameter: 685mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 20 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 780mm (D)
PCD: 725mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£218.55 each
List Price – Sign in to view Trade Prices 218.55 GBP
DN600 PN16 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 840mm (D)
Flange inside diameter: 616.5mm (B1)
Flange thickness (C2): 40mm
Pitch Circle Diameter (PCD): 770mm (K)
Hub height: 83mm (H1)
Neck diameter: 658mm (N2)
Raised Face Diameter: 725mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 20 off 36.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£383.70 each
List Price – Sign in to view Trade Prices 383.7 GBP
DN600 PN25 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 845mm (D)
Flange inside diameter: 616.5mm (B1)
Flange thickness (C2): 48mm
Pitch Circle Diameter (PCD): 770mm (K)
Hub height: 100mm (H1)
Neck diameter: 684mm (N2)
Raised Face Diameter: 720mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 20 off 39mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 845mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 39mm diameter (L)
Flange Thickness: 68mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 890mm
Drilling (No. x Bolt Holes x L): 20 x M36 x 48mm
Pitch circle diameter (K): 795mm
Flange thickness (C4): 72mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN40 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 890mm (D)
Flange inside diameter: 616.5mm (B1)
Flange thickness (C2): 72mm
Pitch Circle Diameter (PCD): 795mm (K)
Hub height: 100mm (H1)
Neck diameter: 686mm (N2)
Raised Face Diameter: 685mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 24 off 48mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 x DN550 (24 x 22" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE
Outside Diameter (OD): 610 x 559mm
Wall Thickness (Run x Branch): 9.53 x 9.53mm
Centre to End (Run): 432mm
Centre to End (Branch): 400mm
Schedule: STD
Weight: 237.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN600 x DN550 (24 x 22" NB) SCHEDULE 80 / XS A234 WPB REDUCING TEE
Outside Diameter (OD): 610 x 559mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 432mm
Centre to End (Branch): 400mm
Schedule: XS
Weight: 300.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE 20 / S20 A234 WPB EQUAL TEE
Outside Diameter (OD): 660.4mm
Wall Thickness: 12.7mm
Centre to End: 495.3mm
Schedule: SCH20
Weight: 308.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 9.52mm
Centre to Face: 660.4mm
Schedule: STD
Weight: 136.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 12.7mm
Centre to Face: 660.4mm
Schedule: XS
Weight: 183.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE STD A234 WPB EQUAL TEE
Outside Diameter (OD): 660.4mm
Wall Thickness: 9.52mm
Centre to End: 495.3mm
Schedule: STD
Weight: 287.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE STD A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 9.52mm
Centre to Face: 406.0mm
Schedule: STD
Weight: 152.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 9.52mm
Centre to Face: 991.0mm
Schedule: STD
Weight: 306.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE XS A234 WPB EQUAL TEE
Outside Diameter (OD): 660.4mm
Wall Thickness: 12.7mm
Centre to End: 495.3mm
Schedule: XS
Weight: 360.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN650 x DN600 (26 x 24" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE
Outside Diameter (OD): 660 x 610mm
Wall Thickness (Run x Branch): 9.53 x 9.53mm
Centre to End (Run): 495mm
Centre to End (Branch): 457mm
Schedule: STD
Weight: 279.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN650 x DN600 (26 x 24" NB) SCHEDULE 80 / XS A234 WPB REDUCING TEE
Outside Diameter (OD): 660 x 610mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 495mm
Centre to End (Branch): 457mm
Schedule: XS
Weight: 346.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
