Nominal Bore

Nominal Bore Carbon Steel Pipe – A106, API 5L, EN10255

Integraflow supplies nominal bore carbon steel pipe in seamless and welded form to A106 Grade B, API 5L, and EN10255 specifications, with wall thicknesses including Schedule 20, 40, 80,160 and STD/XS/XXS, available in black varnished, self-colour, and galvanised finishes, suitable for industrial, mechanical, and pressure system applications.

List 200
Sort By: Name (A-Z)

Nominal Bore

DN400 X DN250 (16" X 10" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN400 X DN300 (16" X 12" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
£228.24 each
List Price – Sign in to view Trade Prices 228.24 GBP
DN400 X DN300 (16" X 12" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): 406 x 324mm
Wall Thickness: 12.70mm
Length: 356.0mm
Contact us for pricing 0.0 GBP
DN400 X DN300 (16" X 12" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN400 X DN300 (16" X 12" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN400 X DN350 (16" X 14" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
£211.05 each
List Price – Sign in to view Trade Prices 211.05 GBP
DN400 X DN350 (16" X 14" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN400 X DN350 (16" X 14" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN400 X DN350 (16" X 14" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN400 x DN350 (16 x 14" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE
Outside Diameter (OD): 406 x 356mm
Wall Thickness (Run x Branch): 9.53 x 9.53mm
Centre to End (Run): 305mm
Centre to End (Branch): 305mm
Schedule: STD
Weight: 106.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN400 x DN350 (16 x 14" NB) SCHEDULE 80 / XS A234 WPB REDUCING TEE
Outside Diameter (OD): 406 x 356mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 305mm
Centre to End (Branch): 305mm
Schedule: XS
Weight: 160.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN450 (18 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Hub height (X): 533.4mm
Length through hub (A): 457.2mm
Bolt circle diameter (K): 495.3mm
Overall height (Y): 158.7mm
Raised face thickness (RF): 1.5mm
Bore (B): 533.4mm
Number of bolt holes: 24
Bolt hole diameter: 35.0mm
Approx. weight: 134.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 635.0mm (O)
Flange thickness: 39.6mm (C)
Flange hub height: 68.3mm (Y)
Pitch Circle Diameter (PCD): 577.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 31.7mm diameter
Bore Diameter: 461.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 914.4mm
Flange thickness (C): 162.0mm
Pitch circle diameter (K): 774.7mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA1500 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 914.4mm (O)
Flange thickness: 162.0mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 774.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 73.1mm diameter
Bore Diameter: 461.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA300 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 711.2mm (O)
Flange thickness: 60.4mm (C)
Flange hub height: 88.9mm (Y)
Pitch Circle Diameter (PCD): 628.6mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 461.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 742.9mm
Flange thickness (C): 82.5mm
Pitch circle diameter (K): 654.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA600 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 742.9mm (O)
Flange thickness: 82.5mm (C)
Flange hub height: 117.3mm (Y)
Pitch Circle Diameter (PCD): 654.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 44.4mm diameter
Bore Diameter: 461.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN450 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10 or PN16 (must be specified at time of order)

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£4527.96 each
List Price – Sign in to view Trade Prices 4527.96 GBP

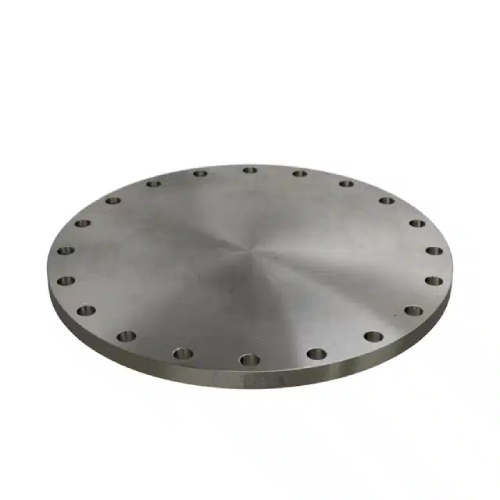

DN450 (18" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 615mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 656mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 640mm
Drilling (No. x Bolt Hole x L): 20 x M27 x 30mm
Pitch circle diameter (K): 585mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£405.00 each
List Price – Sign in to view Trade Prices 405.0 GBP
DN450 (18" NB) PN16 LUGGED & TAPPED GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN450 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range
£6057.99 each
List Price – Sign in to view Trade Prices 6057.99 GBP
DN450 (18" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 670mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 600mm
Flange thickness (C1): 54mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C4)
Diameter of Flat Face (RF): 520mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 20 / S20 A234 WPB EQUAL TEE
Outside Diameter (OD): 457.0mm
Wall Thickness: 7.92mm
Centre to End: 342.9mm
Schedule: SCH20
Weight: 128.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 20 / SCH20 A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 7.92mm
Centre to Face: 286.0mm
Schedule: SCH20
Weight: 49.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 7.92mm
Centre to Face: 686.0mm
Schedule: SCH20
Weight: 99.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 20 A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 7.92mm
Centre to Face: 457.0mm
Schedule: SCH20
Weight: 66.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 87.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N
Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Hub length (X): 504.7mm
Neck height (A): 577.8mm
Pitch circle diameter (K): 577.8mm
Hub base diameter (Y): 139.7mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 9.52mm
Centre to Face: 457.0mm
Schedule: STD
Weight: 56.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£392.70 each
List Price – Sign in to view Trade Prices 392.7 GBP
DN450 (18" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 14.27mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 155.81 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Hub height (X): 533.4mm
Length through hub (A): 457.2mm
Bolt circle diameter (K): 495.3mm
Overall height (Y): 158.7mm
Raised face thickness (RF): 1.5mm
Bore (B): 533.4mm
Number of bolt holes: 24
Bolt hole diameter: 35.0mm
Approx. weight: 134.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 12.7mm
Centre to Face: 457.0mm
Schedule: XS
Weight: 75.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE STD A234 WPB EQUAL TEE
Outside Diameter (OD): 457.0mm
Wall Thickness: 9.52mm
Centre to End: 342.9mm
Schedule: STD
Weight: 127.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£1027.92 each
List Price – Sign in to view Trade Prices 1027.92 GBP
DN450 (18" NB) SCHEDULE STD A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 9.52mm
Centre to Face: 286.0mm
Schedule: STD
Weight: 56.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£373.74 each
List Price – Sign in to view Trade Prices 373.74 GBP
DN450 (18" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 9.52mm
Centre to Face: 686.0mm
Schedule: STD
Weight: 113.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£608.70 each
List Price – Sign in to view Trade Prices 608.7 GBP
DN450 (18" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 105.17kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE XS A234 WPB EQUAL TEE
Outside Diameter (OD): 457.0mm
Wall Thickness: 12.7mm
Centre to End: 342.9mm
Schedule: XS
Weight: 159.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN450 (18" NB) U-BOLT C.W NUTS BZP
Suits an outside diameter (OD) of: 457mm
Material: MS Zinc Plated (BZP)
Thread: M16
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN450 (18" NB) U-BOLT C.W NUTS GALVANISED
Suits an outside diameter (OD) of: 457mm
Material: Mild Steel (Galvanised))
Thread: M16
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN450 PN10 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 615mm (D)
Flange inside diameter: 462.0mm (B1)
Flange thickness (C2): 36mm
Pitch Circle Diameter (PCD): 565mm (K)
Hub height: 63mm (H1)
Neck diameter: 502mm (N2)
Raised Face Diameter: 532mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 615mm (D)
PCD: 565mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£135.21 each
List Price – Sign in to view Trade Prices 135.21 GBP
DN450 PN16 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 640mm (D)
Flange inside diameter: 462.0mm (B1)
Flange thickness (C2): 34mm
Pitch Circle Diameter (PCD): 585mm (K)
Hub height: 68mm (H1)
Neck diameter: 502mm (N2)
Raised Face Diameter: 550mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 30.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 640mm (D)
PCD: 585mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£165.00 each
List Price – Sign in to view Trade Prices 165.0 GBP
DN450 PN25 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 670mm (D)
Flange inside diameter: 462.0mm (B1)
Flange thickness (C2): 46mm
Pitch Circle Diameter (PCD): 600mm (K)
Hub height: 84mm (H1)
Neck diameter: 520mm (N2)
Raised Face Diameter: 555mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 36mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 670mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 54mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 685mm
Drilling (No. x Bolt Holes x L): 20 x M39 x 39mm
Pitch circle diameter (K): 610mm
Flange thickness (C4): 57mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 PN40 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 715mm (D)
Flange inside diameter: 462.0mm (B1)
Flange thickness (C2): 57mm
Pitch Circle Diameter (PCD): 650mm (K)
Hub height: 84mm (H1)
Neck diameter: 532mm (N2)
Raised Face Diameter: 600mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 39mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 X DN200 (18" X 8" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN200 (18" X 8" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN200 (18" X 8" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN200 (18" X 8" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN250 (18" X 10" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
£307.89 each
List Price – Sign in to view Trade Prices 307.89 GBP
DN450 X DN250 (18" X 10" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN250 (18" X 10" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN250 (18" X 10" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN300 (18" X 12" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
£297.45 each
List Price – Sign in to view Trade Prices 297.45 GBP
DN450 X DN300 (18" X 12" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN300 (18" X 12" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN300 (18" X 12" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN350 (18" X 14" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN350 (18" X 14" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN350 (18" X 14" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN350 (18" X 14" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN400 (18" X 16" NB) SCHEDULE STD A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
£244.17 each
List Price – Sign in to view Trade Prices 244.17 GBP
DN450 X DN400 (18" X 16" NB) SCHEDULE STD A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN400 (18" X 16" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 X DN400 (18" X 16" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN450 x DN400 (18 x 16" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE
Outside Diameter (OD): 457 x 406mm
Wall Thickness (Run x Branch): 9.53 x 9.53mm
Centre to End (Run): 343mm
Centre to End (Branch): 305mm
Schedule: STD
Weight: 135.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN450 x DN400 (18 x 16" NB) SCHEDULE 80 / XS A234 WPB REDUCING TEE
Outside Diameter (OD): 457 x 406mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 343mm
Centre to End (Branch): 305mm
Schedule: XS
Weight: 190.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN500 (20 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Hub height (X): 587.2mm
Length through hub (A): 508.0mm
Bolt circle diameter (K): 520.7mm
Overall height (Y): 162.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 584.2mm
Number of bolt holes: 24
Bolt hole diameter: 35.0mm
Approx. weight: 171.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 698.5mm (O)
Flange thickness: 42.9mm (C)
Flange hub height: 73.1mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 513.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 984.2mm
Flange thickness (C): 177.8mm
Pitch circle diameter (K): 831.8mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA1500 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 984.2mm (O)
Flange thickness: 177.8mm (C)
Flange hub height: 112.0mm (Y)
Pitch Circle Diameter (PCD): 831.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 79.2mm diameter
Bore Diameter: 513.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA300 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 774.7mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 95.2mm (Y)
Pitch Circle Diameter (PCD): 685.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 513.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 812.8mm
Flange thickness (C): 88.9mm
Pitch circle diameter (K): 723.9mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA600 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 812.8mm (O)
Flange thickness: 88.9mm (C)
Flange hub height: 127.0mm (Y)
Pitch Circle Diameter (PCD): 723.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 44.4mm diameter
Bore Diameter: 513.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN500 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10 or PN16 (must be specified at time of order)

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£6102.87 each
List Price – Sign in to view Trade Prices 6102.87 GBP
DN500 (20" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 670mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 620mm
Flange thickness (C4): 38mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 715mm
Drilling (No. x Bolt Hole x L): 20 x M30 x 33mm
Pitch circle diameter (K): 650mm
Flange thickness (C1): 50mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£510.00 each
List Price – Sign in to view Trade Prices 510.0 GBP
DN500 (20" NB) PN16 LUGGED & TAPPED GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN500 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range
£8238.87 each
List Price – Sign in to view Trade Prices 8238.87 GBP
DN500 (20" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 730mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 660mm
Flange thickness (C1): 58mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 570mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE STD A234 WPB CAP
Outside Diameter (OD): 508.0mm
Wall Thickness: 9.52mm
Length: 381.0mm
Schedule: STD
Weight: 32.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE XS A234 WPB CAP
Outside Diameter (OD): 508.0mm
Wall Thickness: 12.7mm
Length: 381.0mm
Schedule: XS
Weight: 42.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 20 / S20 A234 WPB EQUAL TEE
Outside Diameter (OD): 508.0mm
Wall Thickness: 9.53mm
Centre to End: 381.0mm
Schedule: SCH20
Weight: 168.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 20 A234 WPB CAP
Outside Diameter (OD): 508.0mm
Wall Thickness: 9.53mm
Length: 381.0mm
Schedule: SCH20
Weight: 32.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 508mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 117.15 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N
Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Hub length (X): 558.8mm
Neck height (A): 635.0mm
Pitch circle diameter (K): 635.0mm
Hub base diameter (Y): 144.5mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 508.0mm
Wall Thickness: 9.52mm
Centre to Face: 508.0mm
Schedule: STD
Weight: 68.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£559.05 each
List Price – Sign in to view Trade Prices 559.05 GBP
DN500 (20" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 508mm
Wall Thickness (WT): 15.09mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 183.43 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Hub height (X): 587.2mm
Length through hub (A): 508.0mm
Bolt circle diameter (K): 520.7mm
Overall height (Y): 162.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 584.2mm
Number of bolt holes: 24
Bolt hole diameter: 35.0mm
Approx. weight: 171.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 508.0mm
Wall Thickness: 12.7mm
Centre to Face: 508.0mm
Schedule: XS
Weight: 92.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
