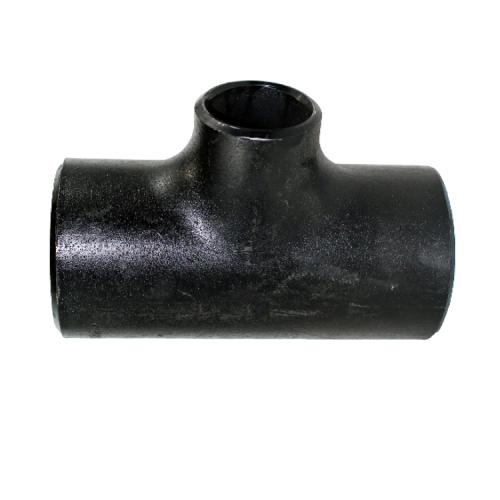

Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 6.02 x 5.49mm
Centre to End (Run): 105mm
Centre to End (Branch): 95mm
Schedule: STD
Weight: 6.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 8.56 x 7.62mm
Centre to End (Run): 105mm
Centre to End (Branch): 95mm
Schedule: XS
Weight: 7.65kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Suits Flange Size: DN125 (5" NB) PN16
Valve Type: Y Type Strainer
Body Material: EN GJL 250 Epoxy Coated Ductile Iron
Gasket Material: Graphite
Screen: 304 Stainless Steel
Operation: Automatic
Pressure Rating: PN16
Temperature Range: -10°C to +300°C

Face to Face: 400mm Overall Length

Part of our Y Type Strainers Range

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Hub height (X): 177.8mm
Length through hub (A): 141.2mm
Bolt circle diameter (K): 234.9mm
Overall height (Y): 98.5mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 15.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 16.6kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 16.6kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 16.6kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 17.1kg
Construction: Welded
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 17.1kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

5" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 200mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Outside diameter (O): 254.0mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 163.6mm
Pitch circle diameter (K): 215.9mm
Raised face diameter (Y): 36.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 185.6mm
Bore diameter (Q): 36.5mm
Hub thickness (T): 22.3mm
Number of bolt holes: 8
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 254.0mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 163.6mm
Pitch circle diameter (K): 215.9mm
Raised face diameter (Y): 36.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 185.6mm
Bore diameter (Q): 36.5mm
Hub thickness (T): 22.3mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 254.0mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 374.6mm
Flange thickness (C): 73.1mm
Pitch circle diameter (K): 293.1mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 374.6mm (O)
Flange thickness: 73.1mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 41.1mm diameter
Bore Diameter: 143.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 279.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 50.8mm (Y)
Pitch Circle Diameter (PCD): 234.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 330.2mm
Flange thickness (C): 44.4mm
Pitch circle diameter (K): 266.7mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 330.2mm (O)
Flange thickness: 44.4mm (C)
Flange hub height: 60.4mm (Y)
Pitch Circle Diameter (PCD): 266.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 28.4mm diameter
Bore Diameter: 143.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 17.9kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 17.9kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 17.9kg
Construction: Welded
Finish: Self Colour
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 17.9kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 139.7mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 17.9kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Suits an outside diameter (OD) of: 139.7mm
Boss Connection: M12
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated

Suits Flange Size: DN125 (5" NB) (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Flange OD (D): 250mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 210mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 178mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

5" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 200mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

5" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16

Face to face: 200mm

Suitable for gas service.
EN331 approved design.

Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.

Part of our Isolation and Valves Range

Flanged to suit: 5" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 200mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: DN125 (5" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 400mm
Temperature Range: -10°C to 300°C
Certification: Available on request

Flanged to suit: 5" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 254mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 5" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 254mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits Flange Size: DN125 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Flange outside diameter: 250mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 210mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 250mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 210mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 141.3mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 210mm
Flange Diameter: 250mm
Flange Thickness: 22mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Flanged to suit: DN125 (5" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN40
Face to Face: 400mm
Temperature Range: -50°C to 400°C
Certification: Available on request

Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C4)
Diameter of Flat Face (RF): 178mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 240mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 200mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 240mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 200mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to End: 123.8mm
Schedule: STD
Weight: 8.98kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 79.4mm
Schedule: STD
Weight: 3.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 127.0mm
Schedule: STD
Weight: 4.42kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Hub length (X): 163.5mm
Neck height (A): 141.2mm
Pitch circle diameter (K): 215.9mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Hub height (X): 177.8mm
Length through hub (A): 141.2mm
Bolt circle diameter (K): 234.9mm
Overall height (Y): 98.5mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 15.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 190.0mm
Schedule: STD
Weight: 6.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness (WT): 6.55mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 21.77 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to End: 123.8mm
Schedule: XS
Weight: 12.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 79.4mm
Schedule: XS
Weight: 5.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 190.0mm
Schedule: XS
Weight: 10.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 127.0mm
Schedule: XS
Weight: 6.89kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Hub length (X): 163.5mm
Neck height (A): 141.2mm
Pitch circle diameter (K): 215.9mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 141.3mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 30.97 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 141.3mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 80 / Extra Strong
Centre to Face: 124mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Tee Piece, Equal Tee

Suits an outside diameter (OD) of: 139.7mm
Material: MS Zinc Plated (BZP)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 141.3mm
Material: MS Zinc Plated (BZP)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 139.7mm
Material: Mild Steel (Galvanised))
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 141.3mm
Material: Mild Steel (Galvanised))
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 139.7mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated

Flange outside diameter: 250mm (D)
Flange inside diameter: 141.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 210mm (K)
Hub height: 44mm (H1)
Neck diameter: 168mm (N2)
Raised Face Diameter: 188mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 270mm (D)
Flange inside diameter: 141.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 220mm (K)
Hub height: 48mm (H1)
Neck diameter: 170mm (N2)
Raised Face Diameter: 188mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 270mm (D)
PCD: 220mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 240mm (D)
Flange inside diameter: 141.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 200mm (K)
Hub height: 44mm (H1)
Neck diameter: 160mm (N2)
Raised Face Diameter: 202mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side One suits an outside diameter (OD) of: 141.3mm
Side One wall thickness (WT): 9.53mm

Side Two suits an outside diameter (OD) of: 114.3mm
Side Two wall thickness (WT): 8.56mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Eccentric
Construction: Seamless
Overall Length: 127mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Ecc Reducer, Eccred, Eccentric

Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
End to End Length: 127mm
Schedule: SCHEDULE 40 / STD
Weight: 2.72kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Reducer, Concentric, Weldable

Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: mm

Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm

Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: mm

Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm

Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: mm

Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm

Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: mm

Outside Diameter (OD): 141 X 102mm
Wall Thickness: 6.55 X 5.74mm
Length: 127mm

Outside Diameter (OD): 141 X 102mm
Wall Thickness: 6.55 X 5.74mm
Length: mm

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 19.7kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 19.7kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 19.7kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 20.4kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 20.4kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Suits an outside diameter (OD) of: 165.1mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 22mm
Certification Available: 2.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 2.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M24 Bolts
PCD: 250mm
Flange Diameter: 300mm
Flange Thickness: 30mm
Certification Available: 2.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range

6" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 210mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Outside diameter (O): 279.4mm
Hub diameter at base (C): 25.4mm
Length through hub (X): 192.0mm
Pitch circle diameter (K): 241.3mm
Raised face diameter (Y): 39.6mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 215.9mm
Bore diameter (Q): 39.6mm
Hub thickness (T): 22.3mm
Number of bolt holes: 8
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 279.4mm
Hub diameter at base (C): 25.4mm
Length through hub (X): 192.0mm
Pitch circle diameter (K): 241.3mm
Raised face diameter (Y): 39.6mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 215.9mm
Bore diameter (Q): 39.6mm
Hub thickness (T): 22.3mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 279.4mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 39.6mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 279.4mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 158.7mm
Pitch circle diameter (K): 234.9mm
Raised face diameter (Y): 36.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 215.9mm
Bore length (B): 157.5mm
Bore diameter (D): 28.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 393.7mm
Flange thickness (C): 82.5mm
Pitch circle diameter (K): 317.5mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 393.7mm (O)
Flange thickness: 82.5mm (C)
Flange hub height: 66.3mm (Y)
Pitch Circle Diameter (PCD): 317.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 38.1mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 317.5mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 52.3mm (Y)
Pitch Circle Diameter (PCD): 269.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 355.6mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 292.1mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 355.6mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
