Outside Diameter (OD): 219.1mm
Wall Thickness: 6.3mm
Length: 177.8mm
Schedule: SCH20
Weight: 4.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 219.1mm
Wall Thickness: 6.35mm
Centre to Face: 305.0mm
Schedule: SCH20
Weight: 16.74kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 6.35mm
Centre to Face: 203.0mm
Schedule: SCH20
Weight: 11.16kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 33.2 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

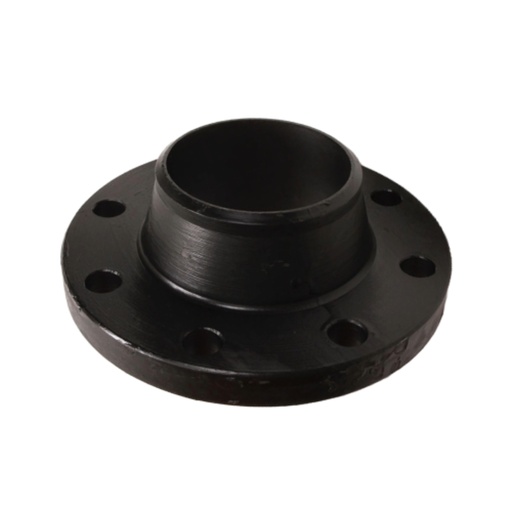

Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Length: 177.8mm
Schedule: STD
Weight: 5.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: STD
Weight: 24.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 127.0mm
Schedule: STD
Weight: 10.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: STD
Weight: 13.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: STD
Weight: 20.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 8.18mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 42.55 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 8.18mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 42.55 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Length: 177.8mm
Schedule: XS
Weight: 7.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to End: 177.8mm
Schedule: XS
Weight: 34.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 127.0mm
Schedule: XS
Weight: 15.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 305.0mm
Schedule: XS
Weight: 30.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 203.0mm
Schedule: XS
Weight: 20.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 64.64 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness: 6.3mm
Centre to End: 177.8mm
Schedule: SCH20
Weight: 23.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Suits an outside diameter (OD) of: 219.1mm
Material: MS Zinc Plated (BZP)
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 219.1mm
Material: Mild Steel (Galvanised))
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 219.1mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

Flange outside diameter: 340mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 295mm (K)
Hub height: 44mm (H1)
Neck diameter: 246mm (N2)
Raised Face Diameter: 268mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 340mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 295mm (K)
Hub height: 44mm (H1)
Neck diameter: 246mm (N2)
Raised Face Diameter: 268mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 22.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 360mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 30mm
Pitch Circle Diameter (PCD): 310mm (K)
Hub height: 52mm (H1)
Neck diameter: 256mm (N2)
Raised Face Diameter: 278mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 375mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 34mm
Pitch Circle Diameter (PCD): 320mm (K)
Hub height: 60mm (H1)
Neck diameter: 260mm (N2)
Raised Face Diameter: 285mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 320mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 280mm (K)
Hub height: 44mm (H1)
Neck diameter: 240mm (N2)
Raised Face Diameter: 312mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side One suits an outside diameter (OD) of: 219.1mm
Side One wall thickness (WT): 8.18mm

Side Two suits an outside diameter (OD) of: 114.3mm
Side Two wall thickness (WT): 6.02mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 152mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 219.1mm
Side One wall thickness (WT): 8.18mm

Side Two suits an outside diameter (OD) of: 168.3mm
Side Two wall thickness (WT): 7.11mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 152mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: mm

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 152mm
Schedule: STD
Weight: 27.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 12.70 x 10.97mm
Centre to End (Run): 178mm
Centre to End (Branch): 152mm
Schedule: XS
Weight: 33.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 584.2mm
Flange thickness (C): 107.9mm
Pitch circle diameter (K): 482.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Flange hub height: 82.6mm (Y)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 508.0mm
Flange thickness (C): 69.9mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 508.0mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 85.8mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 273mm
Boss Connection: M16
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

Suits Flange Size: DN250 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

10" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 450mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F5 (8”).
Pressure rating: PN16.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Flanged to suit: 10" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 250mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: DN250 (10" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 400mm
Temperature Range: -10°C to 300°C
Certification: Available on request

Flanged to suit: 10" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 10" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 330mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 10" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 330mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits Flange Size: DN250 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 312mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 273.9mm
Wall Thickness: 12.7mm
Length: 216.0mm
Schedule: XS
Weight: 11.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 273.9mm
Wall Thickness: 6.35mm
Length: 216.0mm
Schedule: SCH20
Weight: 6.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 273.9mm
Wall Thickness: 6.35mm
Centre to Face: 381.0mm
Schedule: SCH20
Weight: 26.22kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 273.9mm
Wall Thickness: 6.35mm
Centre to Face: 254.0mm
Schedule: SCH20
Weight: 17.48kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 273mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 41.76 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Hub length (X): 304.8mm
Neck height (A): 273.0mm
Pitch circle diameter (K): 361.9mm
Hub base diameter (Y): 101.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Length: 216.0mm
Schedule: STD
Weight: 9.58kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to End: 216.0mm
Schedule: STD
Weight: 41.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 159.0mm
Schedule: STD
Weight: 18.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 254.0mm
Schedule: STD
Weight: 18.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Hub length (X): 304.8mm
Neck height (A): 273.0mm
Pitch circle diameter (K): 361.9mm
Hub base diameter (Y): 101.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 9.27mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 60.31 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 9.27mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 60.29 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 273.9mm
Wall Thickness: 12.7mm
Centre to Face: 254.0mm
Schedule: XS
Weight: 24.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 273mm
Wall Thickness (WT): 15.09mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (True SCH80) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 96 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 273.9mm
Wall Thickness: 6.35mm
Centre to End: 216.0mm
Schedule: SCH20
Weight: 34.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 273mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (True SCH80) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 81.53 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 273.9mm
Wall Thickness: 12.7mm
Centre to End: 216.0mm
Schedule: XS
Weight: 53.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 381.0mm
Schedule: STD
Weight: 36.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Suits an outside diameter (OD) of: 273mm
Material: MS Zinc Plated (BZP)
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 273mm
Material: Mild Steel (Galvanised))
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 273mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

Flange outside diameter: 395mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 350mm (K)
Hub height: 46mm (H1)
Neck diameter: 298mm (N2)
Raised Face Diameter: 320mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 395mm (D)
PCD: 350mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 405mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 355mm (K)
Hub height: 46mm (H1)
Neck diameter: 298mm (N2)
Raised Face Diameter: 320mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 26.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 405mm (D)
PCD: 355mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 29mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 425mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 32mm
Pitch Circle Diameter (PCD): 370mm (K)
Hub height: 60mm (H1)
Neck diameter: 310mm (N2)
Raised Face Diameter: 335mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 425mm (D)
PCD: 370mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 450mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 33mm
Pitch circle diameter (K): 385mm
Flange thickness (C4): 38mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 450mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 38mm
Pitch Circle Diameter (PCD): 385mm (K)
Hub height: 60mm (H1)
Neck diameter: 312mm (N2)
Raised Face Diameter: 345mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 33mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 450mm (D)
PCD: 385mm (K)
Bolt Holes: 12 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 375mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 335mm (K)
Hub height: 44mm (H1)
Neck diameter: 295mm (N2)
Raised Face Diameter: 362mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
