Outside Diameter (OD): 273 X 114mm
Wall Thickness: 9.27 X 6.02mm
Length: 178mm

Outside Diameter (OD): 273 X 114mm
Wall Thickness: 9.27 X 6.02mm
Length: mm

Outside Diameter (OD): 273 X 141mm
Wall Thickness: 9.27 X 6.55mm
Length: 178mm

Outside Diameter (OD): 273 X 141mm
Wall Thickness: 9.27 X 6.55mm
Length: mm

Outside Diameter (OD): 273 X 168mm
Wall Thickness: 9.27 X 7.11mm
Length: 178mm

Outside Diameter (OD): 273 X 168mm
Wall Thickness: 9.27 X 7.11mm
Length: mm

Outside Diameter (OD): 273 X 219mm
Wall Thickness: 9.27 X 8.18mm
Length: 178mm

Outside Diameter (OD): 273 X 219mm
Wall Thickness: 9.27 X 8.18mm
Length: mm

Outside Diameter (OD): 273 x 219mm
Wall Thickness (Run x Branch): 6.35 x 6.35mm
Centre to End (Run): 216mm
Centre to End (Branch): 190mm
Schedule: SCH20
Weight: 35.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 273 x 219mm
Wall Thickness (Run x Branch): 9.27 x 8.18mm
Centre to End (Run): 216mm
Centre to End (Branch): 190mm
Schedule: STD
Weight: 39.63kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 273 x 219mm
Wall Thickness (Run x Branch): 12.70 x 10.97mm
Centre to End (Run): 216mm
Centre to End (Branch): 190mm
Schedule: XS
Weight: 53.53kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Flange OD (D): 405mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 355mm
Flange thickness (C1): 29mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm

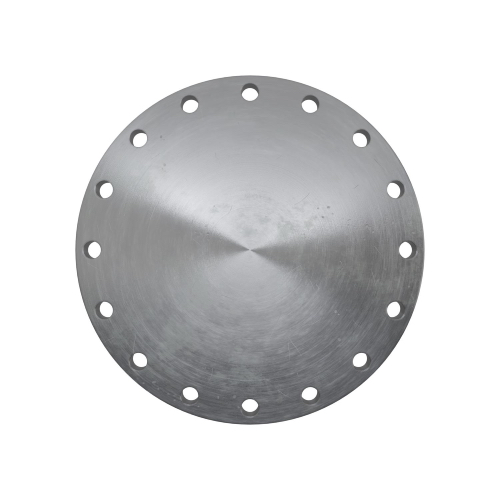

Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 482.6mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 55.6mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 327.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 673.1mm
Flange thickness (C): 123.9mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 673.1mm (O)
Flange thickness: 123.9mm (C)
Flange hub height: 85.6mm (Y)
Pitch Circle Diameter (PCD): 571.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 53.8mm diameter
Bore Diameter: 327.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 520.7mm (O)
Flange thickness: 50.8mm (C)
Flange hub height: 73.1mm (Y)
Pitch Circle Diameter (PCD): 450.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 31.7mm diameter
Bore Diameter: 327.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 558.8mm
Flange thickness (C): 66.5mm
Pitch circle diameter (K): 488.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 558.8mm (O)
Flange thickness: 66.5mm (C)
Flange hub height: 91.9mm (Y)
Pitch Circle Diameter (PCD): 488.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 327.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 323.9mm
Boss Connection: M16
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

Suits Flange Size: DN300 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Flange OD (D): 445mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 400mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 460mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 410mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flanged to suit: 12" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 270mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: DN300 (12" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 850mm
Temperature Range: -10°C to 300°C
Certification: Available on request

Flanged to suit: 12" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 12" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 356mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 12" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 356mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits Flange Size: DN300 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Flat Face (RF): 365mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Length: 254.0mm
Schedule: STD
Weight: 14.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Length: 254.0mm
Schedule: XS
Weight: 17.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to End: 254.0mm
Schedule: SCH20
Weight: 43.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.3mm
Length: 254.0mm
Schedule: SCH20
Weight: 10.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to Face: 305.0mm
Schedule: SCH20
Weight: 41.77kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 49.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Hub length (X): 365.0mm
Neck height (A): 323.8mm
Pitch circle diameter (K): 431.8mm
Hub base diameter (Y): 114.3mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to Face: 305.0mm
Schedule: STD
Weight: 26.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 10.31mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (True SCH40) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 79.73 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 10.31mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 79.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to Face: 305.0mm
Schedule: XS
Weight: 35.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to End: 254.0mm
Schedule: STD
Weight: 59.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to Face: 190.0mm
Schedule: STD
Weight: 26.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to Face: 457.0mm
Schedule: STD
Weight: 53.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI ASME B36.10 / B36.19 EN10217-2
Schedule: Standard Weight
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 73.86 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 73.86 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Hub length (X): 365.0mm
Neck height (A): 323.8mm
Pitch circle diameter (K): 431.8mm
Hub base diameter (Y): 114.3mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B
Standards: ASTM / ANSI Schedule Extra Strong ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 96 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to End: 254.0mm
Schedule: XS
Weight: 75.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Suits an outside diameter (OD) of: 323.8mm
Material: MS Zinc Plated (BZP)
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 323.8mm
Material: Mild Steel (Galvanised))
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 323.9mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

Flange outside diameter: 445mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 395mm (K)
Hub height: 46mm (H1)
Neck diameter: 350mm (N2)
Raised Face Diameter: 370mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 460mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 28mm
Pitch Circle Diameter (PCD): 410mm (K)
Hub height: 46mm (H1)
Neck diameter: 350mm (N2)
Raised Face Diameter: 378mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 26.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 485mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 34mm
Pitch Circle Diameter (PCD): 430mm (K)
Hub height: 67mm (H1)
Neck diameter: 364mm (N2)
Raised Face Diameter: 395mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 515mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 42mm
Pitch Circle Diameter (PCD): 450mm (K)
Hub height: 67mm (H1)
Neck diameter: 380mm (N2)
Raised Face Diameter: 410mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 33mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 515mm (D)
PCD: 450mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 440mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 395mm (K)
Hub height: 44mm (H1)
Neck diameter: 355mm (N2)
Raised Face Diameter: 412mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side One suits an outside diameter (OD) of: 323.9mm
Side One wall thickness (WT): 9.53mm

Side Two suits an outside diameter (OD) of: 168.3mm
Side Two wall thickness (WT): 7.11mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 203mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 324 X 141mm
Wall Thickness: 9.53 X 6.55mm
Length: mm

Outside Diameter (OD): 324 X 141mm
Wall Thickness: 9.53 X 6.55mm
Length: mm

Outside Diameter (OD): 324 X 168mm
Wall Thickness: 9.53 X 7.11mm
Length: 203mm

Outside Diameter (OD): 324 X 168mm
Wall Thickness: 9.53 X 7.11mm
Length: mm

Outside Diameter (OD): 324 X 219mm
Wall Thickness: 9.53 X 8.18mm
Length: mm

Outside Diameter (OD): 324 X 219mm
Wall Thickness: 9.53 X 8.18mm
Length: 203 mm

Outside Diameter (OD): 324 X 273mm
Wall Thickness: 9.53 X 9.27mm
Length: mm

Outside Diameter (OD): 324 X 273mm
Wall Thickness: 9.53 X 9.27mm
Length: mm

Outside Diameter (OD): 324 x 273mm
Wall Thickness (Run x Branch): 9.53 x 9.27mm
Centre to End (Run): 254mm
Centre to End (Branch): 216mm
Schedule: STD
Weight: 63.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 324 x 273mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 254mm
Centre to End (Branch): 216mm
Schedule: XS
Weight: 74.82kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Hub height (X): 425.4mm
Length through hub (A): 355.6mm
Bolt circle diameter (K): 444.5mm
Overall height (Y): 142.7mm
Raised face thickness (RF): 1.5mm
Bore (B): 412.7mm
Number of bolt holes: 20
Bolt hole diameter: 31.7mm
Approx. weight: 88.0kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 533.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 476.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 749.3mm
Flange thickness (C): 133.3mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 749.3mm (O)
Flange thickness: 133.3mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 60.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 514.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 603.2mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 527.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 603.2mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 527.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 38.1mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits Flange Size: DN350 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Flange OD (D): 505mm
Drilling (No. x Bolt Holes x L): 16 x M20 x 22mm
Pitch circle diameter (K): 460mm
Flange thickness (C4): 30mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 520mm
Drilling (No. x Bolt Hole x L): 16 x M24 x 26mm
Pitch circle diameter (K): 470mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Suits Flange Size: DN350 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Flange OD (D): 555mm
Drilling (No. x Bolt Hole x L): 16 x M30 x 33mm
Pitch circle diameter (K): 490mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C4)
Diameter of Flat Face (RF): 415mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 355.6mm
Wall Thickness: 7.92mm
Centre to End: 279.0mm
Schedule: SCH20
Weight: 84.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 355.6mm
Wall Thickness: 7.92mm
Centre to Face: 222.0mm
Schedule: SCH20
Weight: 29.85kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 355.6mm
Wall Thickness: 7.92mm
Centre to Face: 355.6mm
Schedule: SCH20
Weight: 39.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 67.91 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Hub length (X): 400.0mm
Neck height (A): 355.6mm
Pitch circle diameter (K): 476.2mm
Hub base diameter (Y): 127.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 355.6mm
Wall Thickness: 9.52mm
Centre to Face: 355.6mm
Schedule: STD
Weight: 34.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
